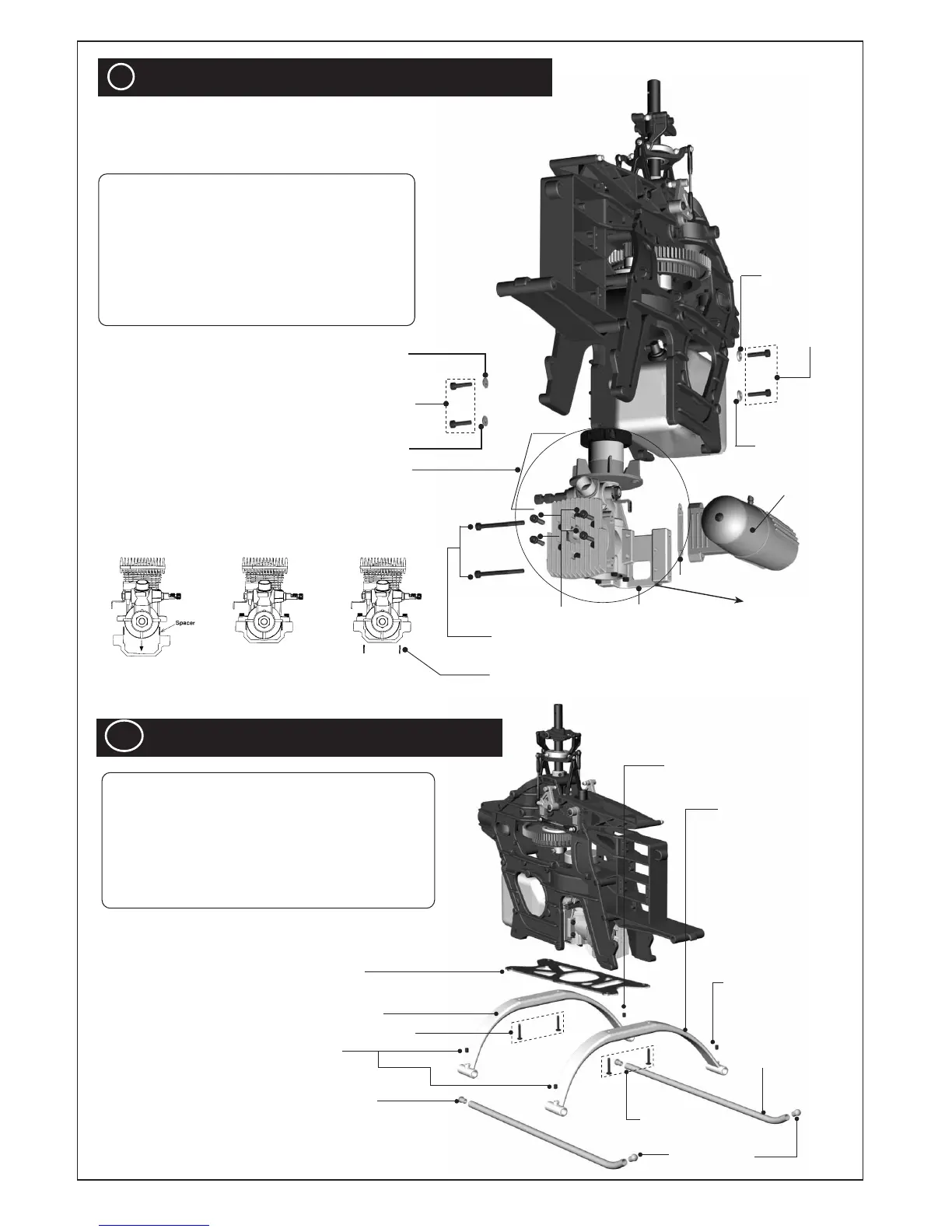

THUNDER TIGER Raptor 50 V2 kit User Manual

(5) BV0172
(6) Engine Ass'y.
(3) BK0087
(1) HMC3-14B
(2) HMC3-35B
Add Blue Locktite
(3) BK0087
Add Blue Locktite
Engine mount
Attachment
(1) HMC3-14B
(1)
(3) BK0087
(3) BK0087
(7) BA1579
HMC3-14B
Add Blue
Locktite
10
(1) HMC3-14B Socket Screw(M3x14)...... 8
(2) HMC3-35B Socket Screw(M3x35)..... 2
(3) BK0087 Flat Washer
........................... 4
(4) BK0144 Engine Mount........................ 1
(5) BV0172 Muffler ................................... 1
(6) Engine Assembly
(7) BA1579 Muffler Gasket.......................
Add blue Loctite to all metal to metal screw surfaces.
After installing the engine, connect the silicone fuel tube
to the carburator and muffler.
9MainFrame Assembly-Part4
10 Landing Skid Assembly
(1) HSE3-18B Self Tapping Screw(M3x18).4
(2) HME4-5B Set Screw(M4x5)..................4
(3) BK0066 Skid Brace...............................2
(4) BK0064 Skid Pipe.................................2
(5) BK0065 Skid Pipe End Cap..................4
(3) BK0066
(2) HME4-5B
(5) BK0065
(1) HSE3-18B
(4) BK0064
(2) HME4-5B
(3) BK0066
(2) HME4-5B
(1) HSE3-18B
(6) BK0525 Carbon Base Plate..................1
(5) BK0065
The engine mount furnished will accommodate the Thunder Tiger 46H,
50H, and the other heli engines. If you are installing a Thunder Tiger
engine, you will find the mount is wider than the engine crankcase. Two
spacers are furnished to accurately locate the engine while bolting it in
place.Removethesespacersafterinstallation.
Engine Mount Notes:
Step1
Install the engine and
spacers into the engine
mount.
Step2
Install the 4 mount screws
and make sure the screws
are tightened firmly.
Step3
Remove the spacers.
(8) BK0179
(8) BK0179 Spacer...................................
1
2
(4) BK0144
(5) BK0525
