THUNDER TIGER Raptor 50 V2 kit User Manual

(3) HMV740ZZ
(4) BK0077
(5) BK0079
(6) BK0075
(7) BK0015
(8) BK0016
(9) BK0014
(1) HMJ2-10N
(2) HMC3-10B
(3) HMV740ZZ
(1) HMJ2-10N
(8) BK0016
(3) HMV740ZZ
(5) BK0079
(6) BK0075
(3) HMV740ZZ
(4) BK0077
(2) HMC3-10B
(7) BK0015
7

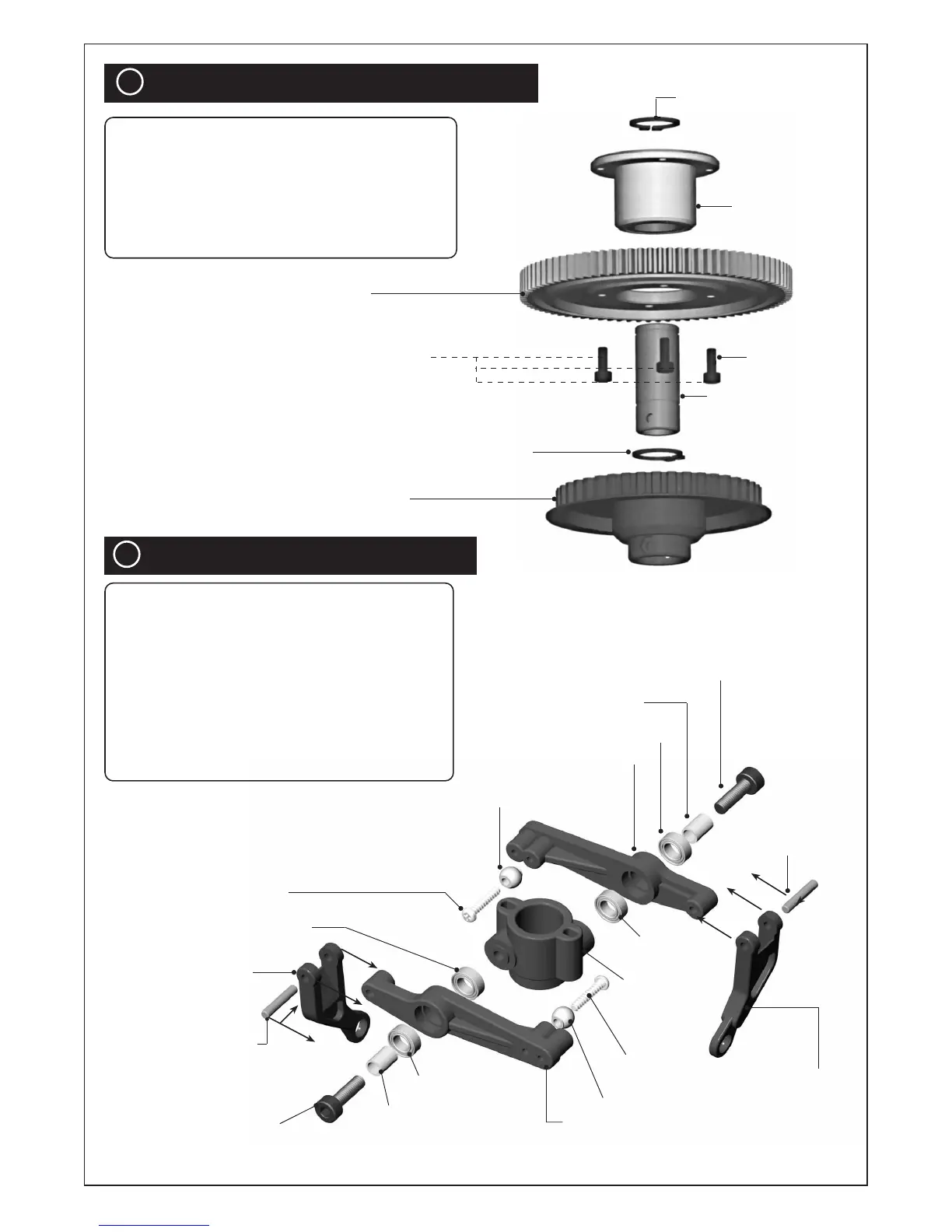

4Main Drive Gear Assembly
(1) HMC3-8B Socket Screw (M3x8)............. 4
(2) HMQ14 Snap Ring.................................... 2
(3) BV0033 One Way Clutch Housing.............1
(4) BK0148 Main Spur Gear 85T.....................1
(5) BK0610 Autorotation Tail Drive Pulley ..... 1
(6) BK0034 One Way Clutch Shaft..................1
5Washout Assembly
(1) HMJ2-10N Self Tapping Screw(M2x10).. 2
(2) HMC3-10B Socket Screw (M3x10)......... 2
(3) HMV740ZZ Bearing (d4xD7xW2.5)........ 4
(4) BK0077 Collar ........................................ 2
(5) BK0079 Pin............................................. 2
(6) BK0075 Linkage Ball.............................. 2
(7) BK0015 Flybar Control Lever.................. 2
(8) BK0016 Washout Linkage ..................... 2
(9) BK0014 Washout Base............................1
Make sure Linkage Balls are attached to the
inside hole of each stabilizer control lever.
(1) HMC3-8B
(6) BK0034
(2) HMQ14
(5) BK0610
(4) BK0148
(2) HMQ14
(3) BV0033
Add a drop of Blue Locktite on the
thread of each of these four screws.
Add some light
weight oil before
inserting this into
BV0033
