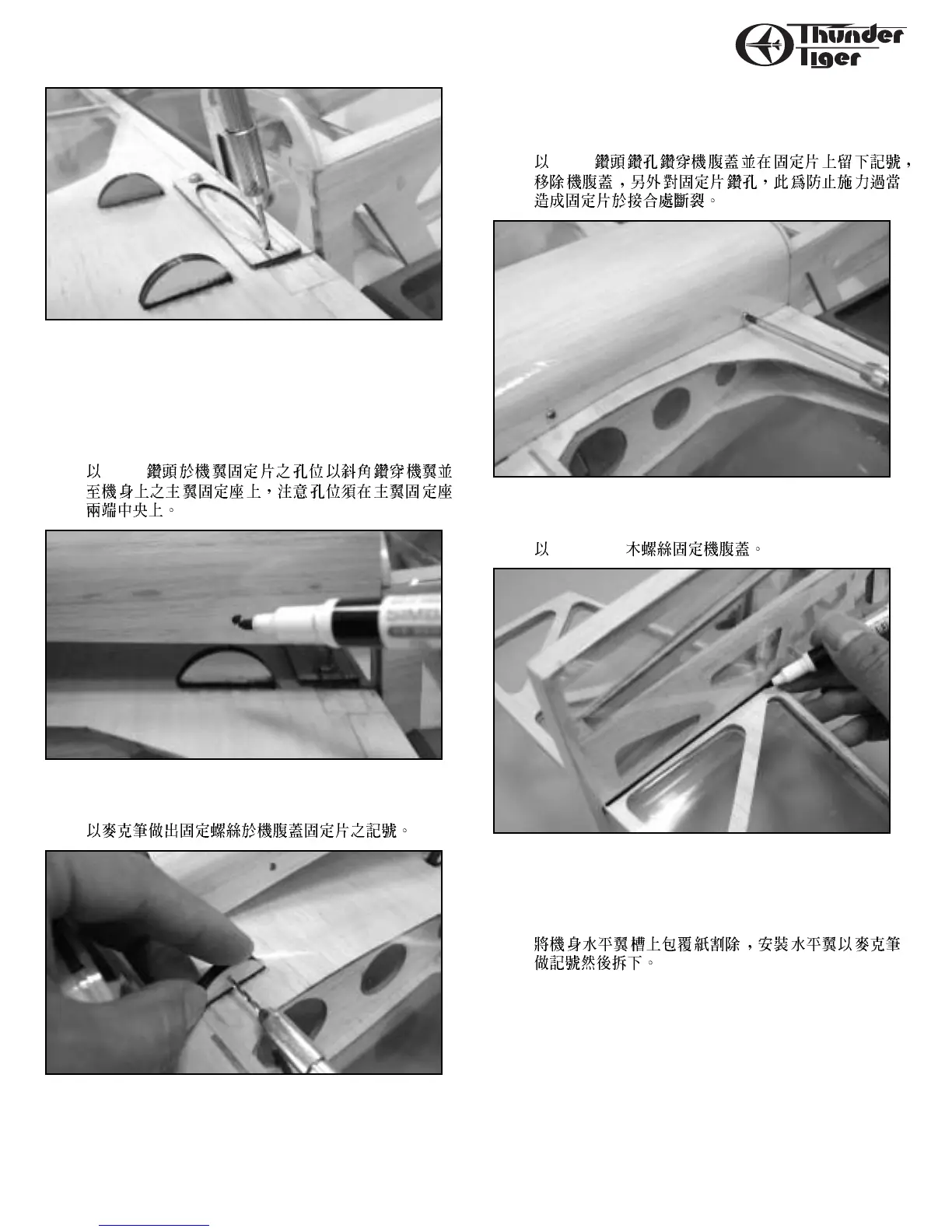

❐ 17. Fit the main wing on fuselage, drill
1/16"(1.5mm ) wing mounting holes. Be careful
to drill the hole through the wing and
mounting block on fuselage. The mounting
holes should be centered near two ends of
mounting block.
2mm
❐ 18. Trail Fit the bottom section. Make marks on
the bottom section.
❐ 19. Place the bottom section then drill
5/64"(2mm) holes. Drill the bottom section
and make a drill mark on bottom section
mount. Remove the bottom section then drill
10
TTAAIILL FFEEAATTHHEERRSS
the hole on bottom section mount as shown.
This is to prevent you from breaking the
mount when drilling.
2mm
❐ 20. Secure the bottom section with the furnished
3x 15 mm wood screw.
3x 15 mm
❐ 21.Remove the covering on the fuselage where
horizon tail goes. Insert the tail in place then
draw lines along fuselage on the tail at four
sides.
