WWIINNGG AASSSSEEMMBBLLYY

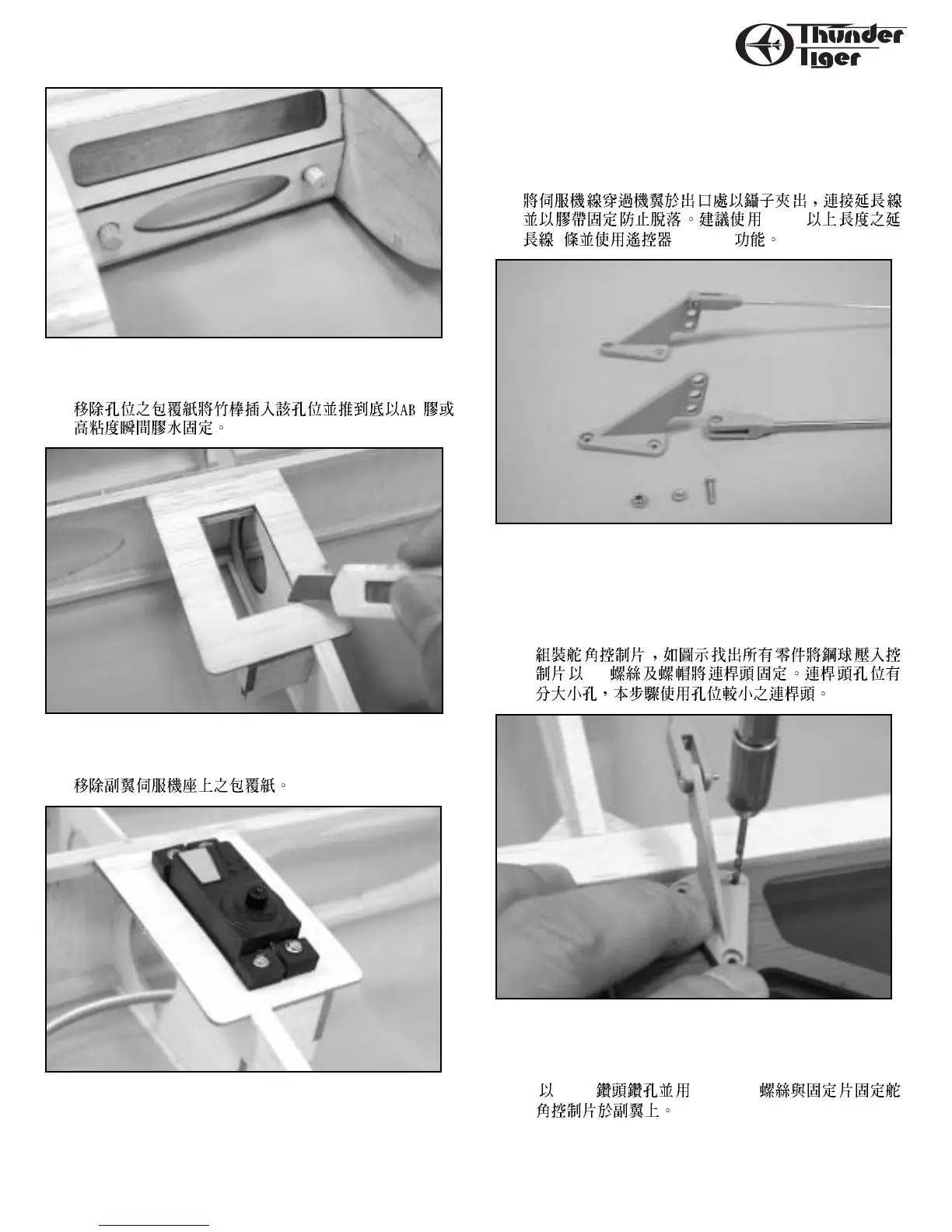

❐ 7. Remove the covering at the holes and epoxy
two dowels all the way in.
❐ 8. Remove the covering by a hobby knife at the
aileron servo well.
❐ 9. Thread the servo wire through wing panels and
exit at the servo wire exit hole. If you use a
standard 4ch radio then you will need a “Y”
style extension wire. Tape the connectors to
prevent from loosening. If you use a quality
programmable radio then we suggest you to use
two 10" long servo extension wires and turn on
the function of "Flapron" or Aileron-Flap
mixture control.
25cm
2 Flapron
❐ 10.Locate the control horns. Install the control
horn as shown. There are 5 cleveises in the
parts bag and a special clevis which has larger
pushrod hole that is for rudder pushrod. Use
the clevis with small hole in this step.
M2
❐ 11. Place the control horn on the aileron with
aileron pushrod(M) installed. Drill 5/64"
(2mm) holes.
2mm 2x14mm
To Next Page
