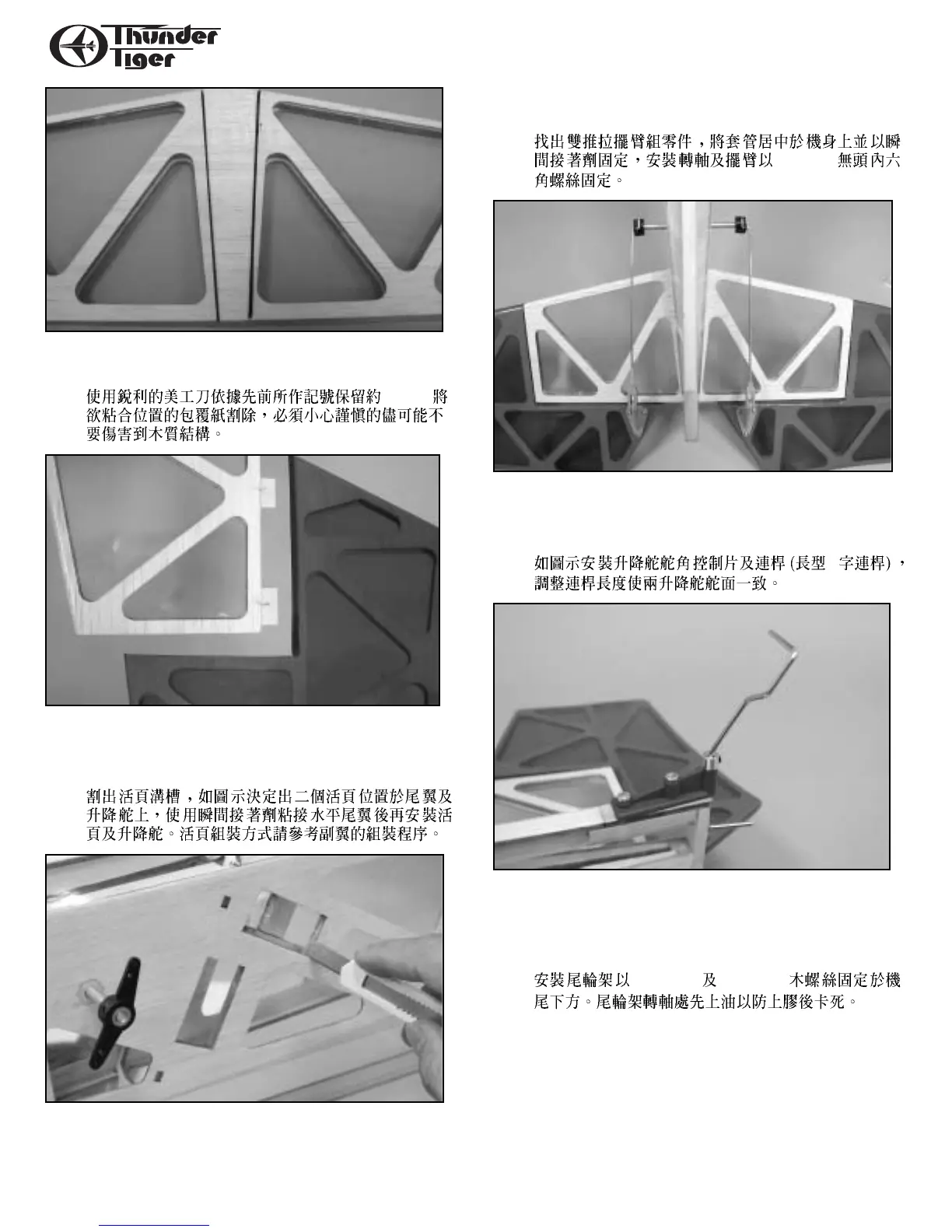

TTAAIILL FFEEAATTHHEERRSS
❐ 22. Remove the covering about 1/16"(1.5mm)
inside the line you drew.
1.5mm
❐ 23. Cut hinge slots first on elevator and horizontal
tail. Glue the tail in fuselage then attach the
elevator.
❐ 24. Locate the parts of dual linkage system for
elevator. Insert and center the tube in fuselage,
glue it with thick CA. Next secure the control
arm on the shaft with 3x3mm set screw. Cut
away the elevator servo well covering.
3x3mm
❐ 25. Install elevator control horns and elevator
pushrods(L). Adjust two elevators so that they
are level with each other.
Z
❐ 26. Install tail gear on the fuselage. Secure the tail
gear with 3x12mm and 3x 16mm wood screws.
Secure the collar with 3x3mm set screw.
Apply a drop of oil at the tail gear shaft.
3x12mm 3x16mm
