TTAAIILL FFEEAATTHHEERRSS

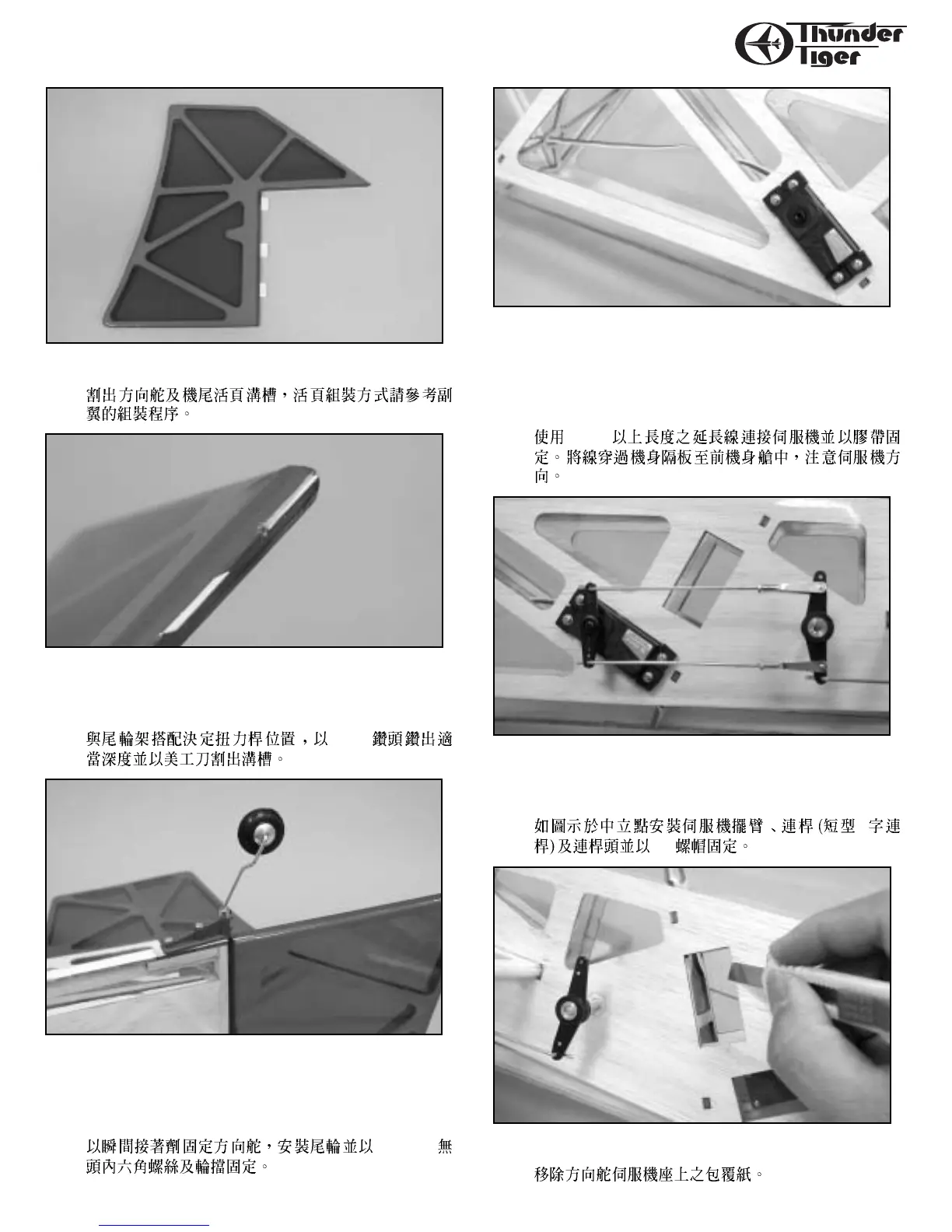

❐ 27. Cut slots on rudder and tail of fuselage.
❐ 28. Refer the photo in next step and drill a
5/64"(2mm) hole and carefully cut a slot for
tail gear torque rod.
2mm
❐ 29. Trail fit rudder, glue the tail gear and rudder
in place with thick CA when satisfied. Install
the tail wheel and secure the collar with
3x3mm set screw.
3x3mm
❐ 30. Connect a 20"(50cm) extension wire, make
sure you secure the connectors with tape.
Thread the servo wire through the bulkhead
of fuselage then secure the elevator servo in
place. Note the orientation of the servo.
50cm
❐ 31. Locate 2 pushrods(S size), install the push-pull
rod, M2 nut and metal clevis. Adjust the clevis,
make sure it moves smoothly.
Z
M2
❐ 32. Remove the rudder servo well covering.
To Next Page
