13

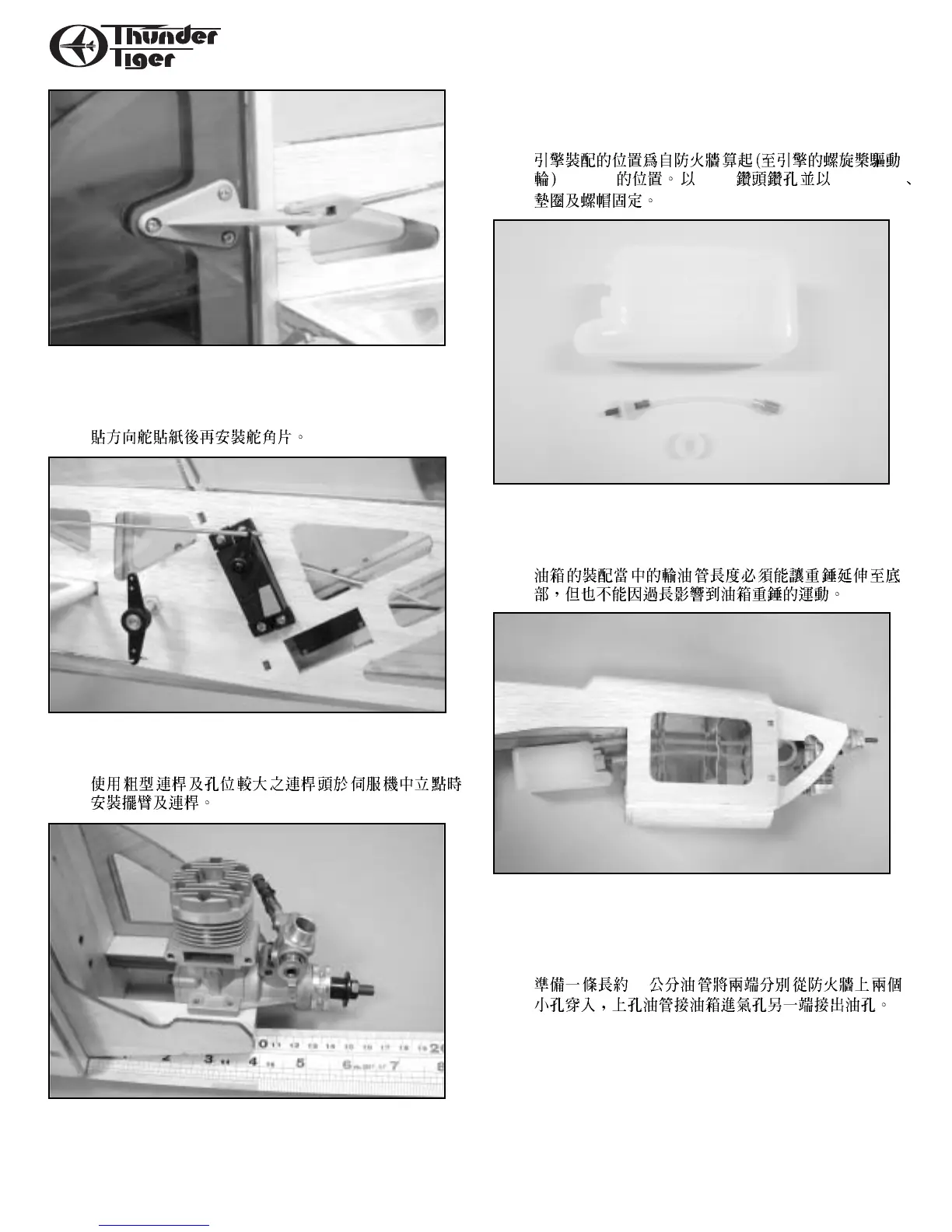

EENNGGIINNEE IINNSSTTAALLLLAATTIIOONN
Drill 1/8" (3mm) engine mount holes then
secure the engine with furnished 3x22mm
machine screws, washer and nuts.
135mm 3mm 3x22mm
❐ 36. Assemble the fuel tank as illustrated. Make
sure the crank weight is free when tank is
assembled.
❐ 37. Prepare a fuel tubing about 16"(45cm) in
length( not included), thread two ends from
front firewall through the fuselage. Connect
to the fuel tank nipples.
45
❐ 33. Install rudder control horn. Before you install
the control horn, you may apply the decal (c)
first. See the color photos on box label.
❐ 34. Install the rudder pushrod (dia. 2.2mm). Use
the larger pushrod hole on clevis in this step.
❐ 35. Place the engine on the engine mount. It will be
5 3/8"(135mm) from the firewall to drive
washer. Make marks on engine mount holes.
