14
EENNGGIINNEE IINNSSTTAALLLLAATTIIOONN

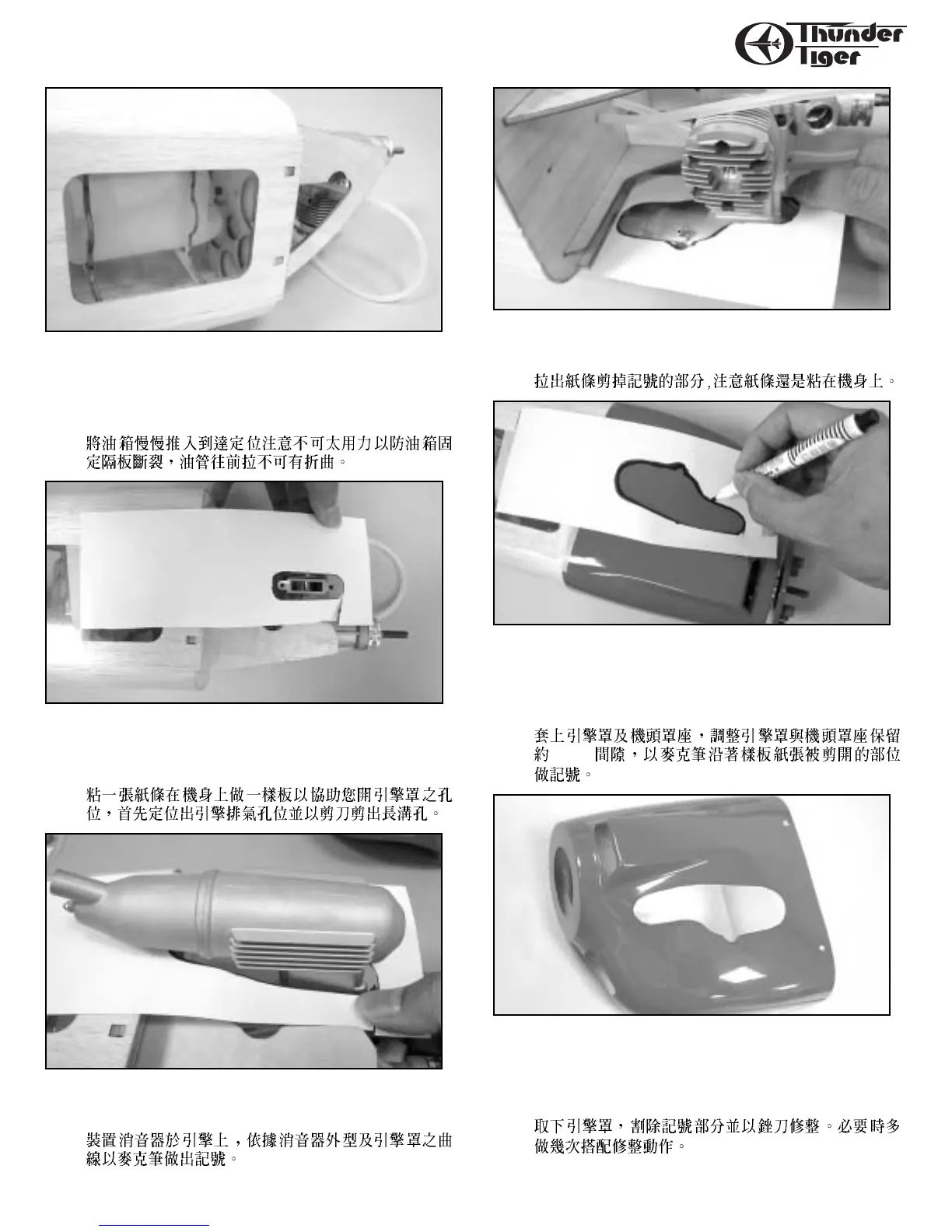

❐ 38. Insert the fuel tank slowly and carefully in
place as shown. Pull the fuel tubing and note
the tank orientation. Make sure the tubing is
not bent.
❐ 39. Use a piece of paper to help you trim the cowl.
Decide the muffler position and make marks
on the paper. Cut away the marks you drew.
❐ 40. Install the muffler in place as shown, make
marks on paper which contacts the muffler.
❐ 41. Cut away the marks you drew and clear the
contact area as shown.
❐ 42. Remove muffler then attach the cowl in place.
Make sure the cowl is about 1/8"(3mm) after
the drive washer at spinner area. Then use the
paper as template to make marks on cowl.
2mm
❐ 43. Remove the cowl and trim away the marked
area. It might take time to trial fit and trim the
cowl to get good fitness. You can take away
the carburetor or needle valve for easy fitness.
To Next Page
