4

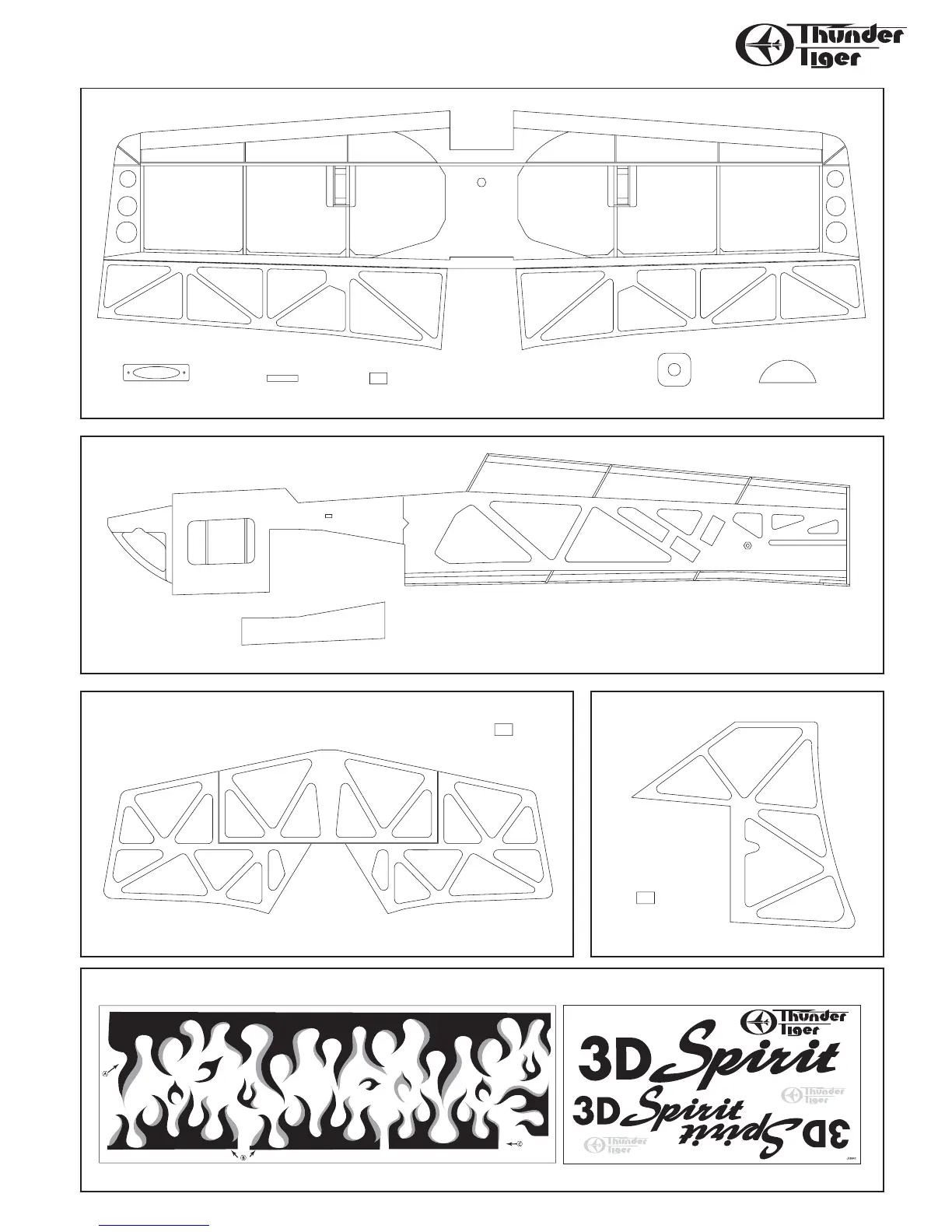

PPAARRTTSS DDRRAAWWIINNGGSS
AS6280 Main Wing
AS6281 Horizontal Tail
AS6279 Fuselage
AS6289 Decal
AS6282 Vertical Tail
Decal(2)
Main Wing(1)
CA Hinge(8)Dowel(2) Retainer(4)Wing Mounting Plate(1) Doubler(1)
Fuselage(1)
Bottom Section(1)
CA Hinge(4)
Horizontal Tail(1)
Vertical Tail(1)
CA Hinge(3)
Decal(1)
