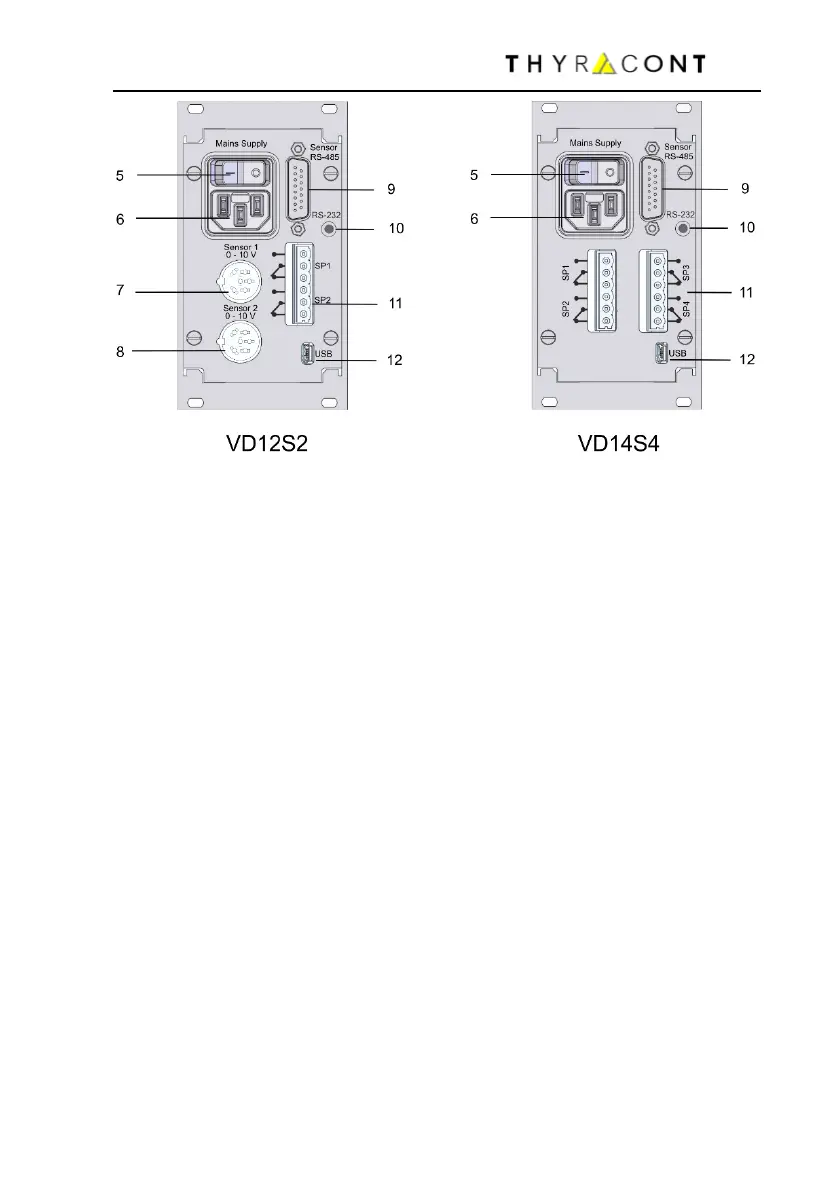

5 Mains switch
6 Mains connector 95 - 265 VAC, 50/60 Hz
7 Signal input 0-10V for Analogline transducers (channel 1) - VD12 only
8 Signal input 0-10V for Analogline transducers (channel 2) - VD12 only
9 RS485 connector for Smartline transducers
10 RS 232 PC interface
11 Relay contacts (VD12 2x, VD14 4x)
12 USB interface
Proper Use
The device serves exclusively to display and control absolute pressure in combi-
nation with Thyracont vacuum transducers. It may only be connected to
components specifically provided for such purpose.
Improper Use
The use for purposes not covered above is regarded as improper, in particular:
- the connection to components not allowed for in their operating instructions
- the connection to components containing touchable, voltage carrying parts.
No liability or warranty will be accepted for claims arising from improper use.
The user bears the responsibility with respect to the used process media.
