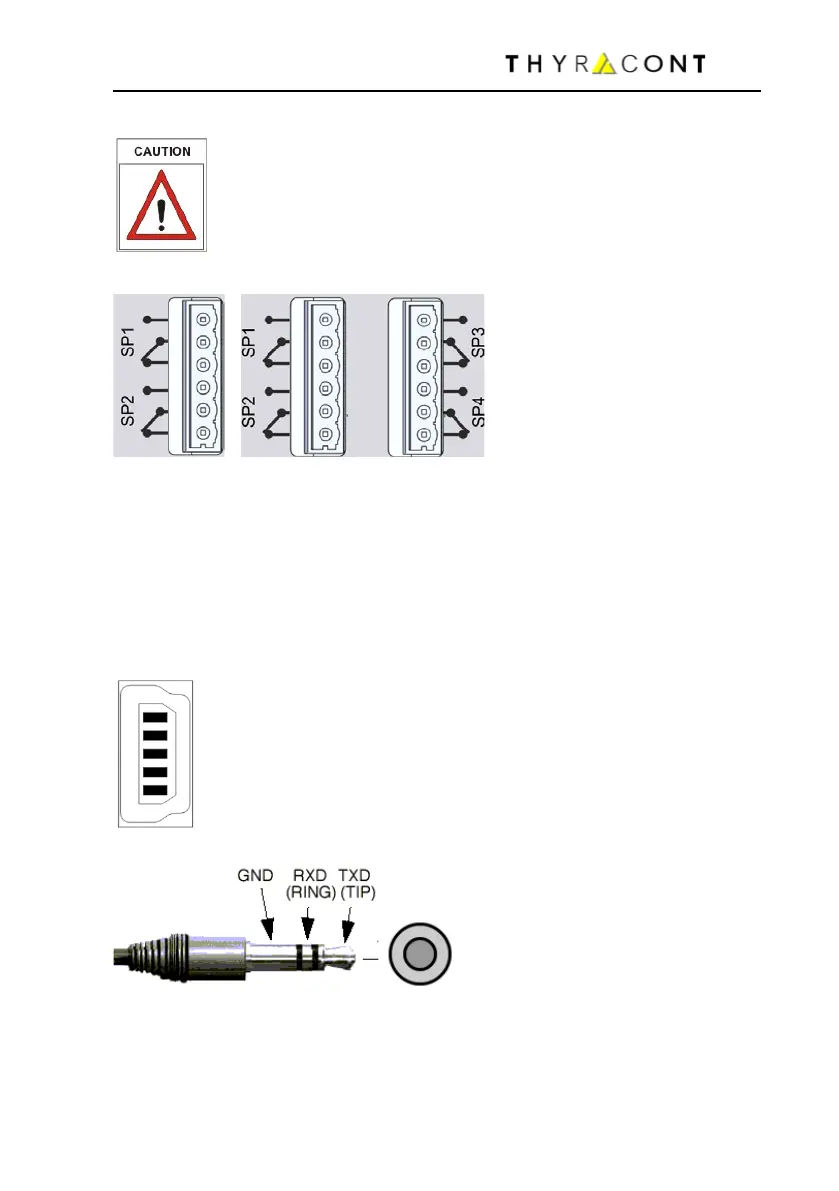

3.5 Switching Outputs
Use enclosed counter plug for electrical connection. Connect
only when power is off.
Maximum load for the relays is 2 A / 45 VDC or 4 A / 250 VAC.
VD12S2
VD14S4
Phoen
ix Combicon, 6pin
The contacts are shown in
state
-of-rest position, i.e.
switching function "off"
For process control this output of the device provides switching functions by
means of 2 or respectively 4 relay switches (switch-over type) SP1 to SP4. The
switching outputs can be assigned to one of the measuring channels or set on
and off manually (see chapter 4.5).
3.6 Serial Interfaces
USB
1:
2:
3:
4:
5:
Mini socket, type B
VCC, +5V
Data
–
Data +
GND
GND
By means of the USB or RS 232 interface the device can be connected to a PC,
e.g. for recording measurements or to adjust transducer parameters in combina-
tion with Windows-Software VacuGraph
TM
.
RS 232
Stereo Jack 3,5 mm
