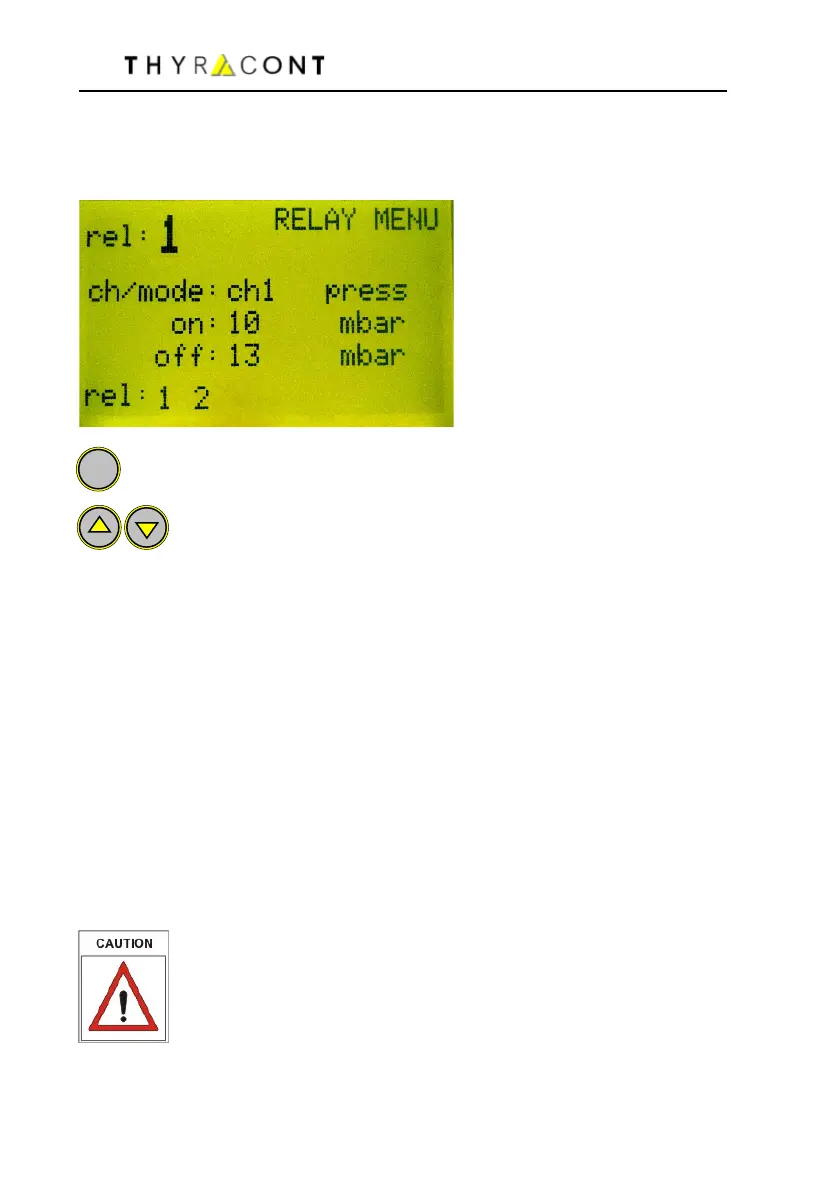

4.5 Menu RELAY - Switching Outputs
In the RELAY menu you can assign the switching outputs and set relay parame-
ters.
Confirm changes and switch to the next parameter
(flashing inversely)
Adjust input value by means of the up/down keys.
rel: Select relay number
ch/mode: Set relay assignment
Each relay can be assigned to a measuring channel "ch1" to "ch4"
and to various switching modes.
Switching modes:
press: Relay switches according to switch-on and switch-off pressure
err / !err: Relay switches in case of a sensor failure
ur / !ur: Relay switches in case of pressure underrange
or / !or: Relay switches in case of pressure overrange
Setting "on" becomes effective as soon as controlling is started.
on/off: Adjust switch-on pressure T and switch-off pressure F
The switch-points are adjustable over the whole measuring range.
If switch-points for on and off are set too close this may result in
flickering and damage of the relay!
