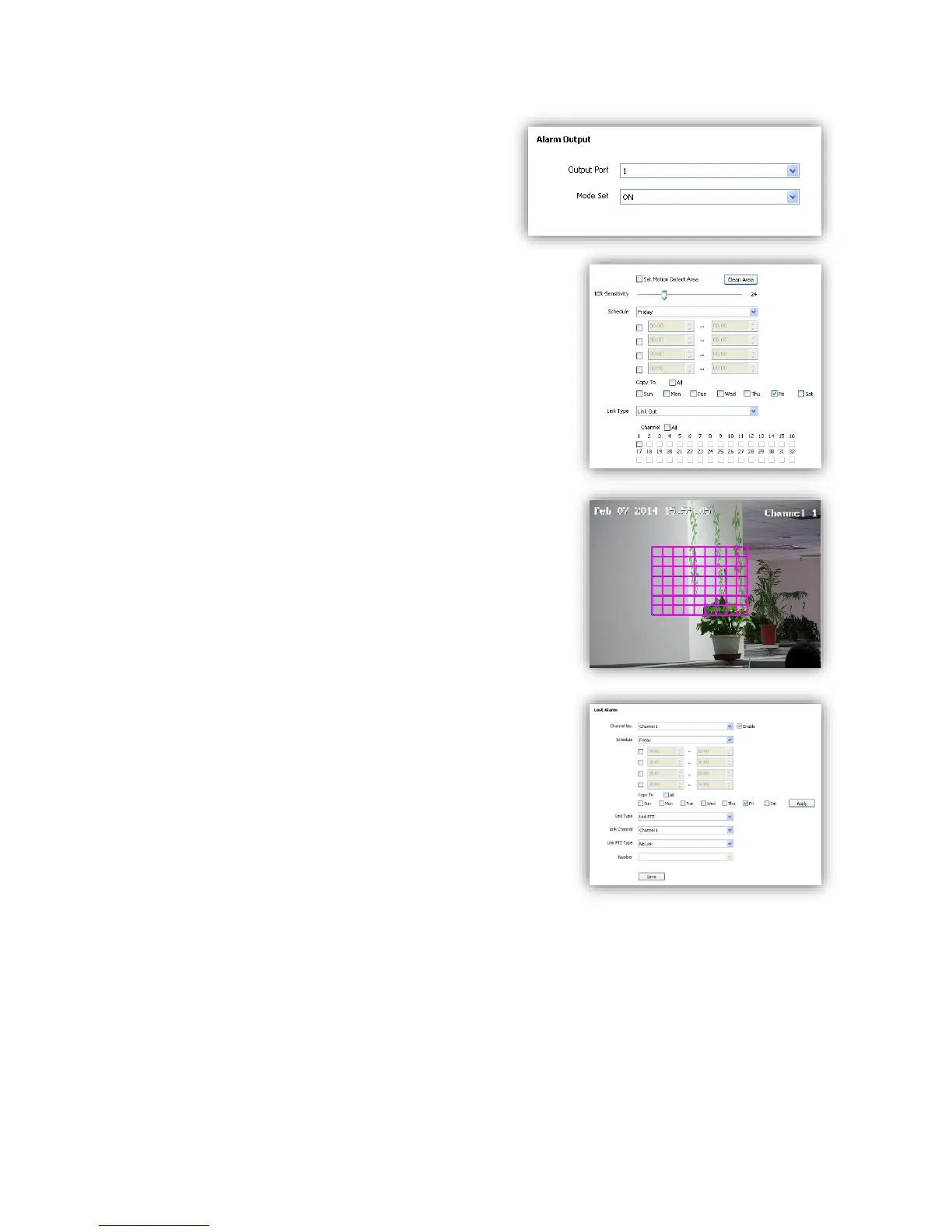

6.8.2 Alarm Output
Alarm output has port 1~2.
<ON>is closed circuit alarm.
<OFF>is open circuit alarm.
6.8.3 Motion Alarm
(1)<Set Motion Detection Area> Check to draw area on
screen.
(2)<Clean Area> Clean drawn area.
(3)<ICR-Sensitivity> set detection sensitivity, range from 0-
100, 0 means the highest sensitivity.
(4)<Schedule> setup alarm arm schedule.
(5)<Link Out> set alarm activation.
6.8.4 Lost alarm
Alarm when video lost.
(1) Check to enable lost alarm for target channel.
(2) <Schedule> Setup alarm arm schedule.
(3) <Link Type> Link PTZ/no link.
(4) <Link Channel>
(5) <Link PTZ Type> no link/preset position/pattern/auto
tour.
