Precautions
How to Drill Holes for EV Charger & Connector Cradle
Product Dimension
Precautions
Preparation of equipment and parts for installation
Product appearance and specifications
* Appearance may change without notice for quality improvement
After receiving the product, check the box packaging condition, remove the
packaging, and check if there is any damage during transportation. In case of
damage, immediately contact the service center.
·
Preparations for installation vary slightly depending on the installation
environment, so prepare other parts and tools for wiring work.
·
Before installation, in the charger installation site, check the power wiring. And
check whether you need to install the power distribution panel for the charger or
not.
Refer to the drilling guide below and drill a hole according to the size of the
screw anchor on the wall where the cradle will be installed.
Screw Anchor Size : 8mm X 60mm
※ Remove the fixing screw
on the top of the charger and
remove the wall bracket.
Body
Connector Cradle
anchor bolt 8SET
Screw Anchor
Φ8X60
LTE Modem
LAN Cable
Lock Key
M5X65
Charger
Fixing Screw
(M3X18)
Wall Bracket

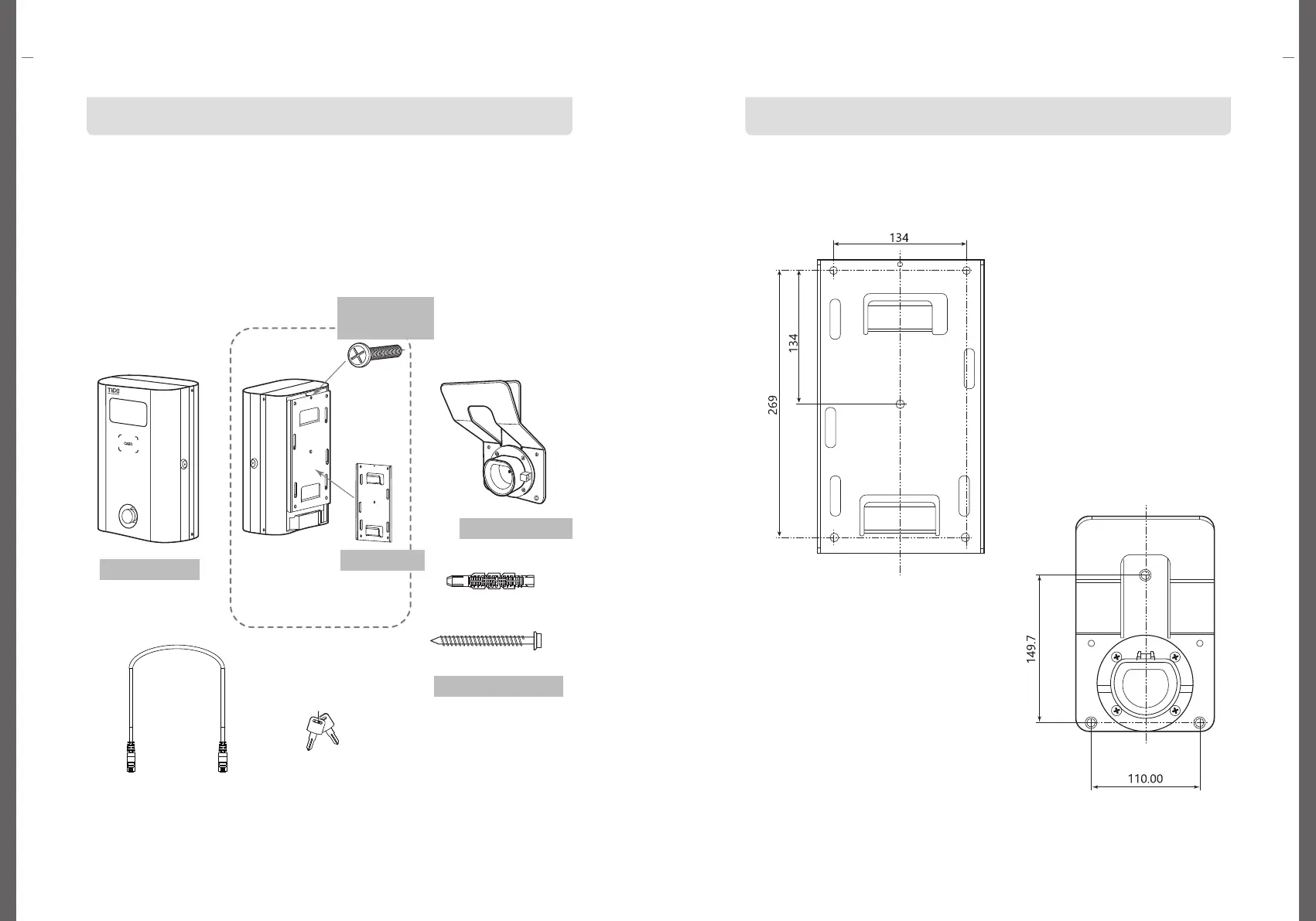

Drilling Guide for Charger Cradle
Drilling Guide for
Connector Cradle
To Next Page
