13
12

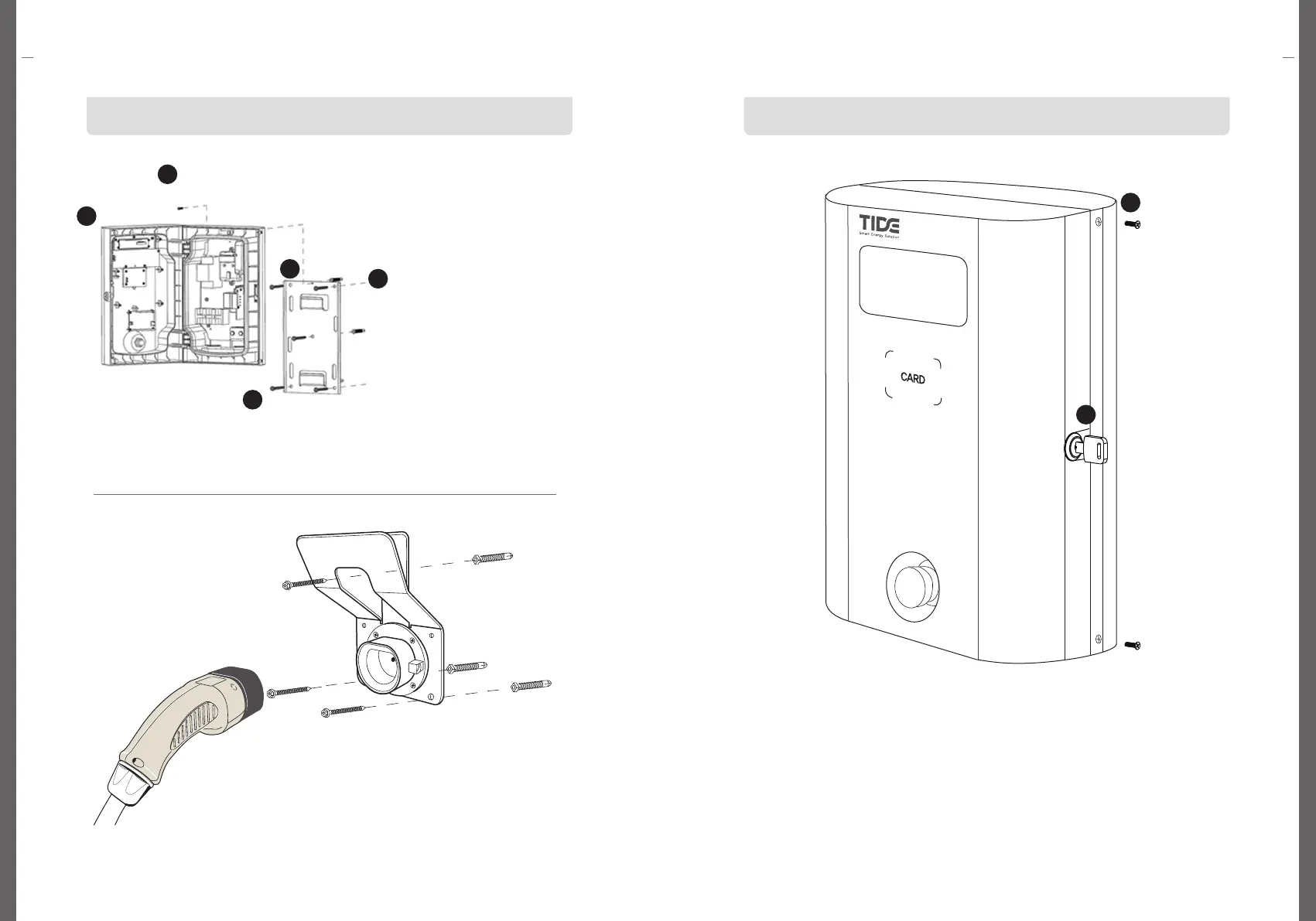

① Insert the screw anchor
into the hole in the
perforated wall.
② Align the hole of the
fixing bracket with the
screw anchor.
③ Fix with M5X65 screws.
④ Hang the charger body
on the bracket and lower
it vertically to fix it.
⑤ Secure with a M3X18
screw to the hole at the
top center of the charger.
Wiring & Connections
Wiring & Connections
How to Install EV Charger and Connector Cradle
How to Install EV Charger and Connector Cradle
Install the cradle in the order below. Open the door of EV Charger
① Insert the screw anchor into the hole
on the drilled wall.
② Align the hole of the connector cradle with
the screw anchor.
③ Fix with M5X65 screws.
④ Plug the connecto into the connector
socket and store it.
[M3X18]
(Charger Fixing Screw)
[Connector]
[M5X65]
(Anchor bolt)
[Bracket coupler]
[Screw Anchor]
(Anchor bolt)
[Fixing Bracket]
[[Screw
Anchor]
(Anchor
bolt)
[[Body]
[M5X65]
(Anchor bolt)
1
2
4
5
3
OK
Charging
Error
Cancel
① Unlock the EV charger with the enclosed key.
② Remove the M3X12 screws on the top and bottom of the side.
2
1
[M3X12]
(Screw)
[Lock Key]
To Next Page
