Miter Jaws

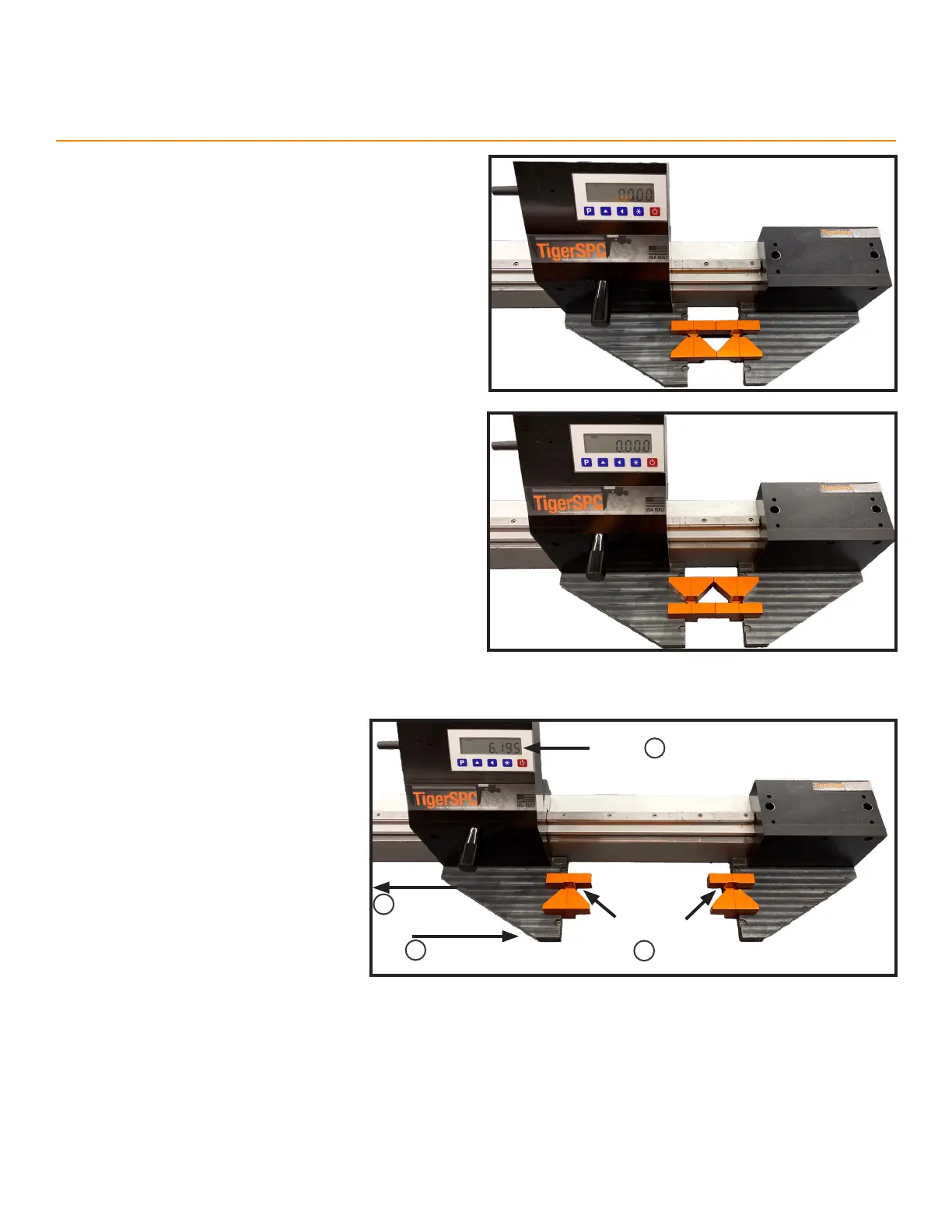

When the Miter Jaw’s triangle is pointing towards the
beam, use slots 3 and 4 on the SPC’s feet.
• Always calibrate the TigerSPC after attaching jaws.
When the Miter Jaw’s triangle is pointing towards the
user, use slots 2 and 3 on the SPC’s feet.
• Always calibrate the TigerSPC after attaching jaws.
Measuring
1. Open the Jaws.
2. Place the part in the Jaws.
3. Gently close the Jaws.
4. Read the Measurement.
Place
Close
Read
Open
1
2
3
4
