23
Foot

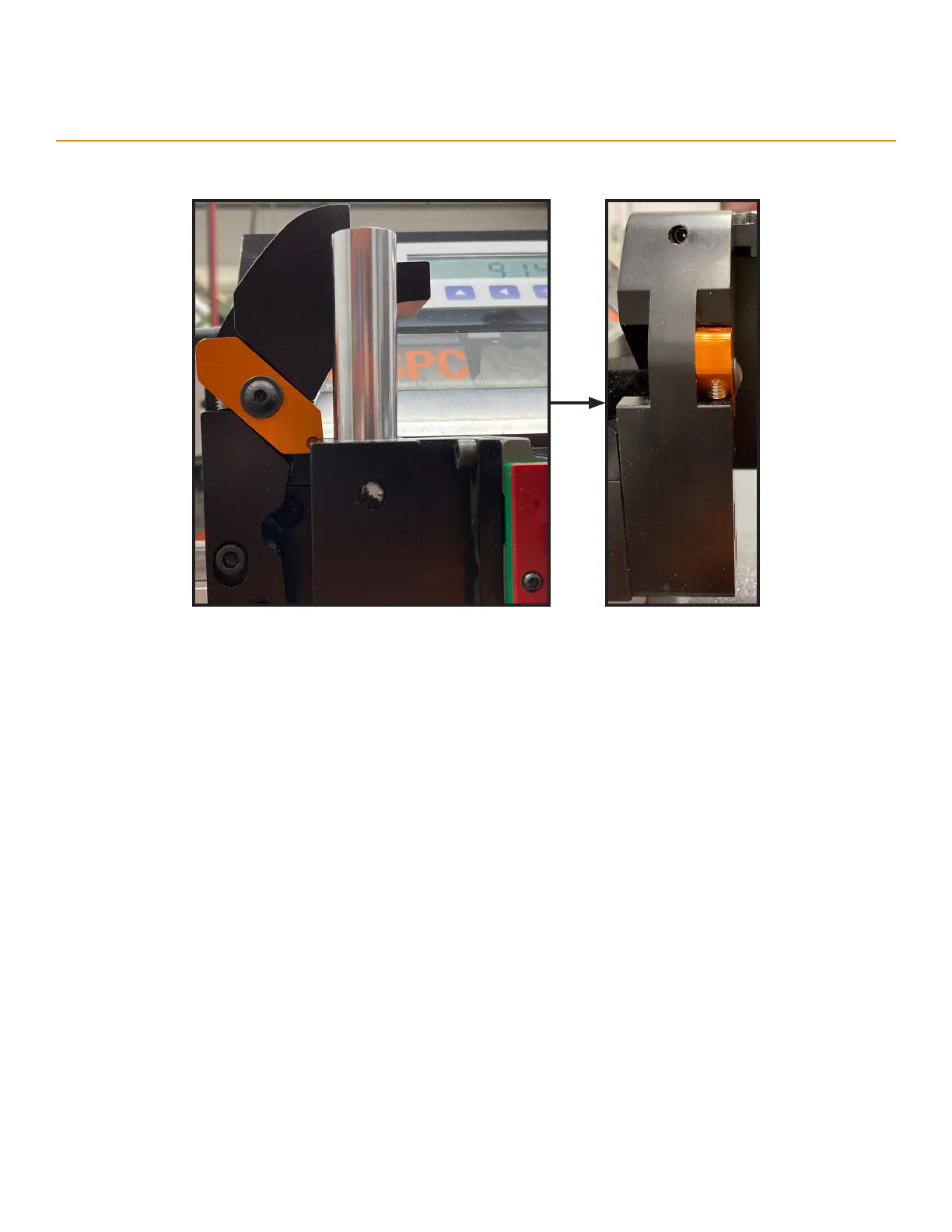

Swivel Block Attachment
To make the foot parallel to the table:
1. Slide the pin block into the orange notch.
2. Slightly loosen the black screw on the orange block.
3. Turn the set screw to bring it into the orange block.
4. Push down on the orange block and up on the pin block until you find parallel.
5. Hold them in position and tighten the black screw.
6. Adjust properly and there is little to no play between the orange block and the pin block.
7. Lastly, turn the set screw down until it makes contact. This helps the orange block to hold position.
Measuring
See page 7 for instructions on measuring with jaws. When measuring with the pin, the only dierence is instead
of closing the jaws, you will drop the pin onto (or into) your point of measure.
