-Tilgin HG320 Series Quick Guide
14. How to Wall-Mount the Home Gateway
Wallmounting Instruction
The device can be mounted on the wall.
To install:
1. Screw appropriate screws to the wall where the device is to be placed.
See 13650037 Drill Guide for wall mounting the HG32x
appended in the gift box for drilling correctly spaced holes.
The template shows an outline view of the product with two indicated drill
locations.
When you have marked the drill locations on your wall, drill two holes and insert
two suitable screws.
2. Let the bottom of the device face the wall and mount the device on the screws.
3. Connect the cables to the rear panel.

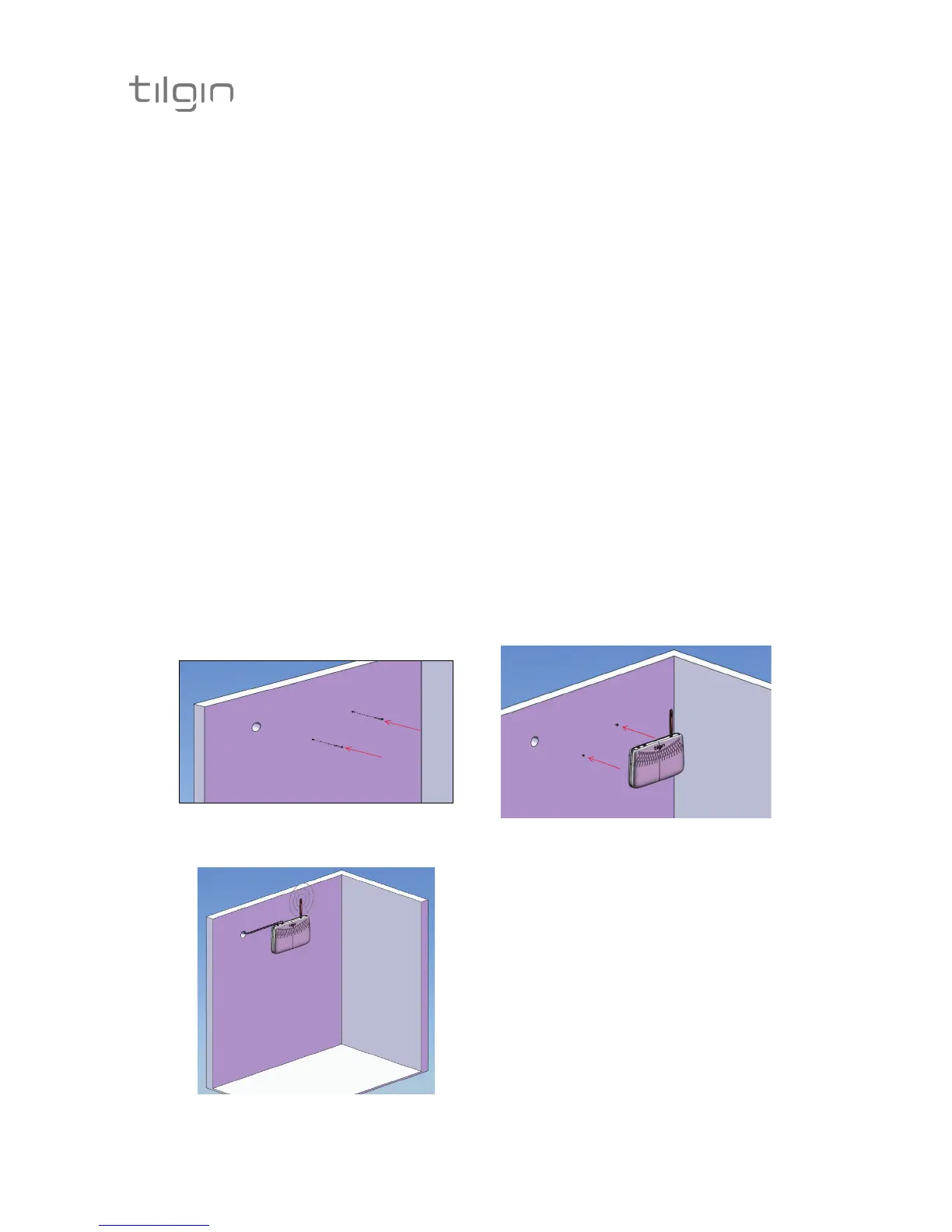

Figure: Mounting the device to the wall:
12
3
TI-DEV_IPRG_09_054 Ver A
