INSTALLATION OF OUTDOOR UNIT

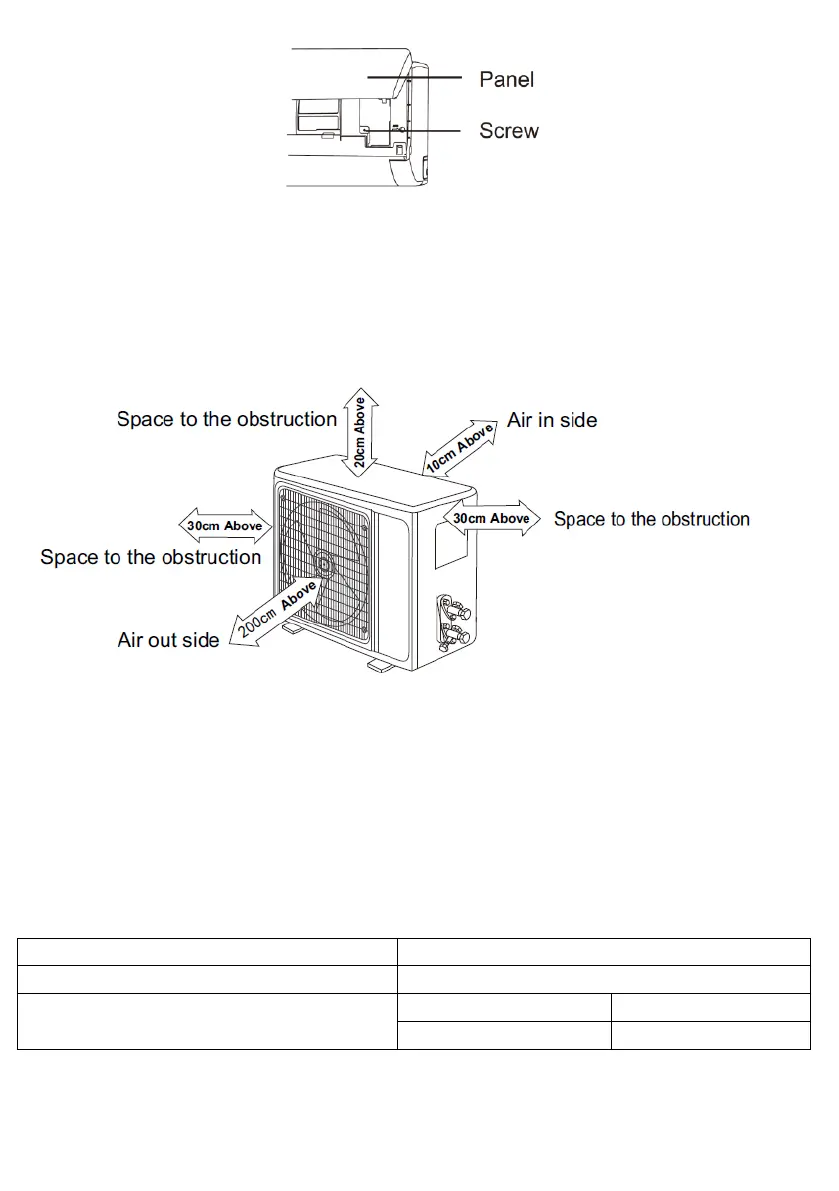

Dimension drawing of outdoor unit installation
Fig. 12
Install the connection pipe
Connect the Outdoor Unit with Connecting Pipe:
Aim the counter-bore of the connecting pipe at the stop valve, and tighten the Taper nut with
fingers. Then tighten the Taper nut with a torque wrench.
When prolonging the piping, extra amount of refrigerant must be added so that the operation and
performance of the air conditioner will not be compromised.
Piping length
Amount of refrigerant to be added
≤5M
Not needed
5-15M
CC≤12000Btu
20g/m
CC≥18000Btu
30g/m
Note: This table is for reference only.
