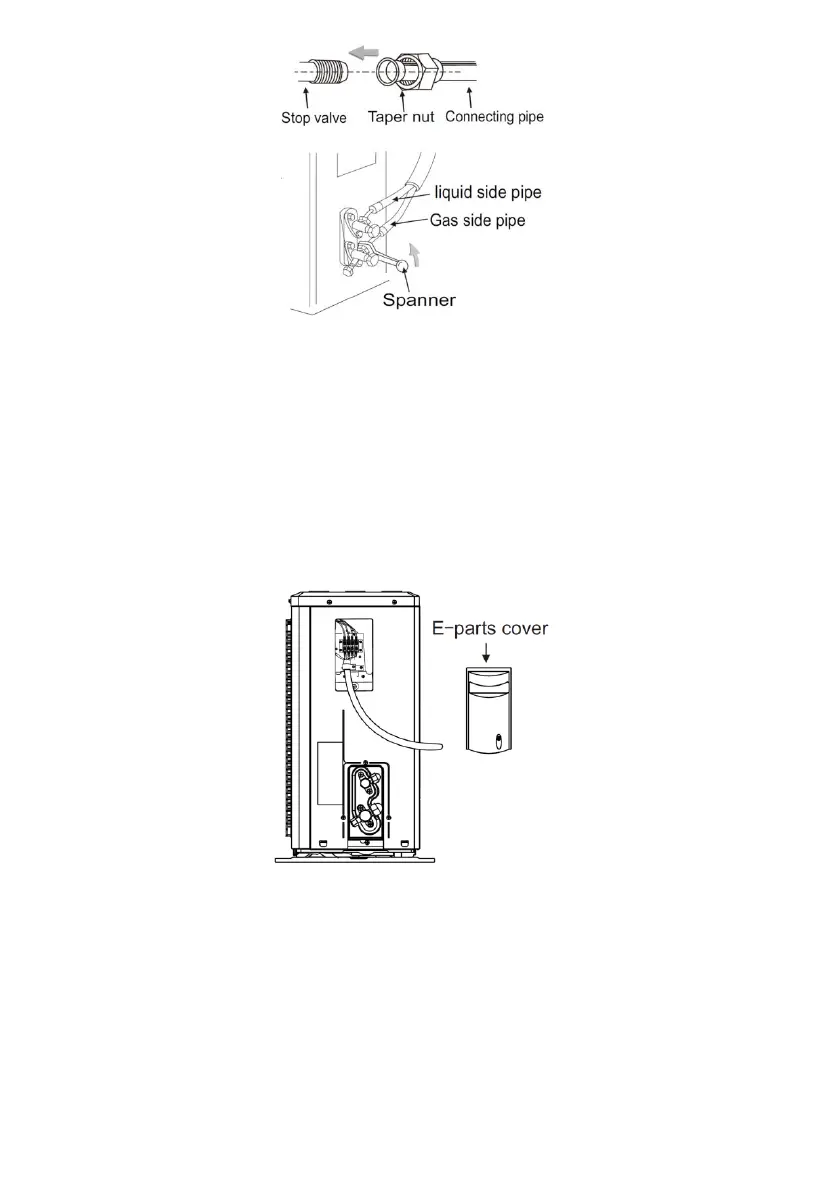

Fig. 13
Wiring Connection
1. Loosen the screws and remove E-parts cover from the unit.
2. Connect the cables respectively to the corresponding terminals of the terminal board of the
outdoor unit (see the wiring diagram), and if there are signals connected to the plug, just conduct
butt joint.
3. Ground wire: Remove the grounding screw out of the electric bracket, cover the grounding
wire end onto the grounding screw and screw it into the grounding hole.
4. Fix the cable reliably with fasteners.
5. Put the E-parts cover back in its original place and fasten it with screws.
Fig. 14

Timberk T-AC07-S27-Y Specifications

General

Brand	Timberk
Model	T-AC07-S27-Y
Category	Air Conditioner
Language	English
