TW 13/75G
8 / 32
C190-0187 25.01.2019 Rev: 1.0

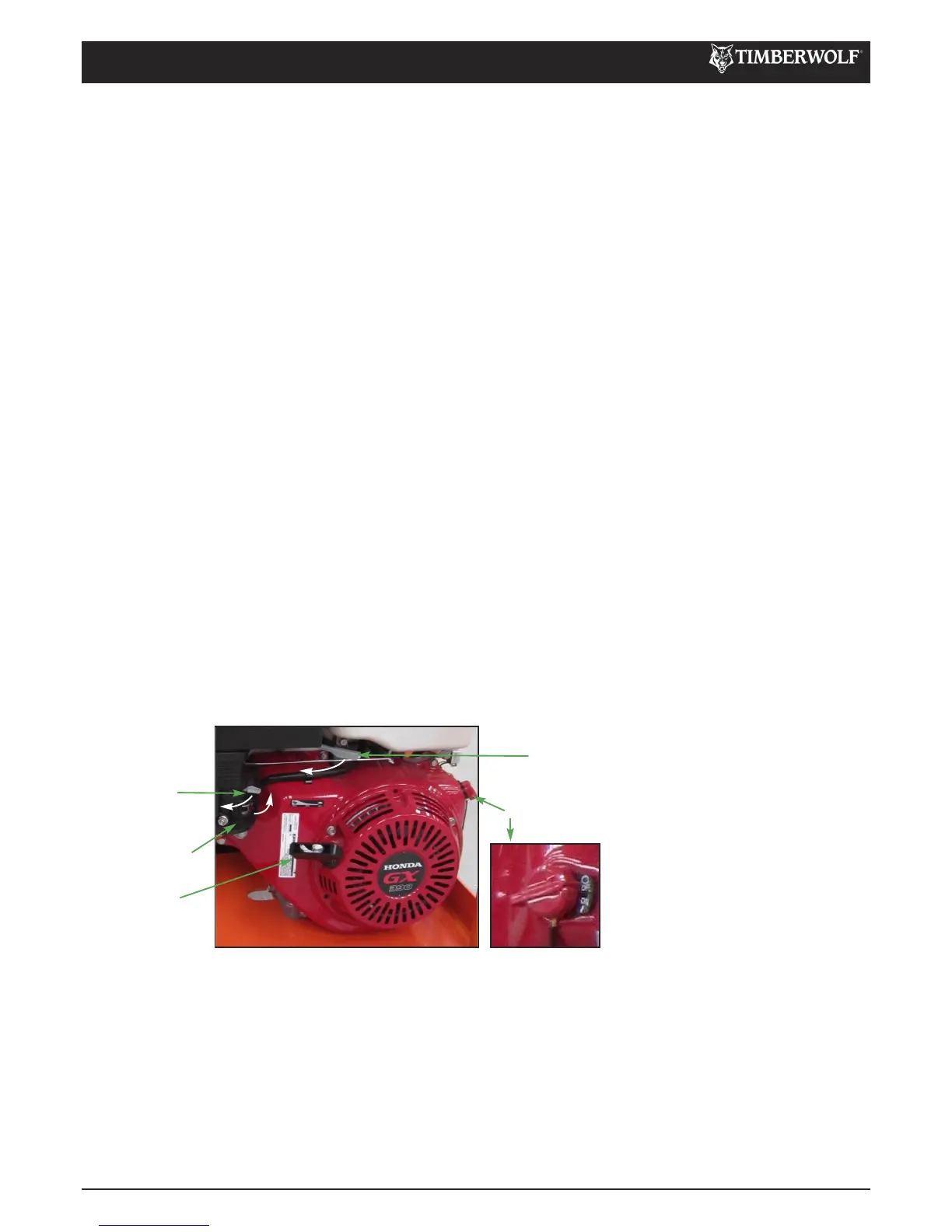

IGNITION SWITCH
CHOKE
LEVER
FUEL VALVE
THROTTLE
CONTROL LEVER
Refer to the Honda engine
manual for detailed instructions
of how to start and control the
GX390 engine.
OFF
ON
STARTER
HANDLE
SAFE TRANSPORTATION
The TW 13/75G chipper may be transported as a unit or with the feed funnel removed. •
Take care when loading the TW 13/75G as it is 188 kg in weight. •
Strap the chipper down firmly before beginning a journey (do not use feed funnel handles to •
strap down machine).
Ensure no debris or water is trapped in the rotor housing that may spill during transit. •
Turn the fuel valve OFF and keep the engine upright.•
RECOMMISSIONING AFTER STORAGE
Ensure machine is stable. •
Remove all guards and check all fasteners. If necessary, •
retighten as described within this manual.
Ensure feed funnel is free from foreign objects e.g. tools •
and clothing.
Lower and raise feed funnel into its open and closed •
positions to confirm functionality.
Check fuel within engine and top up accordingly. * •
Inspect all internal parts e.g. drive belts, taper locks and •
shaft keyways.
Check belt tension as described within this manual. •
Inspect cutting blades to confirm they are sharp and •
suitable for use.
Undertake electrical diagnostic continuity check, to •
confirm circuit is complete.
Re-lubricate all grease pipes. Remove pipes and bleed •
the system prior to use, if necessary. *
Follow daily checks before starting, as described within •
this manual.
Start the machine. •
Run for 15 minutes at half throttle, prior to any cutting •
activity, to clear the combustion engine. Once
complete, bring the machine onto full throttle for a
further 5 minutes.
*Storage fluids should be replaced, DO NOT USE old
stagnate fluids.
DELIVERY
All Timberwolf TW 13/75G machines have a full pre - delivery inspection before leaving the factory and are ready to use.
Read and understand this instruction manual before attempting to operate the chipper. In particular, read pages 5-6 which
contain important health and safety information and advice.
MANUAL CONTROLS
There are five controls on the Honda GX 390 K1 that are required for daily usage of the TW 13/75G chipper.
OPERATING INSTRUCTIONS
