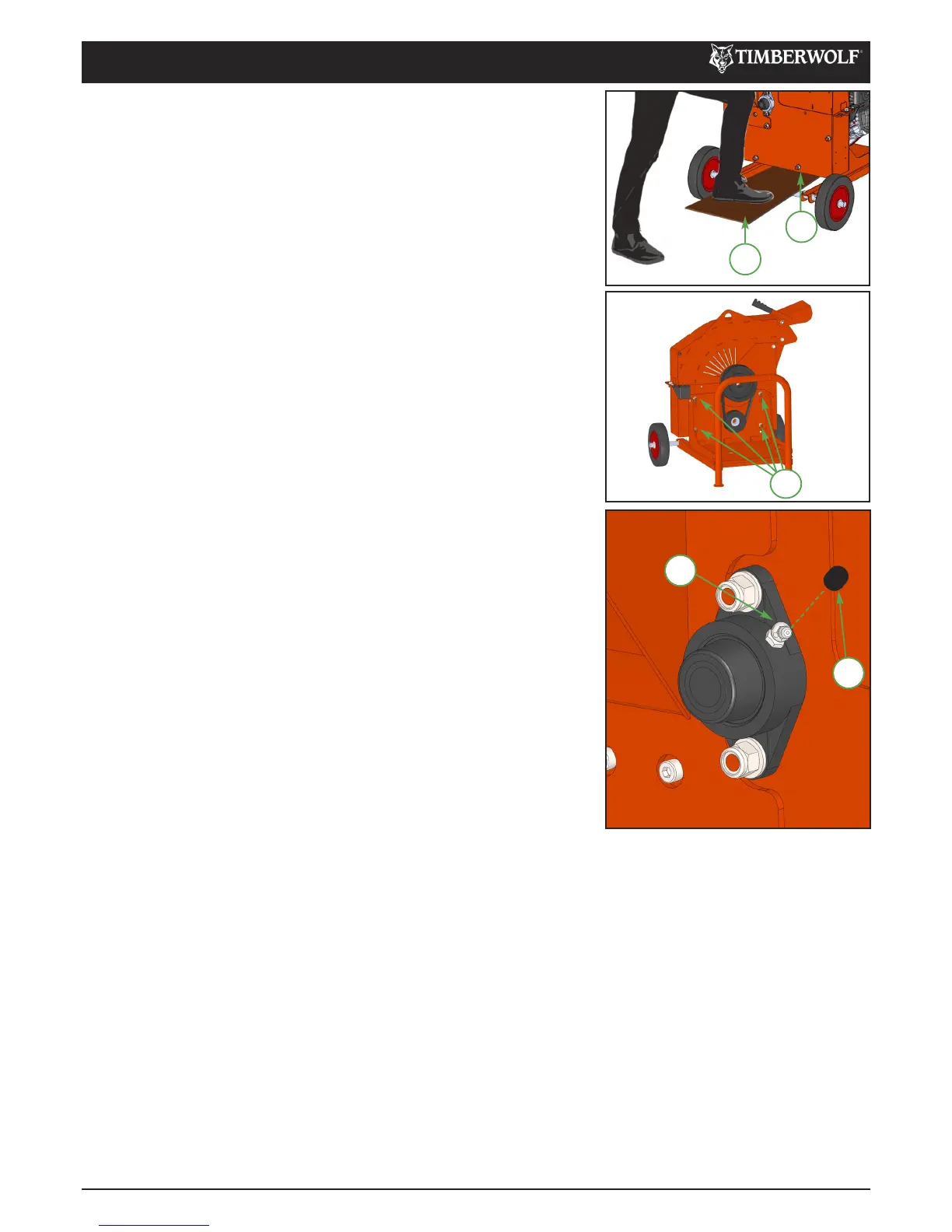

GREASING ROTOR BEARINGS
Remove rubber cap from front bearing housing grease nipple. 1
Apply 1 pump of grease to bearing. 2
Replace cap.3
The anvil is an important component in maintaining a consistent machine
performance. Inspect it through an open rotor housing. A measure of the
wear is how sharp the edge is. If it has become seriously rounded then it is
appropriate to change it.
Turning or replacing the anvil should be carried out by a Timberwolf dealer.
ANVIL CHANGING
TW 13/75G
16 / 32
SERVICE INSTRUCTIONS
C190-0187 25.01.2019 Rev: 1.0
TENSION DRIVE BELTS
Remove the belt guard. 1
Insert a piece of wood approximately 25mm x 150mm x 1200mm (1"x 2
6"x 48") in the gap as shown.
Loosen the four Nyloc nuts located behind the engine. 3
With the chipper firmly supported, use the piece of wood to lever the 4
rotor housing upwards.
For instructions on checking belt tension & correct belt tension values, 5
please refer to the Timberwolf V-Belt Tensioning Data Table (pg 23).
As the belts become taught, retighten the four Nyloc nuts. 6
Replace the belt guard. 7
Remove the piece of wood. 8
NOTE: Slack drive belts will cause poor performance and excess belt and
pulley wear.
NOTE: There will normally be a rapid drop in tension during run-in period
for new belts. When new belts are fitted, check the tension every 2 - 3
hours and adjust until the tension remains constant. Belt failures due to
lack of correct tensioning will not be covered under your Timberwolf
warranty.
2
3
4
ENGINE SERVICING
All engine servicing must be performed in accordance with the Engine
Manufacturer’s handbook provided with the machine. Failure to adhere to
this may invalidate warranty and/or shorten the life of the engine.
