Operating Instructions
21
TIMBERWOLF FIREWOOD PROCESSING EQUIPMENT
1. Steady log by placing your left hand on top of it, midway between its two ends
2. With your right hand, move the handle toward the wedge to its stop position
3. Hold handle at the stop position and continue to steady the log only until it is fi rmly
gripped between the push block and the wedge
4. When log is fi rmly gripped between push block and wedge, immediately remove
your left hand from the log
5. Push the lever toward the wedge until the log is split
6. Release handle and let it return to the neutral position
7. Move handle away from wedge into locked position
Push block starts automatic retract
8. Handle returns to neutral position automatically when push block is fully retracted
Notes
• To stop push block while it is extending, release control valve handle
• To stop push block while it is retracting, move control valve handle back to neutral position
• Always pause the control valve handle in neutral position before you reverse push block direction
Hydraulic system recovers during the pause. Failure to do this causes increased wear on the hydraulic system

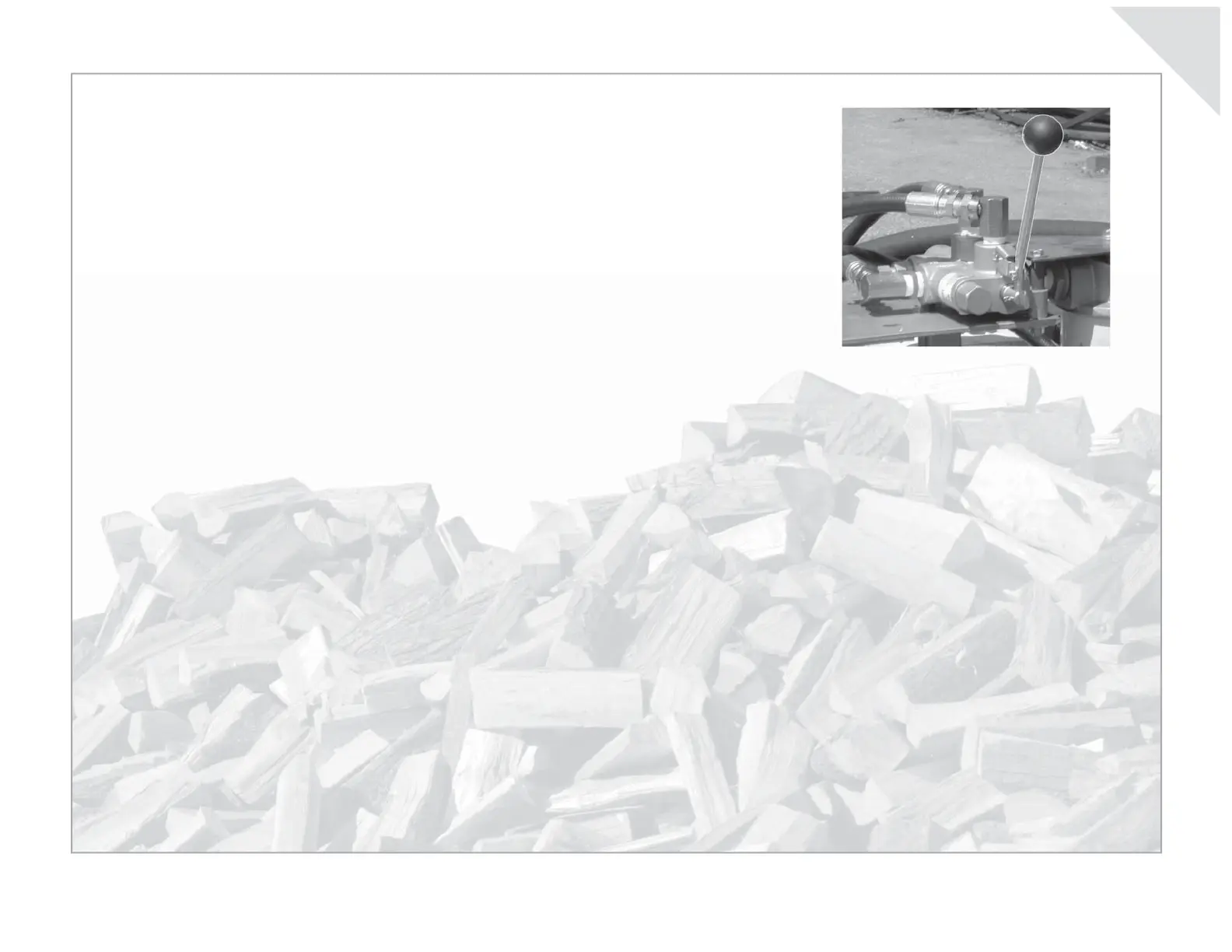

Single Handle Control
Push lever towards the wedge
and hold to split. Pull the lever
back from the wedge to auto-
retract.
