Time Fluidity - Page 12

Fluidity 2014-2015
- 12 -

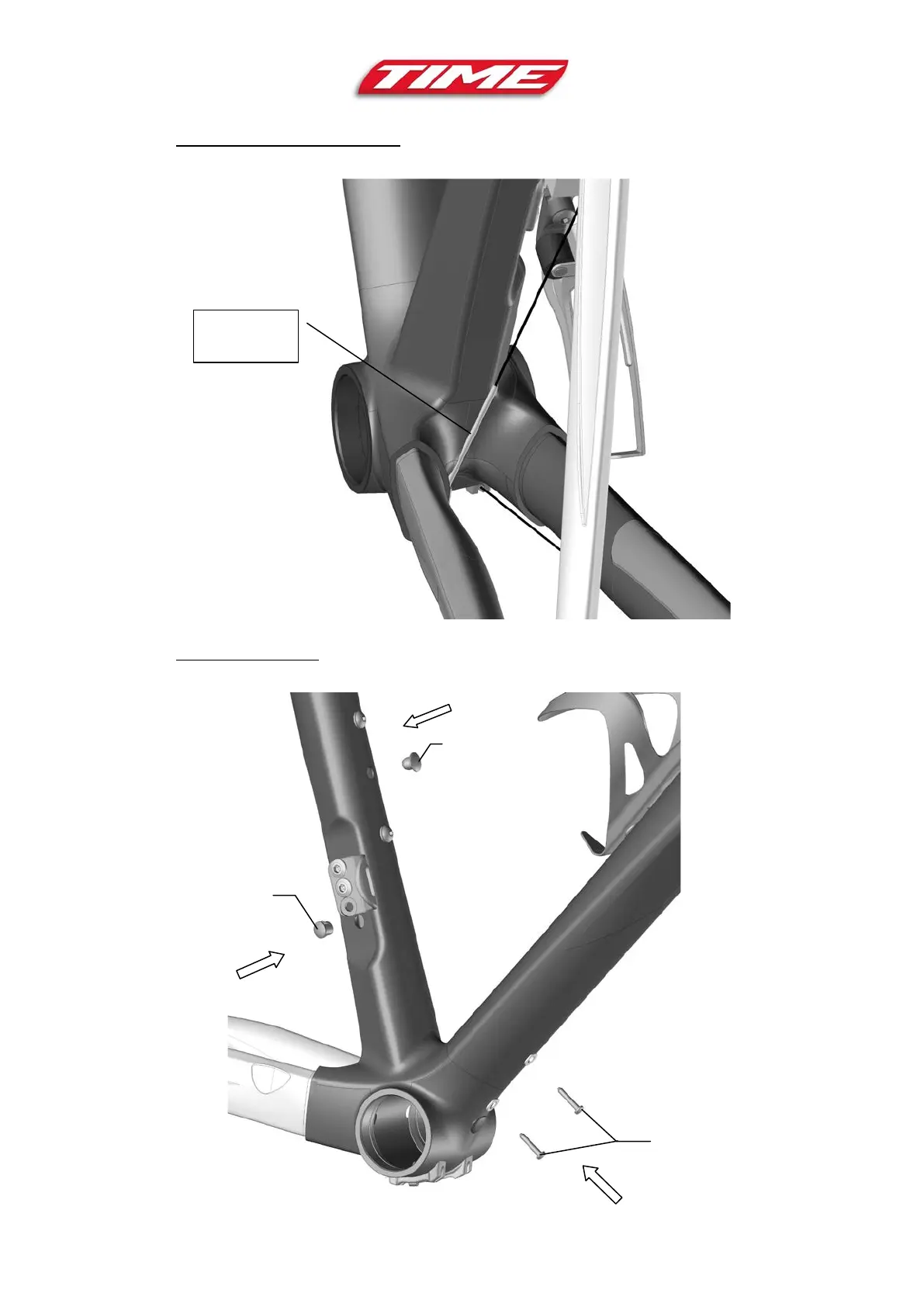

a) Front derailleur cable housing
It must be installed over the front derailleur cable to protect the frame against friction (fig. 9)
b) Installing the plugs
Now remove the cable guides (nylon threads) used for electronic systems, then plug the holes (fig. 15)
Protective
cable
Figure 9
Plug
Ø 7.2
Plug
Ø 8
Quick-fit
fastener
Figure 10
