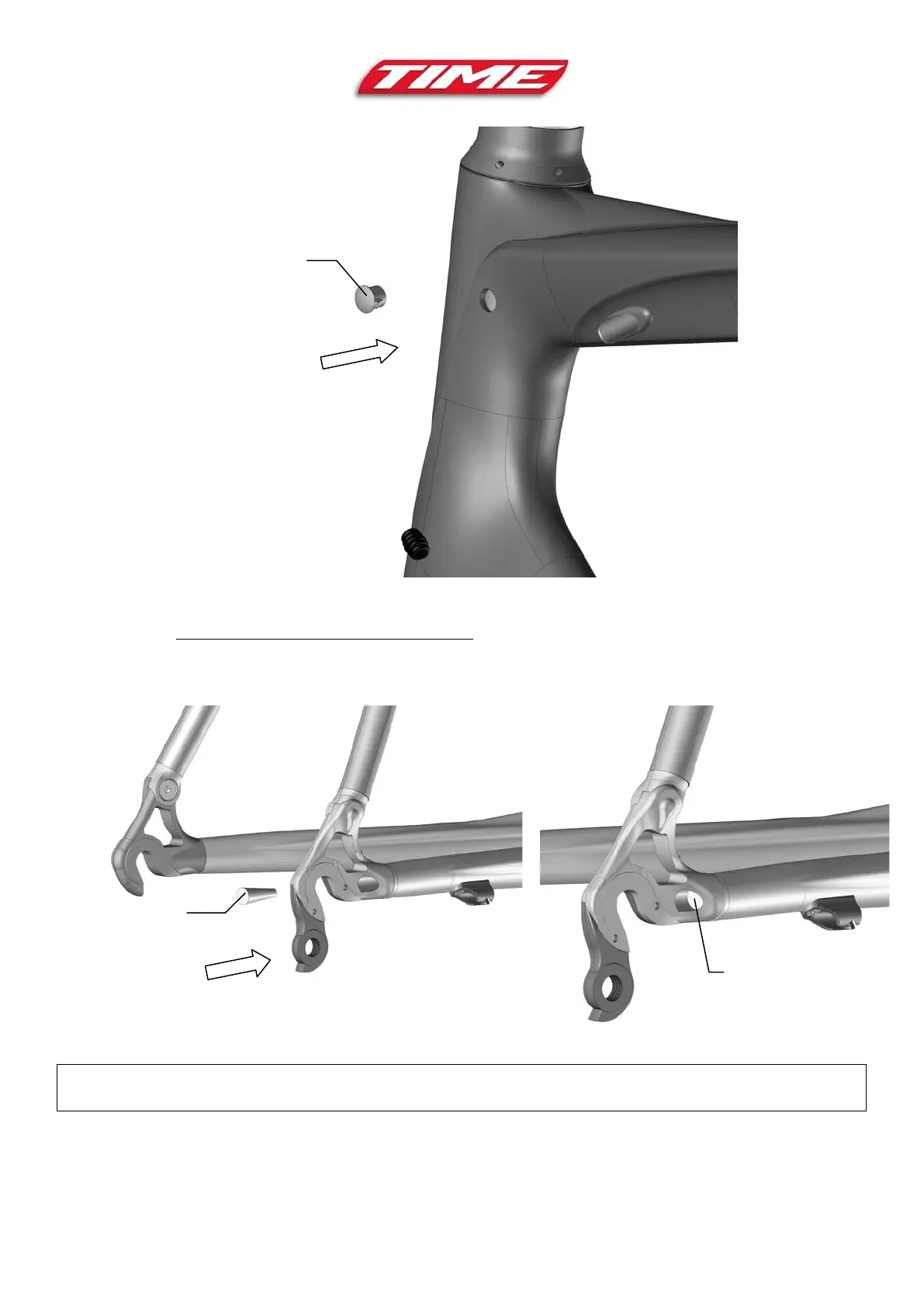

c) Installing the right-hand chain stay plug
To prevent water building up inside the frame, a tapered plug must be inserted in the rear right dropout
The plug must be installed in the hole used for the derailleur cable for electronic versions (Fig 12)
Important: the plug must not be driven in too far in the rear right hand dropout, otherwise it will not be
efficient
Figure 11
Plug
Ø 8
Tapered
plug
Plug in
place
Figure 12
