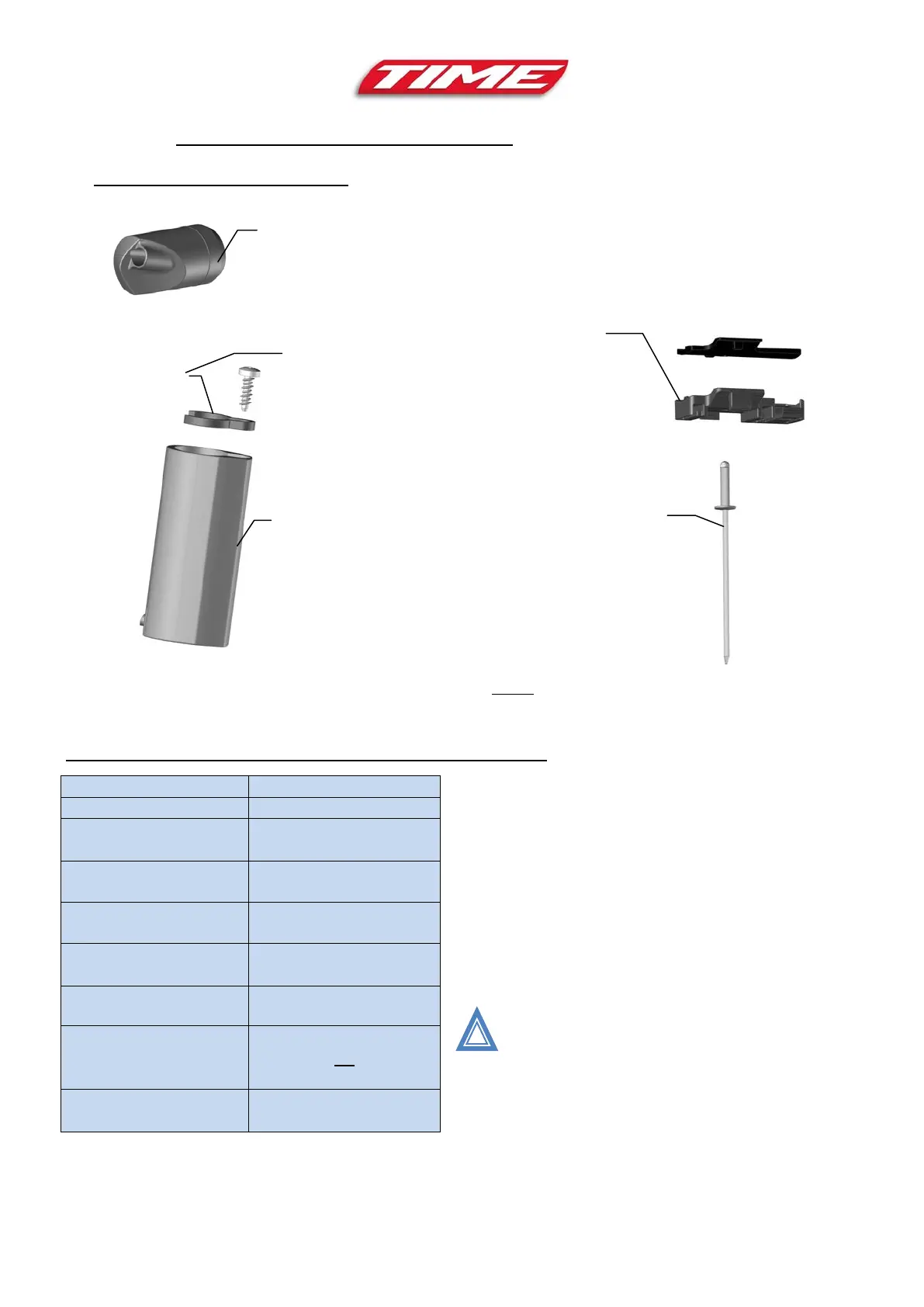

a) TIME Fluidity fitted to a SHIMANO Di2 groupset
Specific TIME components to use
Note: Junction B holder is only used with
TIME Monolink Full Carbon stems
Equipment not supplied and required for assembly (Shimano):
Other components are to be selected by the end user
in line with the intended use of the bicycle and must
be compatible with the wiring.
Description
SHIMANO P/N
Internal power unit
SM – BTR2
Seat post/power unit
cable
SM EW SD50IL 100
(1000 mm)
Down tube/bottom
bracket cable
SM-EW SD50IL 95
(950 mm)
Down tube/bottom
bracket cable
SM EW SD50IL 60
(600 mm)
Front derailleur cable
SM EW SD50IL 40
(400 mm)
Bottom bracket junction
box
SM-JC 41
Junction box to controls
SM-EW90-A (3 ports)
OR
SM-EW90-B (5 ports)
Shimano grommet
(Grommet)
SM-GM02
(2 parts)
JUNCTION B
holder
Rivet
Ø 2.4 x 8
Rear
dropout
joint
Screw
Clamp
Holder
