Installing the power unit on the seat post
The SHIMANO SM-BTR2 power unit must be assembled onto the TIME seat post using the supplied
Multi-Fit parts

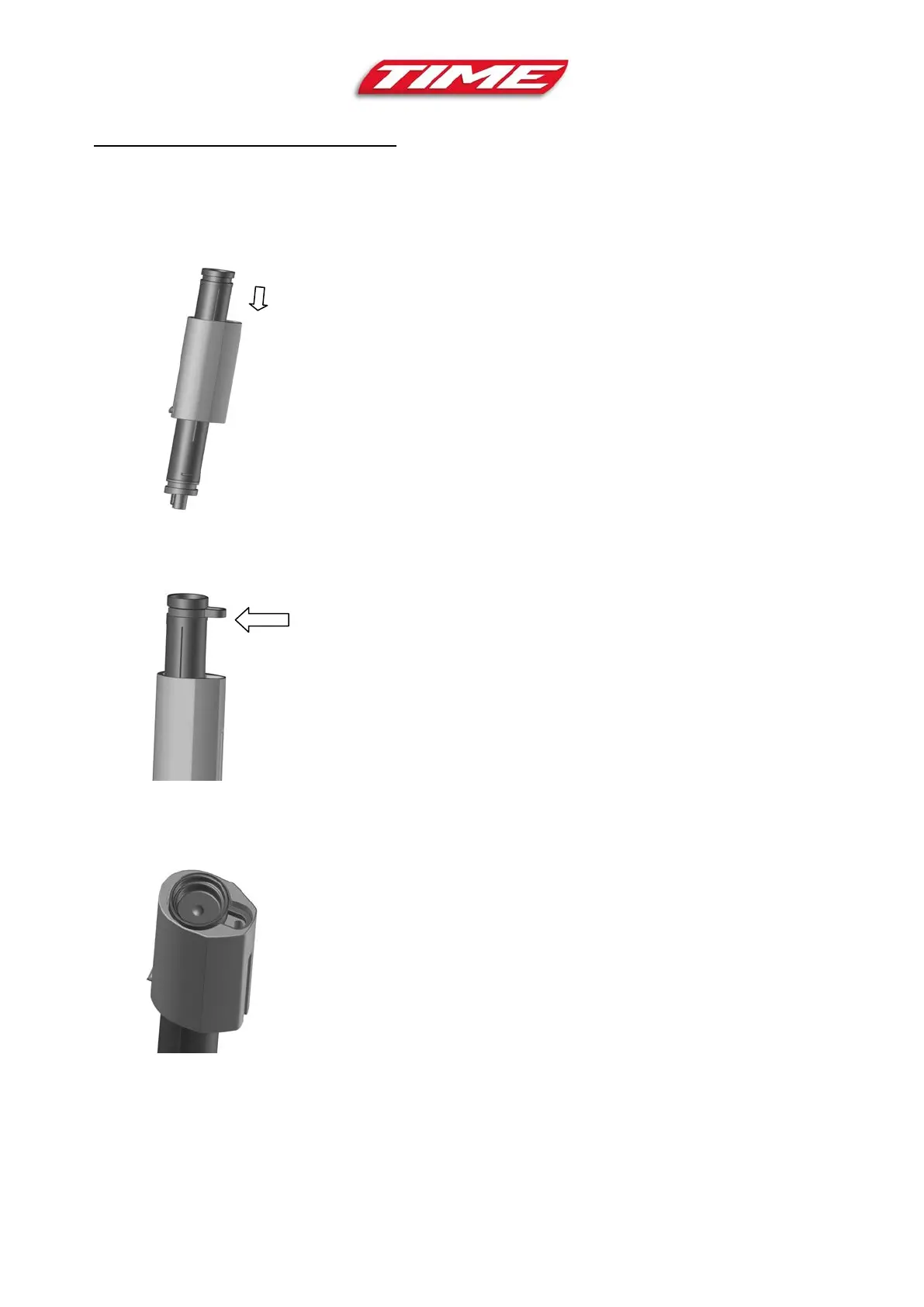

- Slide the SM-BTR2 power unit into the Multi-Fit holder (fig. 16)
- Lodge the clamp into the dedicated groove (fig. 17)
- Slide the power unit and clamp into the dedicated housing (fig. 18)
Figure 16
Figure 17
Figure 18
