Time Fluidity - Page 18

Fluidity 2014-2015
- 18 -

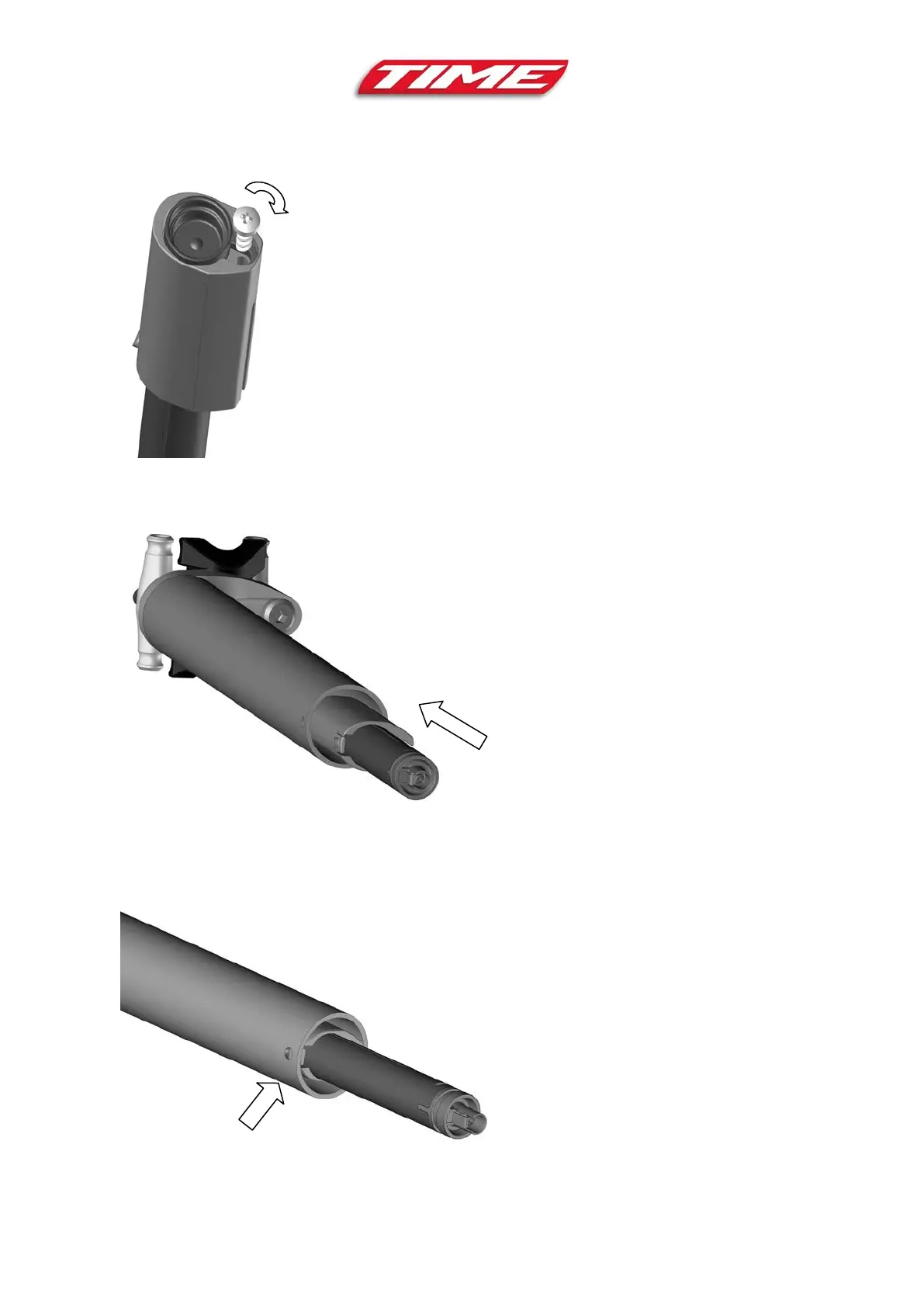

- Tighten the screw (moderately) (fig. 19)
- Slide the assembly into the seat post tube (fig. 20)
- Clip the assembly into the seat post tube hole (fig. 21)
Your SHIMANO SM-BTR2 power unit is now attached to the seat post
Figure 19
Figure 20
Figure 21
