Fluidity 2014-2015
- 19 -
Wiring EW-SD50 wires in the frame
Run cable SM-EWSD50IL95 (950mm long) through the down tube. Use the wire already routed
through the frame:
- Tie the connector to the end of the wire on the top of the down tube.
- Pull the wire towards the bottom bracket so as to replace it with the electric cable
Run cable SM-EWSD50IL100 (1000mm long) through the seat post. Use the wire already routed
through the frame:
- Tie the connector to the end of the wire towards the front derailleur.
- Pull the wire towards the bottom bracket so as to replace it with the electric cable
Run cable SM-EWSD50IL60 (600mm long) through the right hand chain stay. Use the wire already
routed through the frame:
- Tie the connector to the end of the wire towards the rear right dropout (rear derailleur).
- Pull the wire towards the bottom bracket so as to replace it with the electric cable
Run cable SM-EWSD50IL40 (400mm long) through the seat post. Use the wire already routed through
the frame:
- Tie the connector to the end of the wire towards the front derailleur.
- Pull the wire towards the bottom bracket so as to replace it with the electric cable

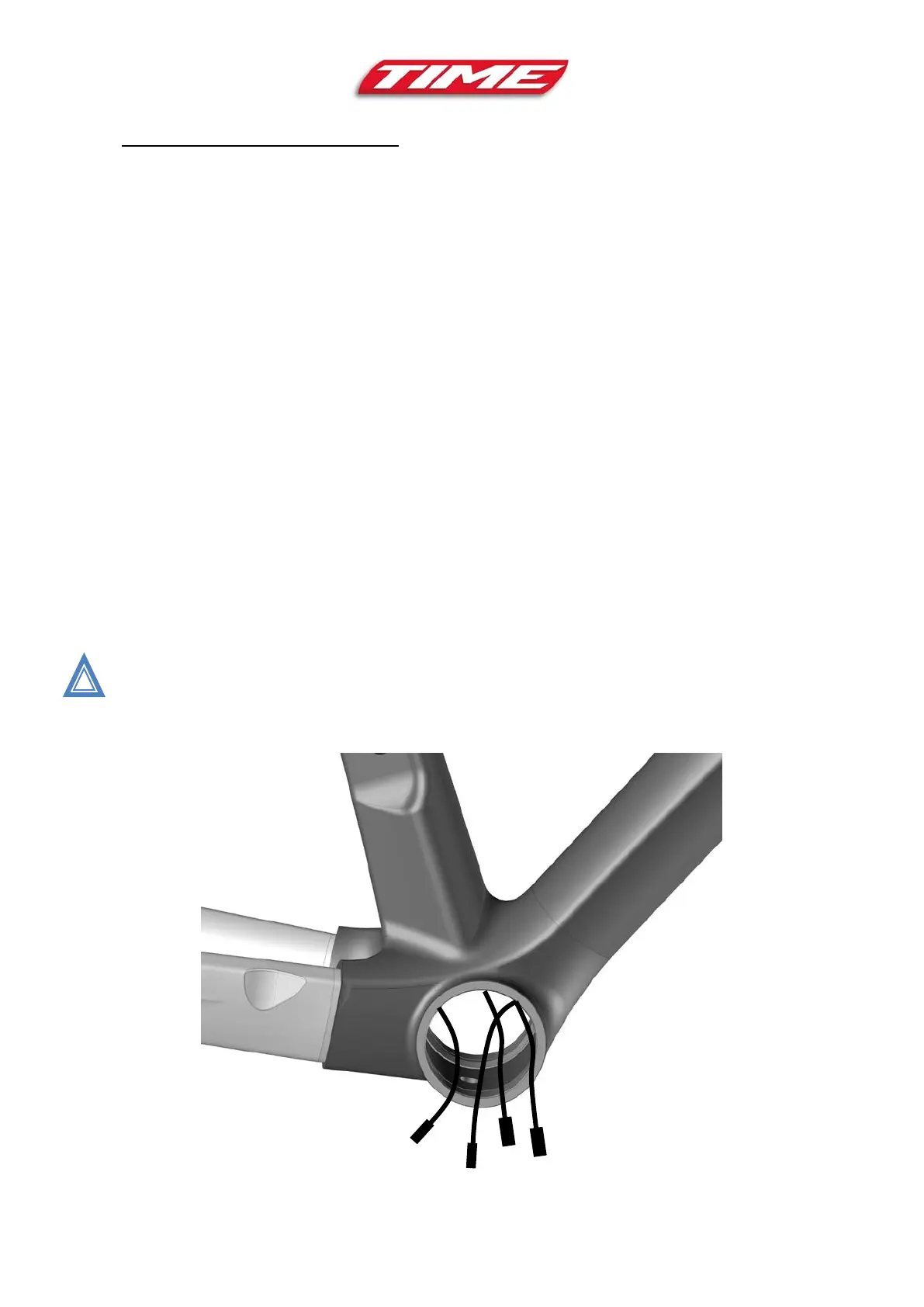

- You should now have four ends of electric cable EW-SD50 routed to the bottom bracket. (fig. 22)
