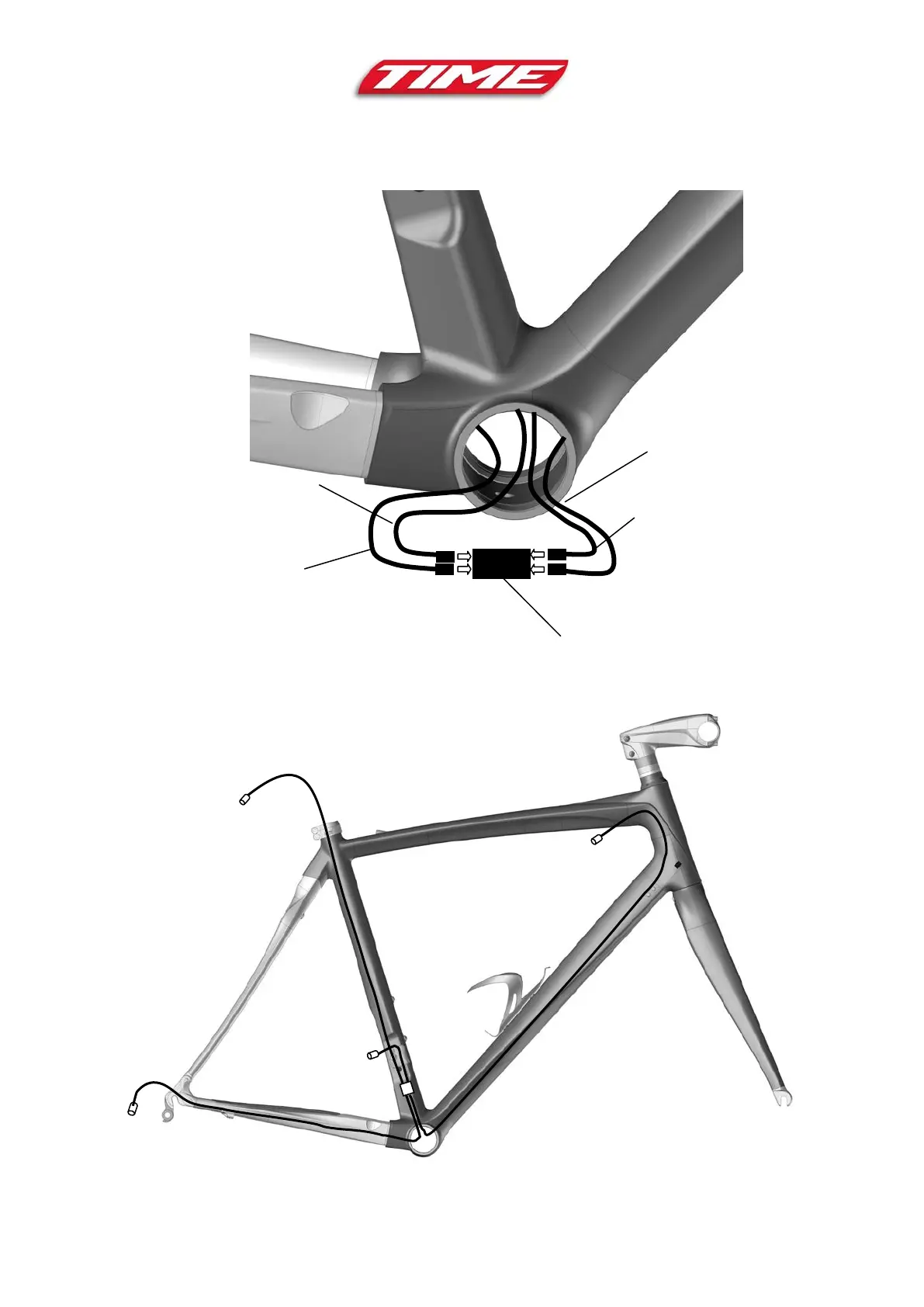

Connect element SM-JC41 to the four cables in the bottom bracket. Cable order is not important.

Preferably connect cable SM-EWSD50IL100 and cable SM-EWSD50IL40 to the same side of SM-

JC41. (fig. 23)

Now, run the connected SM-JC41 through the seat tube, routing the cables as follows: (fig. 24)

SM-JC41

EW-SD50IL40

EW-SD50IL100

EW-SD50IL95

EW-SD50IL60

Figure 23

Figure 24
