Fluidity 2014-2015
- 21 -

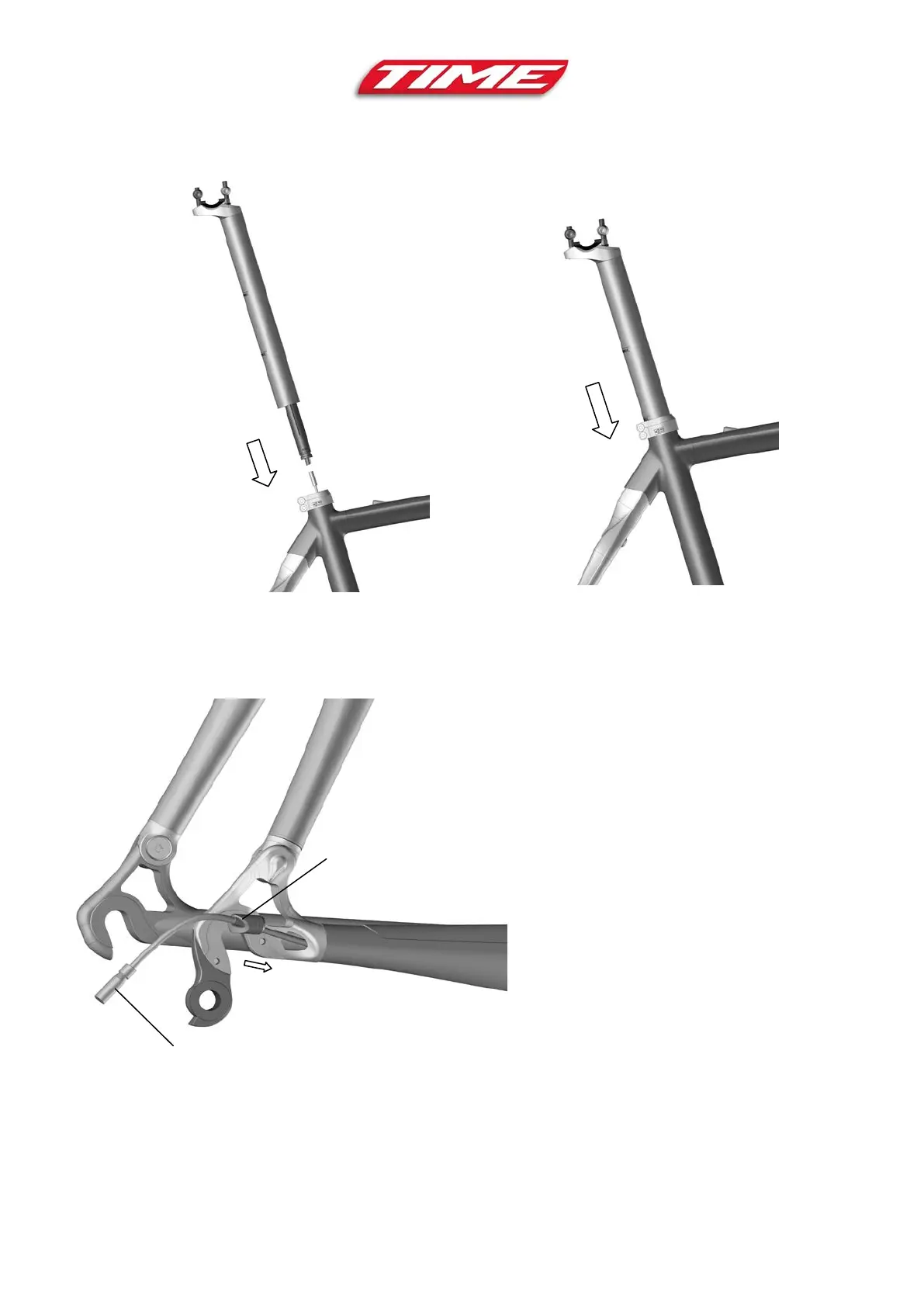

You can now connect the power unit to cable SM-EWSD50IL100, then attach the seat post to the seat
tube (fig. 25)
Fit the TIME dropout joint to the rear right dropout and the Shimano grommets to the inlet holes for the
front derailleur and junction wires (top of down tube).
(fig. 26 & 27)
Open the joint using the slot then slide the
part over the cable
Install the joint at the required distance
Slightly moisten or lubricate the joint so that
it slides more easily into its housing
