Position it correctly then push firmly into

place

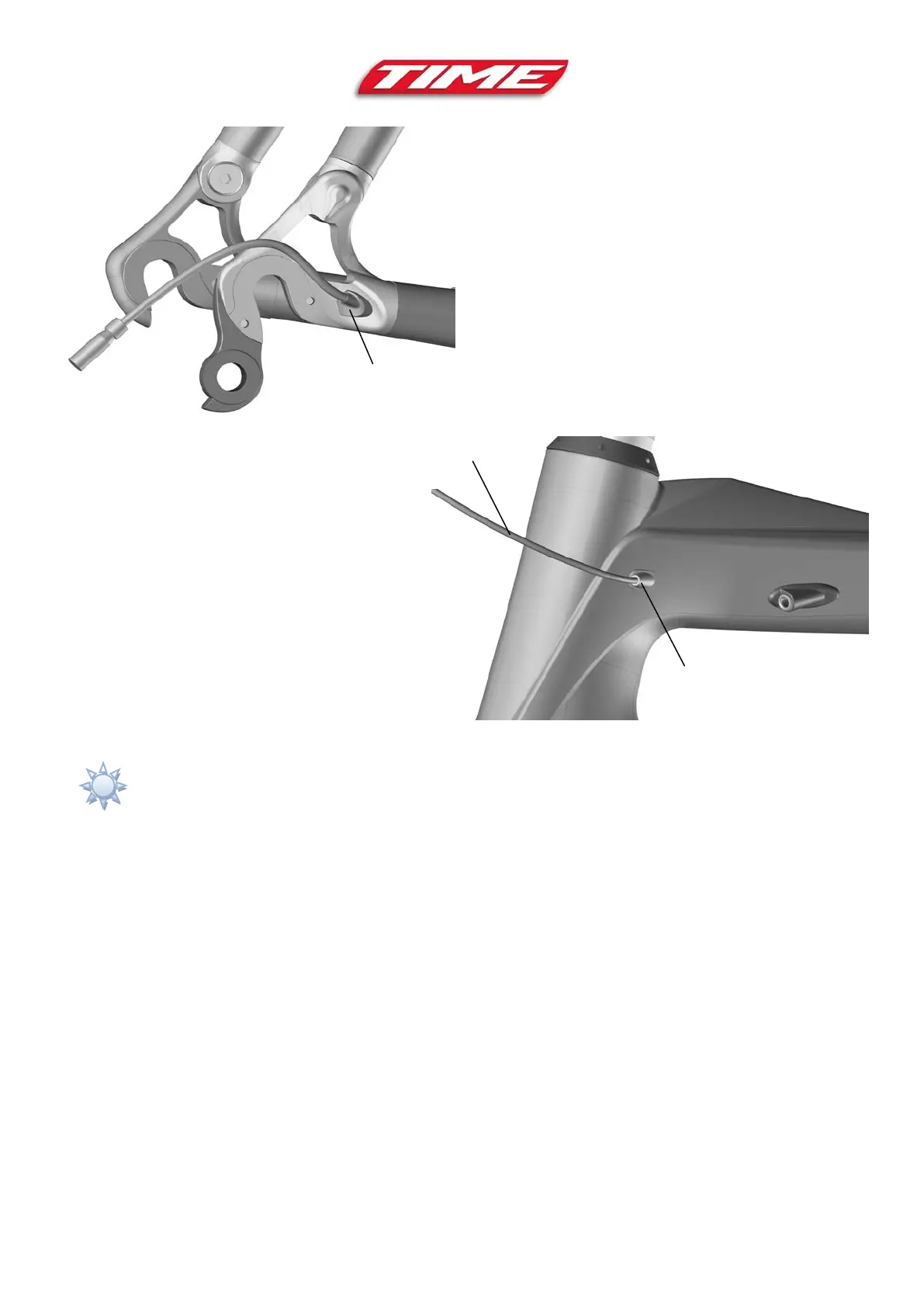

Assembling SHIMANO

grommets (fig. 28)

- Head tube

- Seat tube towards

front derailleur

dropout

The groupset is now ready to be installed. Refer to Shimano recommendations regarding derailleur installation

and adjustment procedures. Similarly, levers can be installed and the connection to cable SM-EWSD50IL95 (using

any harness compatible with Shimano) may be performed in line with Shimano procedures.

SM-GM02

Cable EW-SD50

Figure 28

Joint in

place

Figure 27
