SHIMANO Junction Box SM-EW90-A or SM-EW90-B assembly procedure
This procedure only involves Modules and Modules Plus delivered with a TIME MONOLINK
Ulteam stem.
For stems, TIME offers a solution for fitting the Junction B that eliminates the unsightly clamp
A Junction B holder and a rivet were supplied with your module.
TIME MONOLINK Ulteam stems are pre-bored to accommodate this assembly
Proceed as follows:

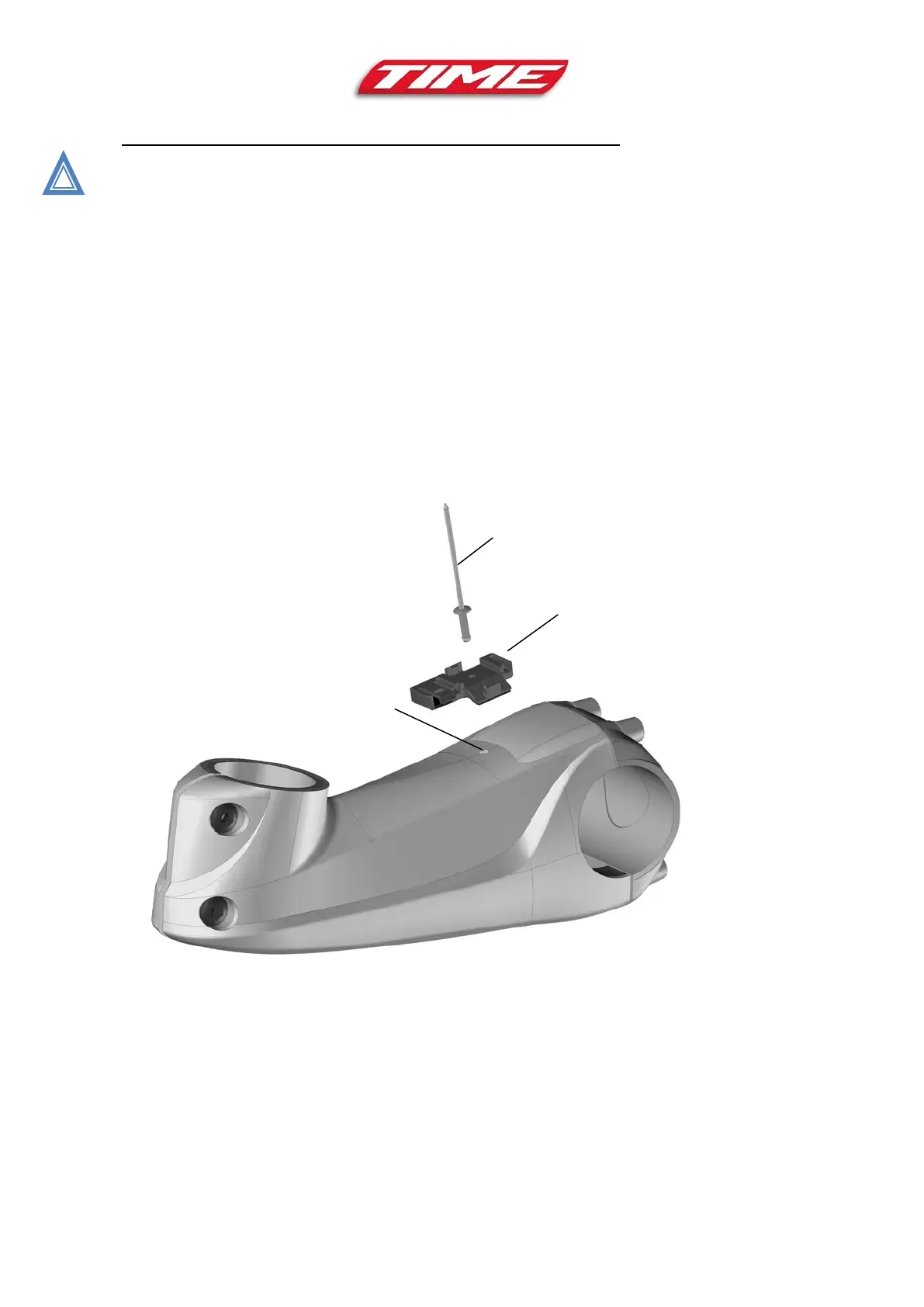

- install the parts (fig.29)
-
- rivet using suitable riveting pliers
