• Before positioning trailer to off load the commodity, conrm
overhead clearance is adequate to prevent the auger from
hitting power lines, trees, buildings, etc.
o Trailer must be positioned to sit level.
• Open the tarp on your Timpte trailer for ventilation.
• Verify that the hydraulic control levers are in the neutral position.
• Engage tractor wet kit, or self-contained power unit.
o Do not exceed 30 PGM ow.
• Adjust the incline conveyor to the desired height by moving
the vertical lift cylinder lever.
o Pull out to raise the incline conveyor, and push in to lower.
o See decal on side of trailer.
• Adjust the incline conveyor to the desired swing position,
side to side by moving the swing cylinder lever.
o Pull out to move the discharge to the
road side or toward you, and push to move
the discharge to the curb side or away
from you.
o See the decal on side of trailer.
• Adjust the incline conveyor to the desired position moving the
appropriate lever. See decal on the side of the trailer.
• Push the lever in to discharge the commodity thru the rear incline
conveyor.
• Pull the lever out to discharge the commodity out the bottom of the trailer
at the front of the horizontal conveyor.
• Open the trap door for the compartment that you want dis charged
(see section “EZ-Flow Door Operation”).
• When the trailer is unloaded, close the trap doors and stop the
conveyors by returning the appropriate lever to the center or neutral
position.
• Position the inclined conveyor to the lowest centered position
before transporting.
• Disengage the tractor wet kit or self-contained power unit to stop the
pumping of hydraulic uid.
TRAILER UNLOADING
Note: Timpte Trailers are designed to transport free owing commodity. Knock rails and pneumatic (air) hammer (vibra-
tor) options are available to be installed to assist with the unloading of commodity, if needed. Speak with a Timpte Sales
Representative with any questions you may have with respect to knock rails and pneumatic (air) hammer options.

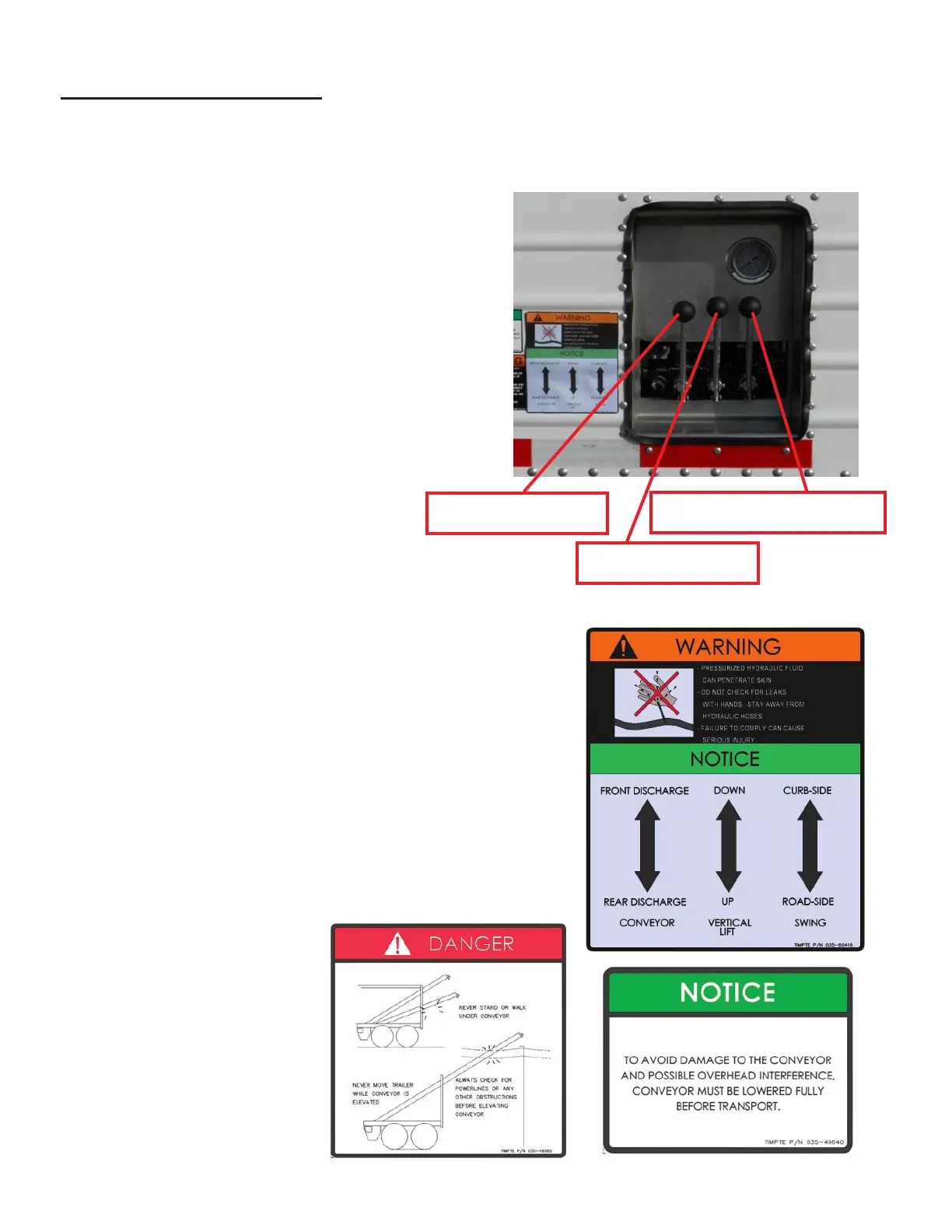

Conveyors On/O
Incline Raise/Lower
Incline Swing Side to Side
