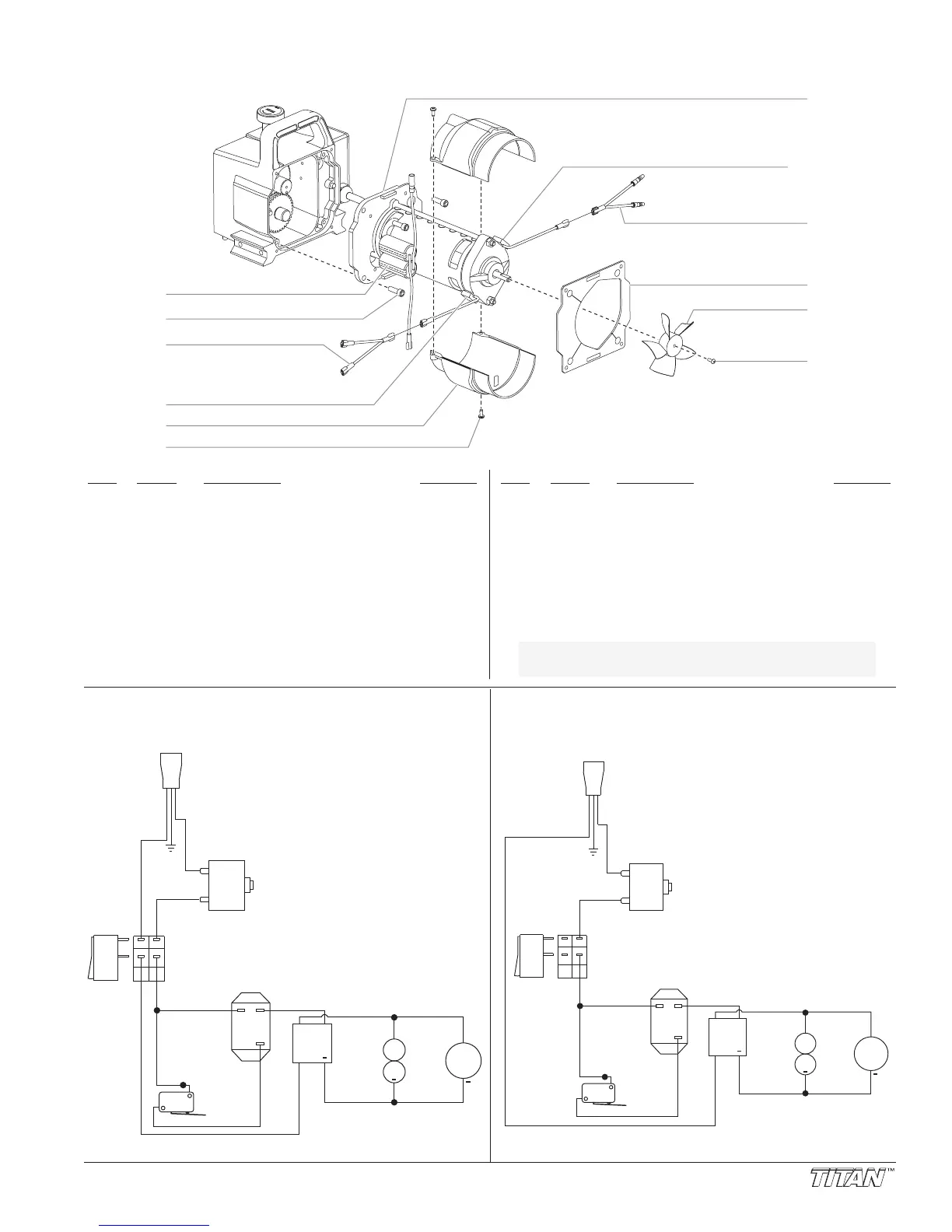

Titan 340 - Motor Assembly

© Titan Tool Inc. All rights reserved. 19
1
2
3
4
5
6
7
8
9
10
11
4
Motor Assembly
Item Part # Description Quantity
1 704-373 Capacitor/rectifier kit, 230V
(includes item 22 on page 21)....................1
704-363 Capacitor/rectifier kit, 110V
(includes item 22 on page 21)....................1
2 700-681 Screw..........................................................4
3 704-269 Y adapter (negative, black).........................1
4 704-276 Brush kit
(includes retainer caps) ..............................1
5 704-285 Shroud ........................................................2
6 704-322 Shroud screw..............................................2
Item
Part # Description Quantity
7 704-371 Motor, 230V, complete
(includes items 1, 5, 6, 10, and 11) ............1
704-277 Motor, 110V, complete
(includes items 1, 5, 6, 10, and 11) ............1
8 704-258 Y adapter (positive, red) .............................1
9 704-331 Gasket ........................................................1
10 704-250 Motor fan.....................................................1
11 854-915 Screw..........................................................1
12 770-099 Tie wrap (not shown) ..................................1
13 314-991 Tape (not shown) ........................................1
NOTE: All electrical work should be performed by
a Titan authorized service center.
Electrical Schematic, 230V Electrical Schematic, 110V
AC
AC
+
+
+
Switch
Blue
Circuit
Breaker
Brown
Capacitors
Rectifier
Plug
Motor
Motor
Starter
Micro Switch
(Pressure
Control)
AC
AC
+
+
+
Switch
White
Circuit
Breaker
Black
Capacitors
Rectifier
Plug
Motor
Motor
Starter
Micro Switch
(Pressure
Control)
