Titan 340 - Fluid Section Assembly (P;N 704-445)

22 © Titan Tool Inc. All rights reserved.

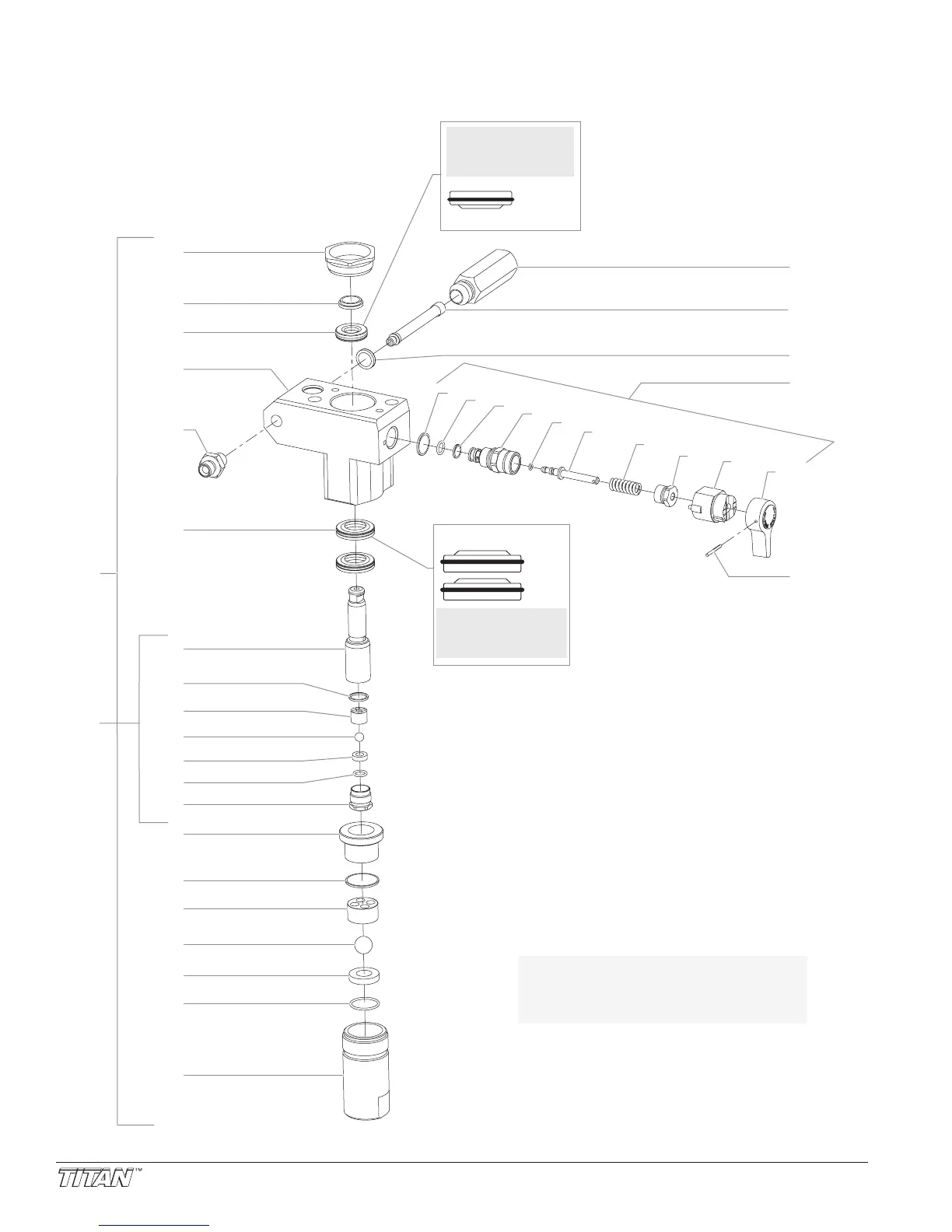

Fluid Section Assembly (P/N 704-445)
1
2
26
3
*4
*5
6
7
*8
*10
11
13
*14
15
16
*17
18
*19
20
*21
22
*12
9
25
37
24
23
27
28
29
30
31
32
33
34
35
36
Install lower packings
with raised lip and
O-ring facing up.
Install upper packing
with raised lip and
O-ring facing down.
O-Ring
O-Ring
Raised Lip
Raised Lip
NOTE: Packing kit P/N 703-401 includes those
items marked with an *. Also included are
packing grease P/N 700-203 and piston guide
tool P/N 700-793.
