Titan 340 - Suction Set Assembly; Stand Assembly

© Titan Tool Inc. All rights reserved. 21
Item Part # Description Quantity
1 700-139 Screw........................................................10
2 704-019 Front cover..................................................1
3 704-173 Crankshaft/gear assembly..........................1
4 704-174 Thrust washer.............................................1
5 704-176 2nd stage gear............................................1
6 704-406 Pump housing.............................................1
7 700-735 Connecting rod ...........................................1
8 704-102 Pressure control knob.................................1
9 704-124 Retainer ring ...............................................1
10 704-123 Spring .........................................................1
11 704-158 Plunger .......................................................1
12 704-128 Microswitch .................................................1
13 765-063 Strain relief, 230V .......................................1
14 704-500 Power cord, 230V .......................................1
704-515 Power cord, 110V (includes item 13)..........1
15 704-229 Ground screw .............................................1
16 704-122 Screw..........................................................2
17 704-408 Transducer assembly .................................1
Item
Part # Description Quantity
18 704-439 Transducer o-ring, PTFE............................1
19 800-038 Motor starter, 230V .....................................1
800-044 Motor starter, 110V .....................................1
20 704-126 Lock washer................................................2
21 730-260 Screw..........................................................2
22 704-323 Screw..........................................................1
23 704-169 MIcroswitch mounting plate ........................1
24 704-125 Washer........................................................2
25 700-785 Lock washer................................................2
26 704-380 ON/OFF switch ...........................................1
27 800-377 Circuit breaker, 230V ..................................1
704-211 Circuit breaker, 110V
28 710-127 Set screw....................................................1
29 704-373 Capacitor/rectifier kit, 230V
(includes item 22) ........................................1
704-363 Capacitor/rectifier kit, 110V
(includes item 22) .......................................1
30 704-441 Electrical box cover ....................................1

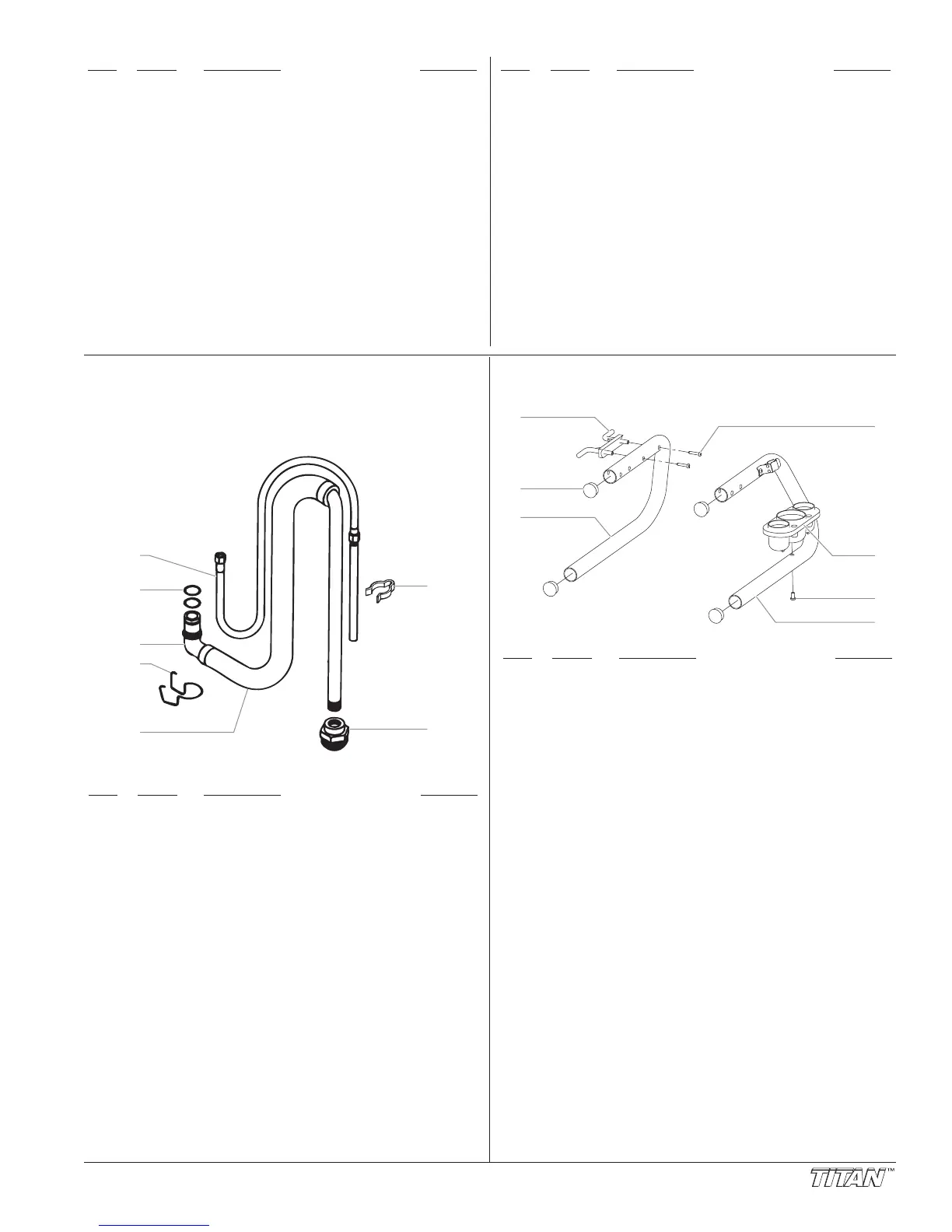

Suction Set Assembly
(P/N 704-300)
Item Part #
Description Quantity
1 704-263 Return tube assembly.................................1
2 704-121 O-ring..........................................................2
704-109 O-ring (for hot solvents, optional)
3 700-1024 Elbow ..........................................................1
4 704-127 Retaining clip ..............................................1
5 700-1023 Siphon hose
(includes items 2–4, and 7) ........................1
6 704-391 Clip..............................................................1
7 700-805 Inlet screen .................................................1
1
3
6
2
4
5
7
Stand Assembly
Item Part # Description
Quantity
1 700-761 Cord wrap ...................................................1
2 710-199 Plug.............................................................4
3 704-164 Leg, left.......................................................1
4 700-642 Screw..........................................................2
5 700-1043 Drip cup ......................................................1
6 704-188 Screw..........................................................1
7 704-156 Leg, right.....................................................1
704-179 Leg, left, complete
(includes items 1, and 2–4)
704-178 Leg, right, complete
(includes items 2 and 5–7)
1
3
2
4
5
6
7
