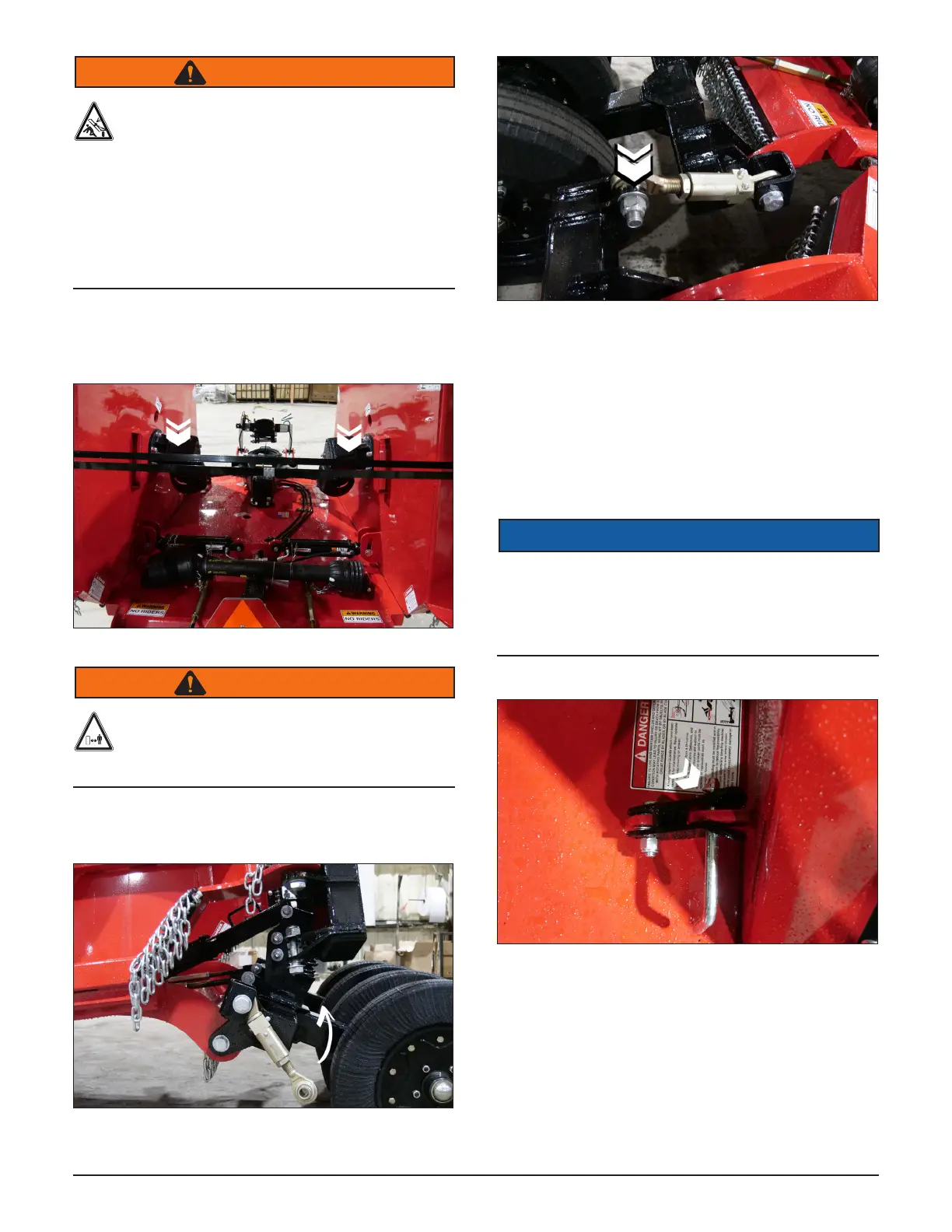

3515 Flex-Wing Rotary Cutter 28 Titan Implement, LLC
February 2020 (423) 334-0012
Unexpected Movement
The cutter is shipped with the wings in the
upright position. If the wing uplock pins are
not in place, and the banding between the tailwheel
tubes is cut, the wings will free-fall due to air in the
hydraulic system. To avoid death or serious injury
from being struck by a wing, stay clear of the wings.
Purge all air from the hydraulic system, and do not
remove the wing uplock pins until necessary to do
so.
6. Cut the banding between the tailwheel tubes. The
tailwheels will swing freely when the banding is cut.
Stand clear to avoid being struck by a tailwheel.
Stay Clear
The tailwheels will swing freely when the
banding is cut. To avoid injury from being
struck by a tailwheel, stay clear of the tailwheels.
7. Rotate the tailwheel arms to align the holes with the
clevis eye. Insert the bolt and reinstall the nut.
5.3.2 Leveling the Wing Decks
Each wing section will need adjusting if the wing top is
not level with the center deck top when the wings are
unfolded.
1. Start the tractor and cycle the wing lift control lever
several times to purge any trapped air and charge
the hydraulic cylinders.
The cutter does not have a hydraulic reservoir and
therefore can deplete the oil in the tractor’s reservoir
during initial charging of the cylinders. Check the
tractor’s hydraulic oil reservoir after this initial setup and
add oil as necessary.
2. Remove the wing uplock pins.
