3. Discontinue operation and allow the clutch to
cool completely.
4. After the clutch has cooled, tighten all the adjusting
bolts evenly and proceed with the regular clutch
adjusting procedures, as described above.
9.10 Slip Clutch Adjustment
The slip clutches are factory preset to the correct
torque for protecting the implement and tractor.
Periodic adjustment is recommended. Should
adjustment be needed, follow this procedure:
1. Check to be sure all spring lengths are the same.
Initial spring length is shown in the chart.

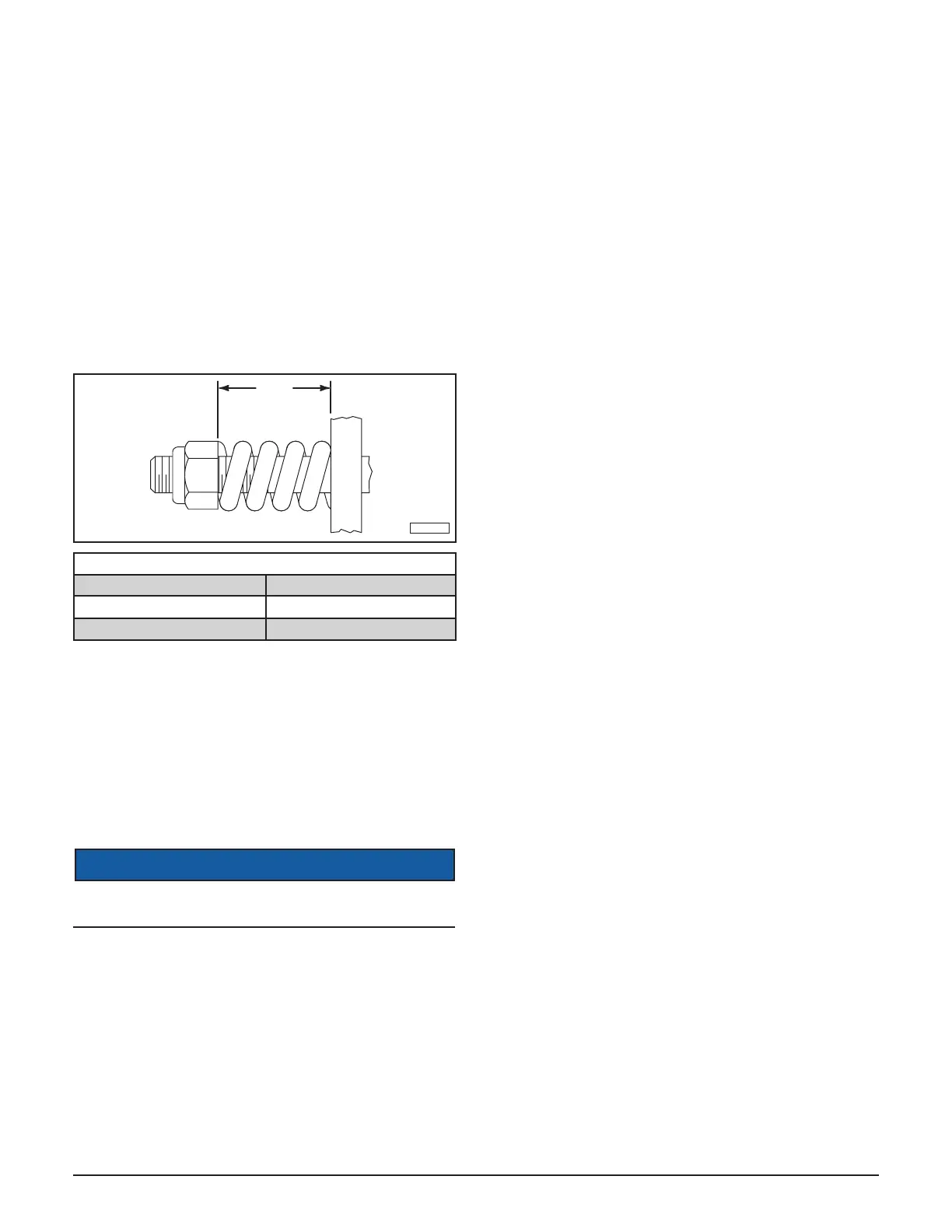

TI-00102
SEE
CHART
CLUTCH SPRING LENGTH CHART
EG / COMER BONDIOLI & PAVESI
1.27” (32.2mm) 1.15” (29.3mm)
1.28” (32.4mm) 1.12” (28.5mm)
2. If necessary, adjust the nut on any spring that is
unequal. Adjust all eight spring retaining nuts 1/3 of
a turn (two ats on a nut) and check clutch slippage.
3. If further adjustment is necessary, adjust in 1/3
turn increments. Adjust only to provide sucient
torque to prevent slippage under normal conditions.
Occasional slippage is normal for drive train
protection. If satisfactory results cannot be
obtained, consult your authorized dealer.
Do not overtighten and cause the spring to become
solid, as this will cause shaft failure.
