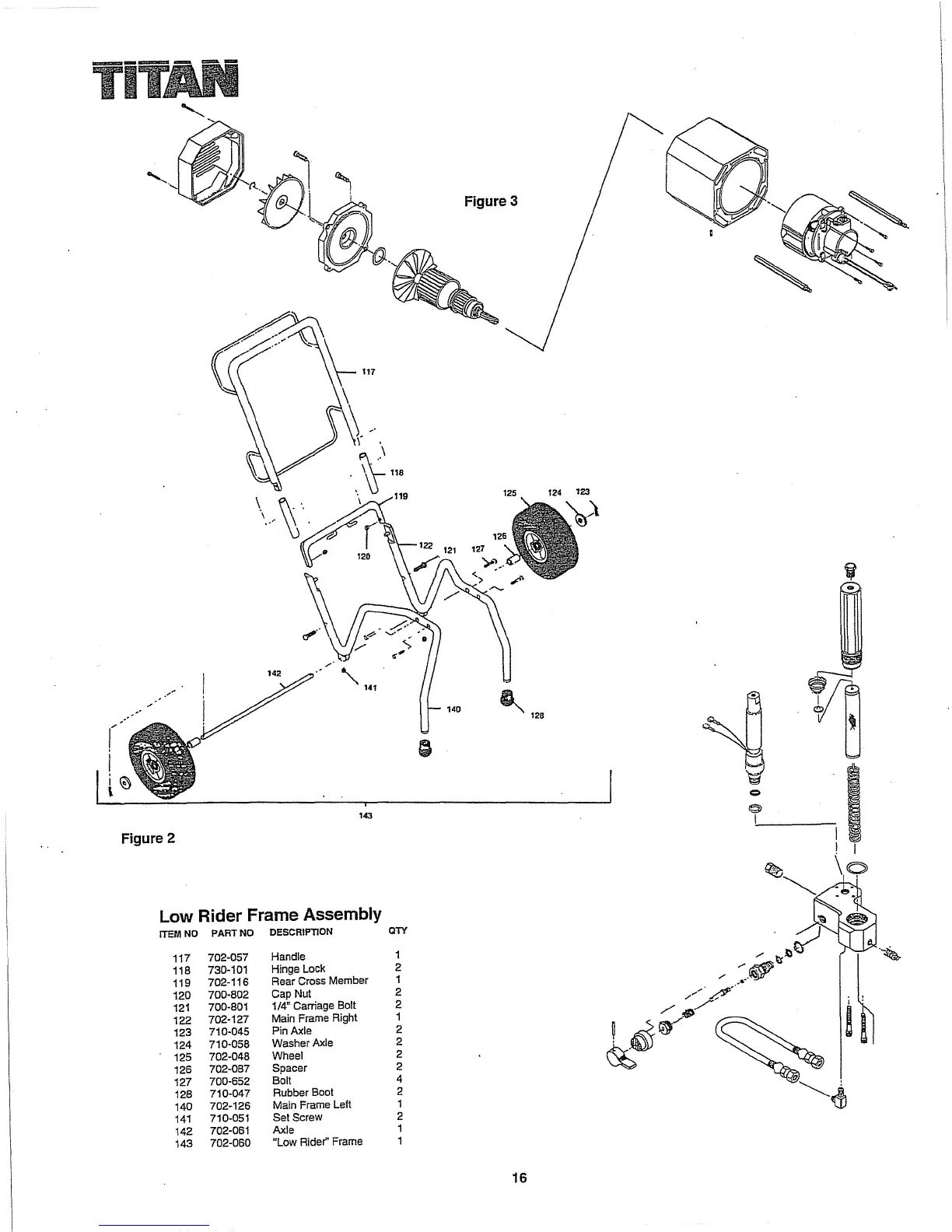

Titan Epic 660ex - Low Rider Frame

Figure 3
~ ·~
: I
I ~
I .
! I
143
Figure 2
~~
/ ~~·~
/ ---.~11!
Low Rider Frame Assembly
ITEM NO
PART NO
DESCRIPTION
QTY
117
702-057
Handle
1
118
730-101
Hinge Lock
2
119
702-116
Rear Cross Member
1
120
700-802
Cap
Nut
2
121
700-801
1/4"
Carriage Bolt
2
122
702-127
Main Frame Right
1
123
710-045
Pin Axle
2
124
710-058
Washer Axle
2
125
702-048
Wheel
2
~:
~
126
702-087
Spacer
2
127
700-652
Bolt
4
128
710-047
Rubber Boot
2
140
702-126
Main Frame Left
1
141
710-051
SetScrew
2
142
702-061
Axle
1
143
702-060
"Low Rider"
Frame
1
