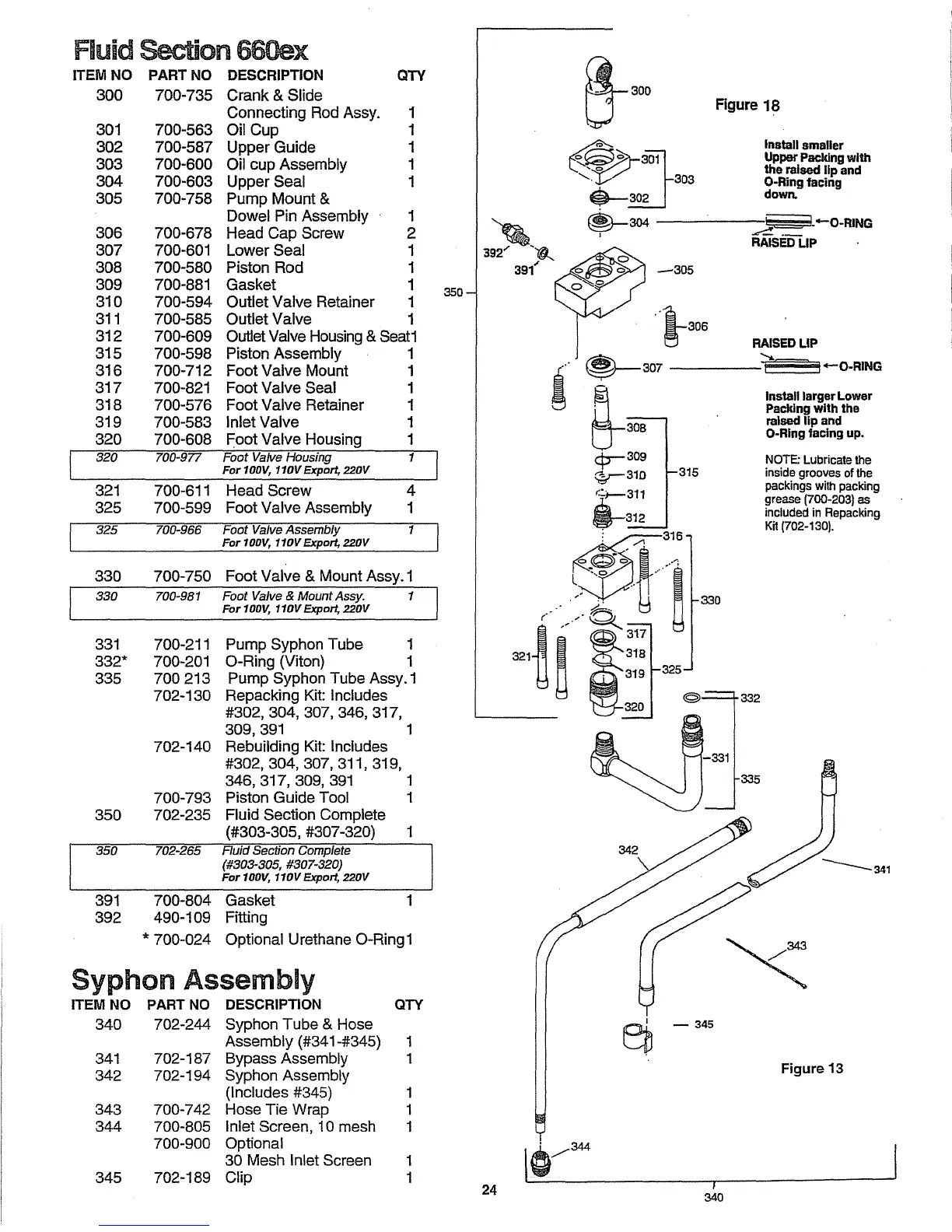

Titan Epic 660ex - Fluid Section; Syphon Assembly

Fluid Section 660ex
ITEM NO PART NO DESCRIPTION QTY
300 700-735 Crank & Slide
Connecting Rod Assy. 1
301 700-563 Oil Cup 1
302 700-587 Upper Guide 1
303 700-600 Oil cup Assembly 1
304 700-603 Upper Seal 1
305 700-758 Pump Mount &
Dowel Pin Assembly 1
306 700-678 Head Cap Screw 2
307 700-601 Lower Seal 1
308 700-580 Piston Rod 1
309 700-881 Gasket 1
310 700-594 Outlet Valve Retainer 1
311 700-585 Outlet Valve 1
312 700-609 Outlet Valve Housing & Seat1
315 700-598 Piston Assembly 1
316 700-712 Foot Valve Mount 1
317 700-821 Foot Valve Seal 1
318 700-576 Foot Valve Retainer 1
319 700-583 Inlet Valve 1
320 700-608 f:oot Valve Housing 1
320 700-977 Foot Valve Housing
For 100V, 110V Export, 220V
321 700-611 Head Screw 4
325 700-599 Foot Valve Assembly 1
325 700-966 Foot Valve Assembly 1
For 100V, 110V Export, 220V
330 700-750 Foot Valve & Mount Assy.1
330
331
332*
335
350
350
700-981
Foot Valve & Mount Assy. 1
For 100V, 110V Export, 220V
700-211 Pump Syphon Tube 1
700-201 0-Ring (Viton) 1
700 213 Pump Syphon Tube Assy.1
702-130 Repacking Kit: Includes
#302,304,307,346,317,
309,391 1
702-140 Rebuilding Kit: Includes
#302,304,307,311,319,
346,317,309,391 1
700-793 Piston Guide Tool 1
702-235 Fluid Section Complete
(#303-305, #307-320) 1
702-265 Fluid Section Complete
(#303-305, #307-320)
For 100V, 110V Export, 220V
391 700-804 Gasket 1
392 490-109 Fitting
* 700-024 Optional Urethane O-Ring1
Syphon Assembly
ITEM NO PART NO DESCRIPTION QTY
340 702-244 Syphon Tube & Hose
Assembly (#341-#345) 1
341 702-187 Bypass Assembly 1
342 702-194 Syphon Assembly
(Includes #345) 1
343 700-742 Hose Tie Wrap 1
344 700-805 Inlet Screen, 1 0 mesh 1
700-900 Optional
30 Mesh Inlet Screen 1
345 702-189 Clip 1
~-
392 .... ~
39{
350
24
~~
~~:J-01
-......~/ 303
0--302
Figure 18
Install smaller
Upper
Packing with
the raised lip and
0-Ring facing
down.
®---304 -----~.+-0-RING
I RfiSEo-LIP
-305
RAISED LIP
.......
----- 'E:=~ -O-RING
315
330
-345
j
340
332
Install larger Lower
Packing with the
raised lip and
0-Ring facing up.
NOTE: Lubricate the
inside grooves of the
packings with packing
grease (700-203) as
included in Repacking
Kit (702-130).
Figure 13
