Titan Epic 660ex - Filter Block

Epic 660ex
Filter Block
ITEM No
PART No DESCRIPTION
QTY
~
201 710-069
Plug
2
-201
202 702-011 Maxi Filter HSG
1
203 730-Q83 Filter Spring
CD
1
204 73Q-067 Filter Cartridge
1
205 757-105
Filter Core
1
206 702-303
0-Ring
1
207 702-009 FilterHSG
1
-202
210 702-251 Adapter
1
212 730-262 1/4-20 UN Screw
2
214
570-008 1/4" Nipple
1
215 700-537 Gasket
1
216
221-012 . 0-Ring
1
217
222-012 0-Ring
1
218
700-246 Bypass Housing
1
(includes #216 & #217)
t
-204
219*
700-721
#005 0-Ring
220
700-250
Bypass Valve Stem
222
70Q-244 Spring
224 700-248 Bypass Valve
Retainer
225 700-252
Bypass Cam Base
1
226 700-759
Dowel Pin
1
232-0
227 700-697
Bypass Valve Handle
1
233-@
-205
230 700-258
Bypass Valve Assembly
1
I
2·
231 702-250
Pressure Control
1
(Includes #232 & #233)
232
700-499
0-Ring
233
700-881 Gasket
240
702-305
Filter HSG Assembly
201-~
-206
(Excludes Item #212,
~
#231, #232, #233)
241 490-106 Elbow
1
242 316-516
Hose
1
700-897 Optional Teflon
1
--207
0-Ring
700-890
Bypass 0-Ring Tool
r14
-~.
'
!
212
~

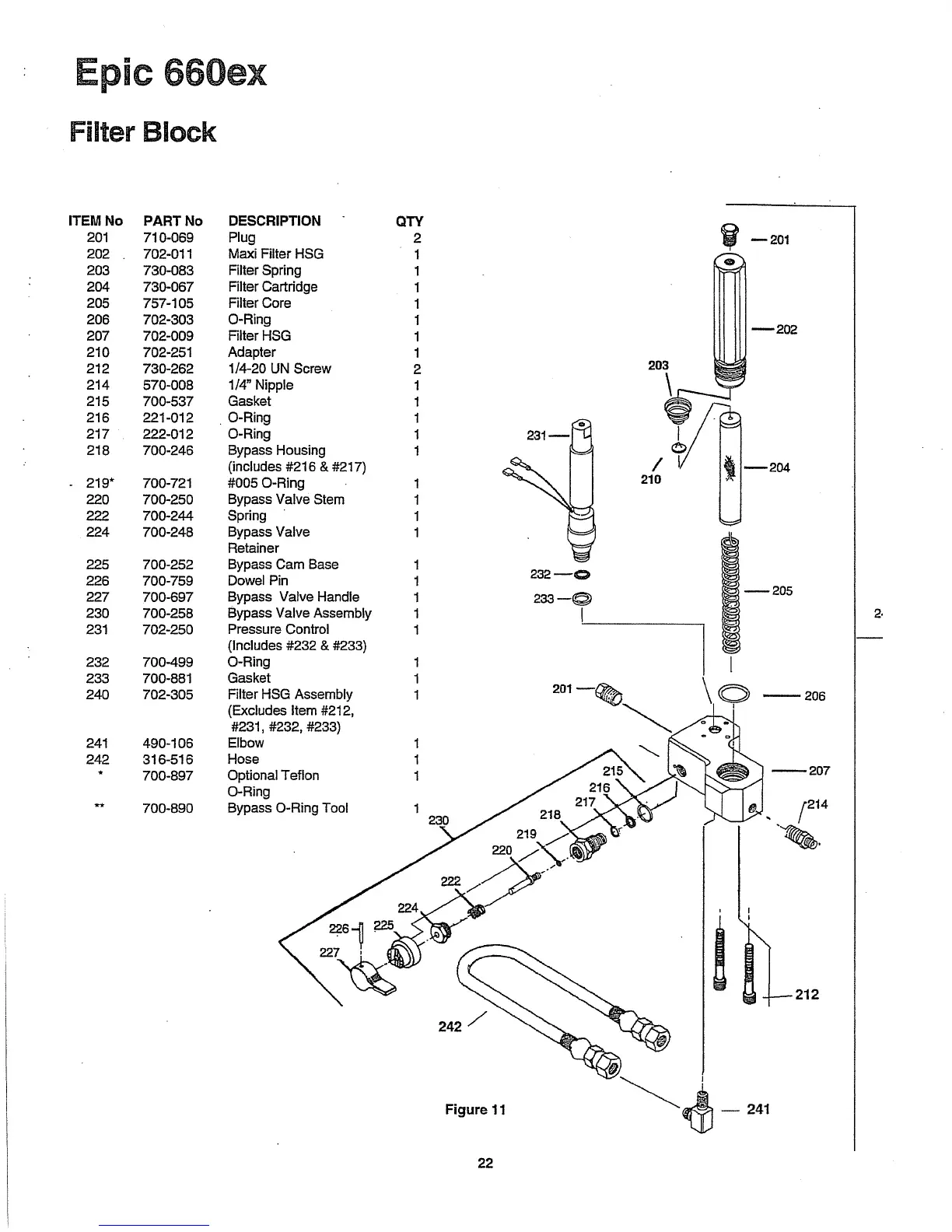

Figure 11
~~-241
22
