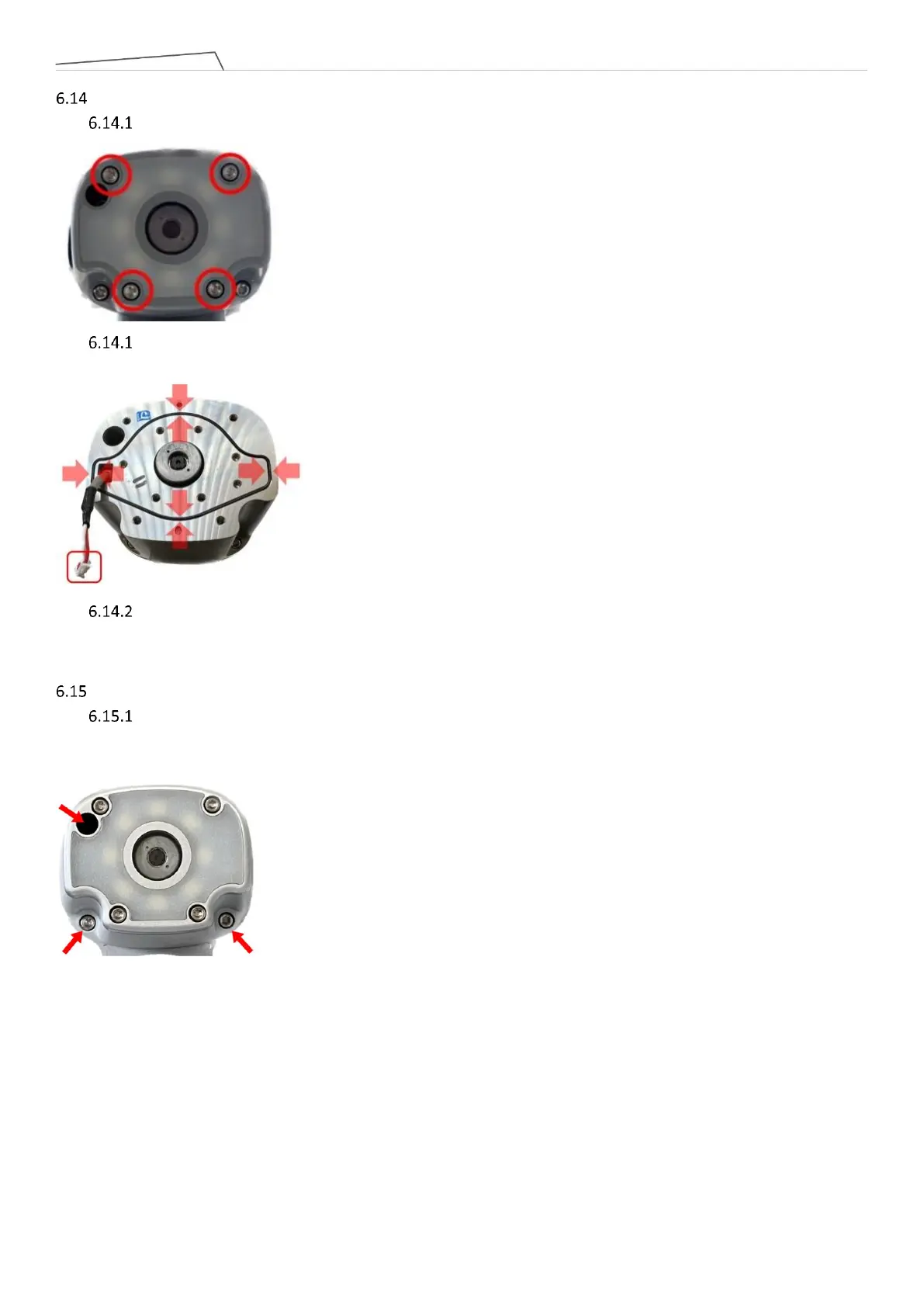

Disassembly and assembly Light module
Refer to the picture below to remove the four screws securing the camera light source module.
Unplug the power cable of the light source module and remove the light source module, being careful
not to let the O-ring fall off.
During the assembly of the End module, please follow the reverse steps of the previously mentioned
procedure.
Disassembly and assembly Camera module
Loosen the three M3L10 screws on the camera module, separate the camera module casing from the End
module. The torque during assembly is 10 kgf·cm.
