Disassembly/Assembly of Inner Casing
Refer to "Open the Control Box Outer Casing" to open the outer casing cover and inner casing cover
Refer to "Disassembly/Assembly of Robot Connector and Internal Composite Cable" to remove the Robot
connector and internal composite cable.
Refer to "Disassembly/Assembly of the Patriot Power Board" to remove the "To Power eater board B"
connector.
Refer to "Disassembly/Assembly of the Patriot Power Board" to remove the "To Power eater board B"
connector.
Refer to "Disassembly/Assembly of the Patriot Power Board" to remove the "To Control box fan"
connector.
Refer to "Disassembly/Assembly of the Relay Board" to remove the "From external power (AC IN)"
connector.

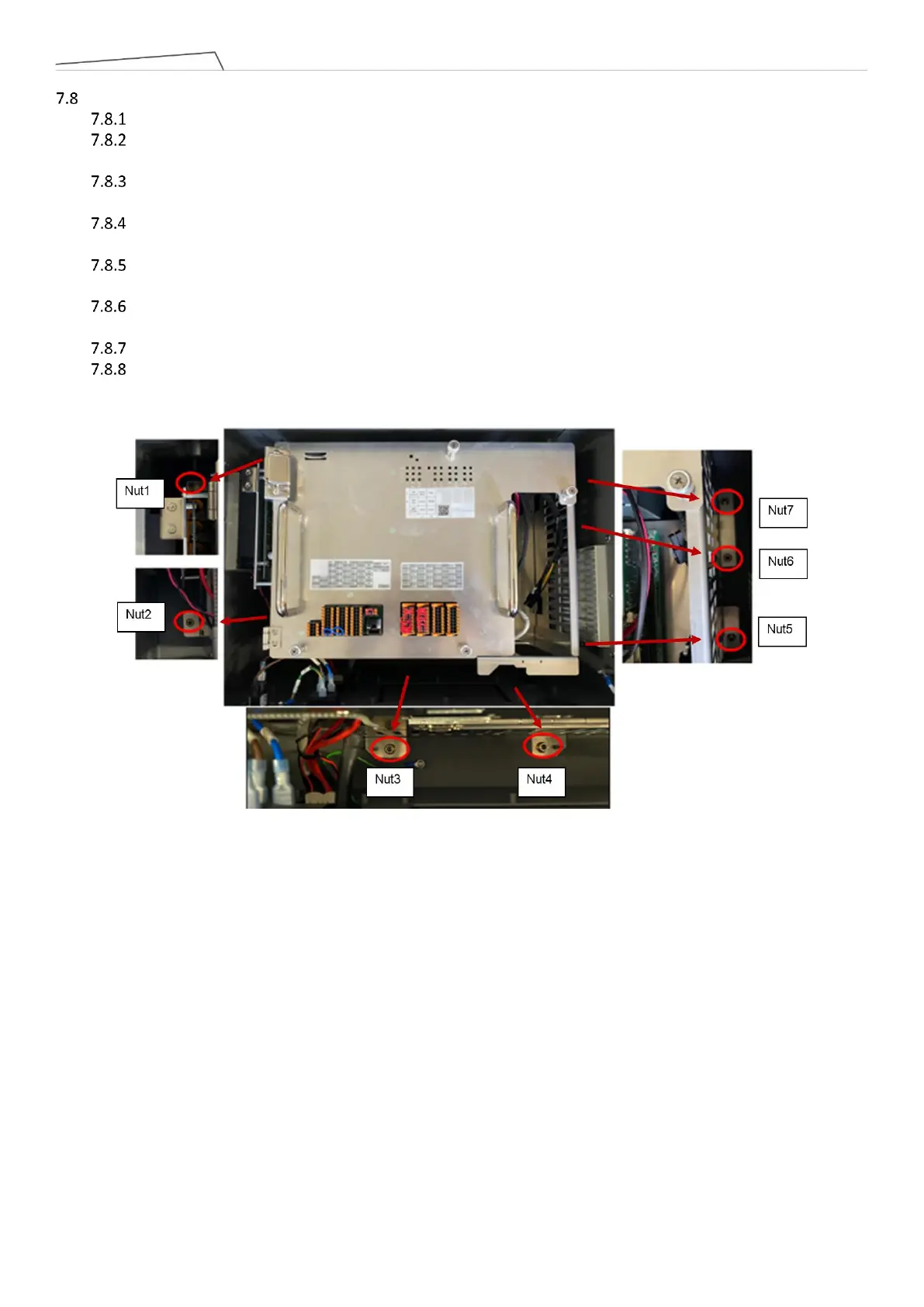

Refer to the diagram below to remove the 7 inner casing securing nuts and take out the inner casing.
During installation, follow the reverse steps of the above procedure. If cable ties were cut, secure the
wires again in the original manner
