Toa IP-A1SC15 - Nomenclature and Functions

6

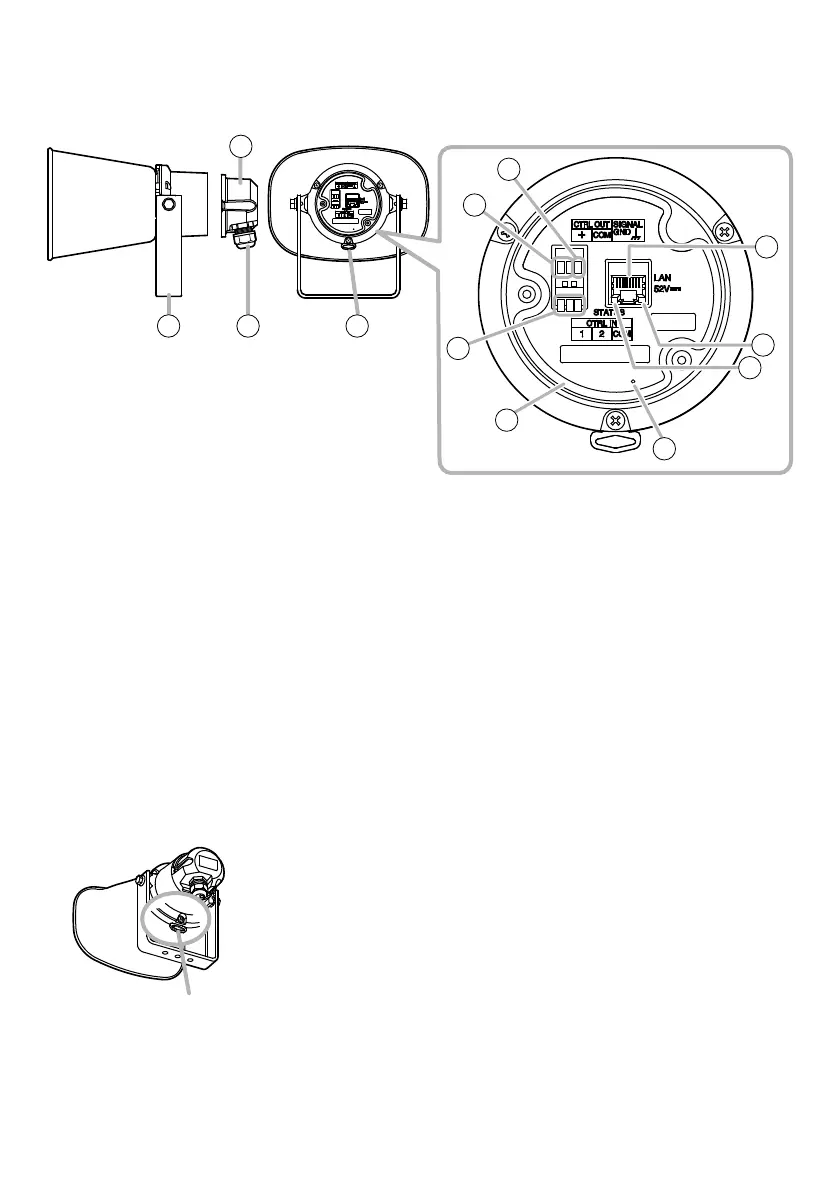

4. NOMENCLATURE AND FUNCTIONS
 [Side] [Rear](withrearcoverremoved)]
1.Mountingbracket
Used to securely mount the speaker to a wall
or ceiling.
2.Rearcover(accessory)
This weatherproof cover protects the cable
connection parts from the elements.
3. Sealing nut
Functions as a weatherproof cable inlet.
4.Safetywireattachmentring
Used as an attachment point for safety wire
to prevent the speaker from accidentally
falling.
(See "INSTALLATION PRECAUTIONS" on p.
8.)
Safety wire attachment ring
5.Controloutputterminals
Allows control of external equipment in
synchronization with speaker operation.
6.Functionalgroundterminal
If excessive noise is produced when the
speaker is connected to external equipment,
connect this terminal to the external
equipment’s functional ground terminal,
potentially minimizing the noise level.
Note
This terminal is not for protective ground.
7. LAN port
Connect to a PoE+/PoE switching hub using
a LAN cable.
Tip
Amplier Rated Output is as follows.
• 15 W at PoE+ powered
• 8 W at PoE powered
8.LINK/ACTindicator(green)
Flashes when data is being sent or received
over a network.
5
6
7
8
9
10
11
12
1
2
3 4
