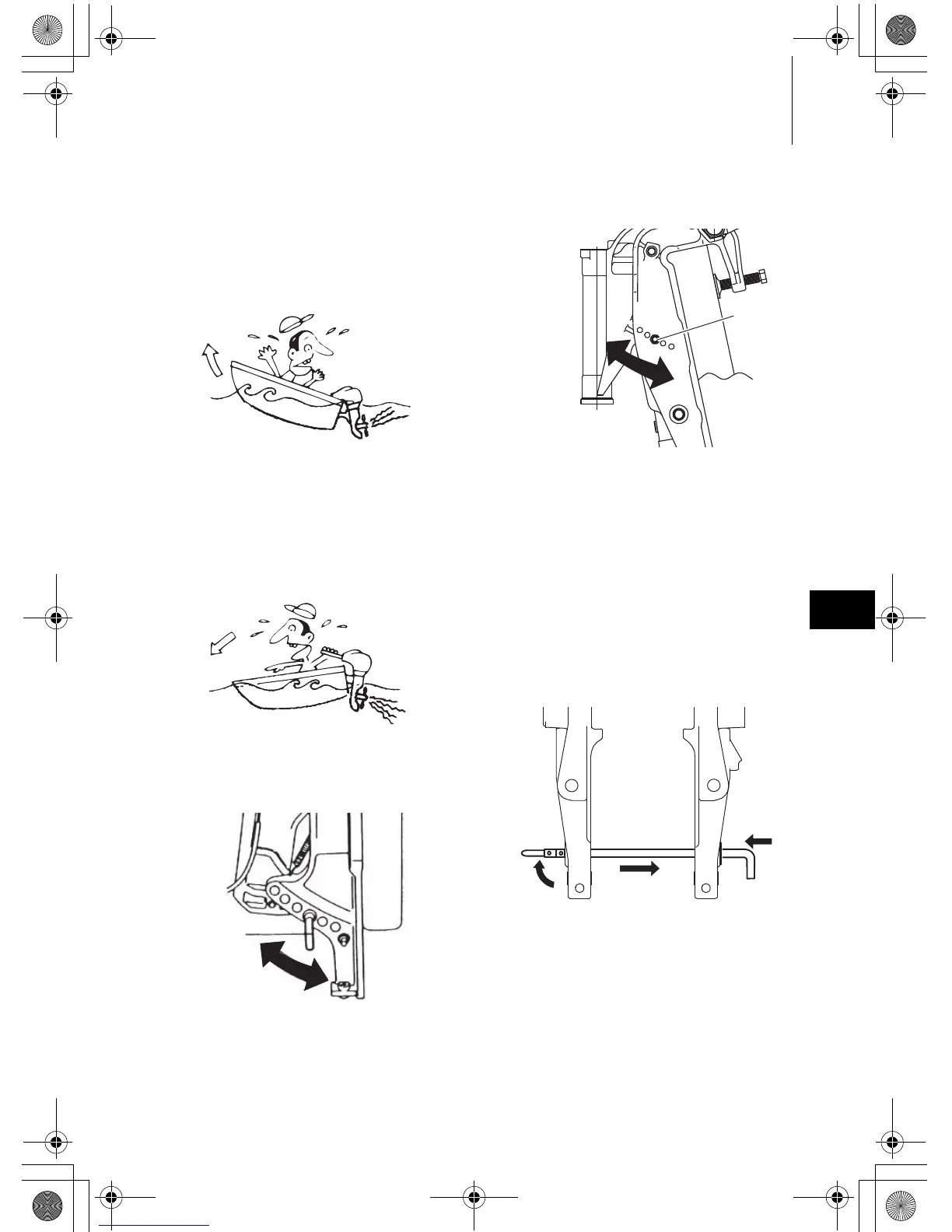

ENGINE OPERATION 45
7
ENOM00053-0
Improper trim angle (bow rises too
high)
Set the thrust rod lower if the bow of the
boat rises above horizontal.
ENOM00054-0
Improper trim angle (bow dips into the
water)
Set the thrust rod higher if the bow of the
boat is below horizontal.
Manual Tilt type
1. Thrust rod
2. Higher
3. Lower
Power Tilt type
1. Thrust rod
2. Higher
3. Lower
Trim angle adjustment (Manual tilt
type)
The transom angle adjustment
1. Stop the engine.
2. Shift into neutral.
3. Raise the outboard motor to the tilt up
position.
4. Change the thrust rod position as fol-
lowing picture.
1. Push in
2. Rise the stopper
3. Pull out
5. Reinstall the thurst rod securely.
6. Gentry lower the outboard.
ENOF00052-0
ENOF00053-0
1
3
2
ENOF00674-A
