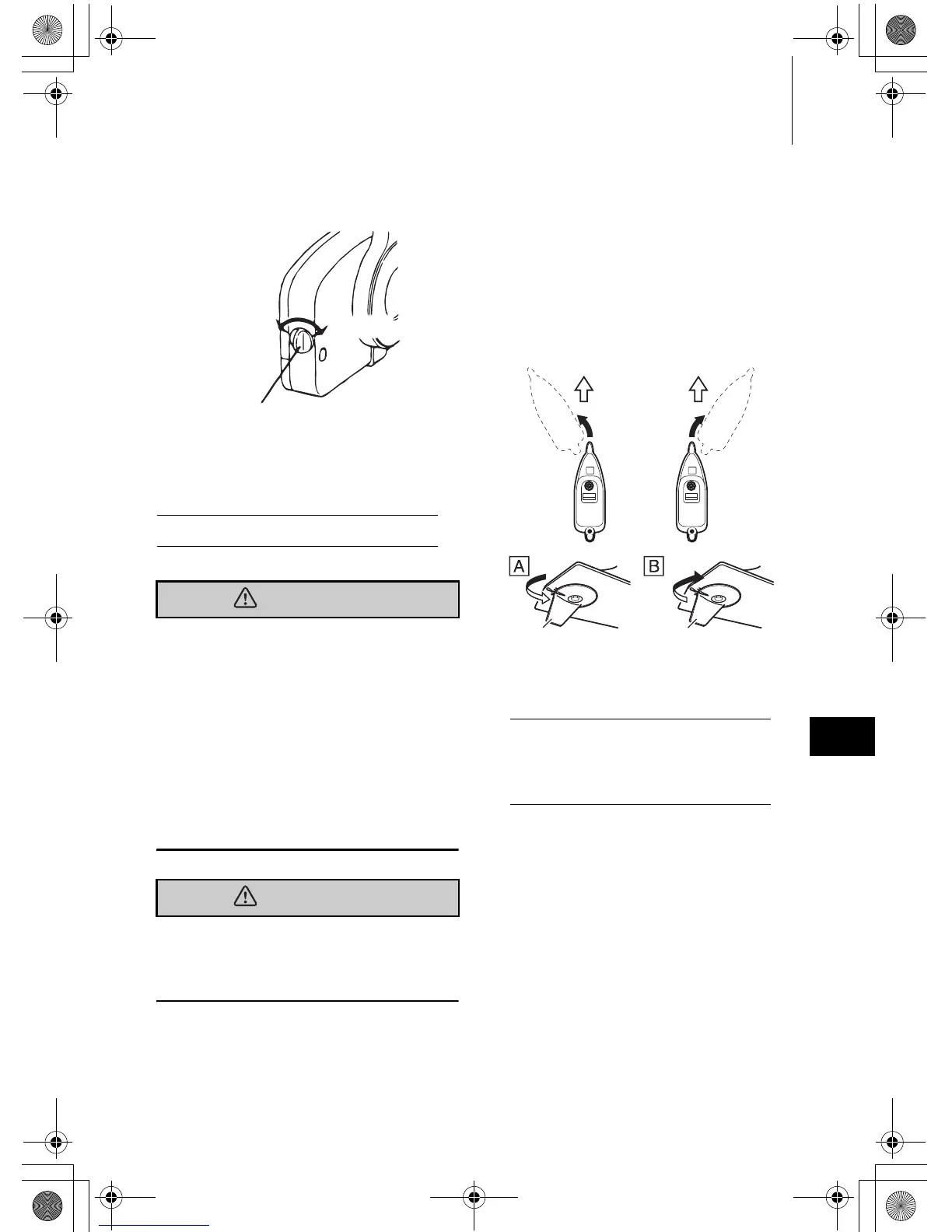

TOHATSU mfs 15D User Manual

ADJUSTMENT 55
9
Side mount type
1. Throttle friction adjustment screw
A. Lighter
B. Heavier
ENOM00076-0
ENOW00076-0
 Be sure that outboard motor is secured
to transom or service stand, or acciden-
tal drop or fall of outboard motor could
lead to severe personal injury.
 Be sure to lock outboard motor if it is
tilted up, or accidental fall of outboard
motor could lead to severe personal
injury.
 Do not go under outboard motor tilted
up and locked, or accidental fall of out-
board motor could lead to severe per-
sonal injury.
ENOW00075-0
Inappropriate adjustment of trim tab could
cause steering difficulty. After installing or
readjusting trim tab, check if steering fic-
tion is even.
If straight-line cruising can not be
achieved, adjust the trim tab located under
the anti-ventilation plate.
 If the boat veers toward the left direct
the trim tab towards A (left from rear of
boat).
 If the boat veers toward the right direct
the trim tab towards B (right from rear of
boat).
1. Trim tab
ENON00022-A
Notes
 After adjustment securely tighten the
trim tab fixing bolt.
 Check for looseness of the bolt and the
trim tab at regular intervals.
4. Trim tab adjustment
WARNING
WARNING
B
A
1
ENOF00078-0
1
1
ENOF00912-A
