ENGINE OPERATION46
7
Trim angle adjustment (Power tilt type)
The transom angle adjustment
1. Stop the engine
2. Operate the Power Tilt switch and
raise the outboard motor to the tilt up
position.
3. Lock the tilt with the Tilt stopper.

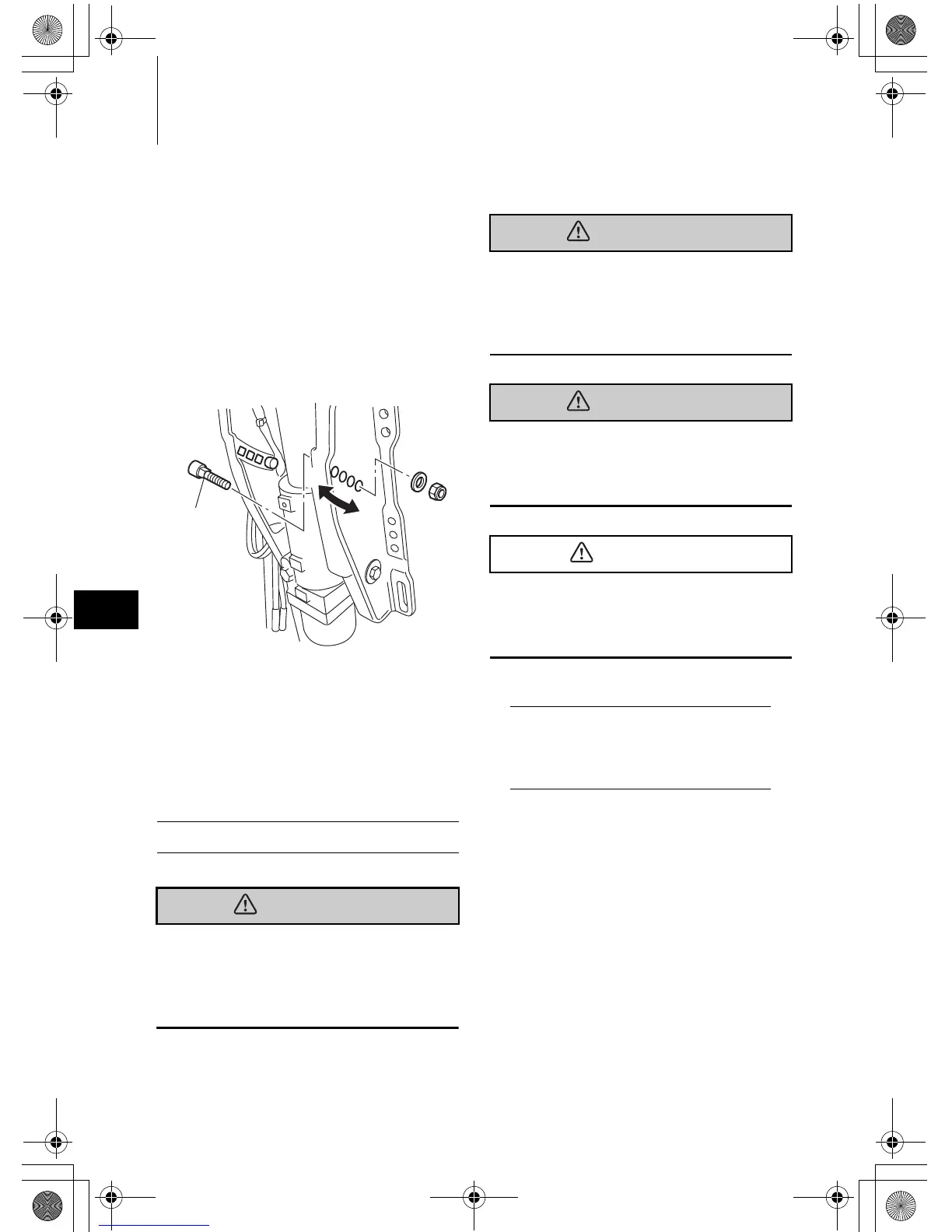

4. Change the trim lock pin position as
following picture.
1. Tilt lock pin
2. Higher
3. Lower
5. Reinstall the tilt lock pin securely.
6. Operate the Power Tilt switch and
lower the outboard.
ENOM00060-B
ENOW00055-0
Do not tilt up or down outboard motor
when swimmer(s) or passenger is near to
prevent them from being caught between
outboard motor body and clamp bracket in
case the outboard motor body falls.
ENOW00048-0
When tilting up or down, be careful not to
place your hand between the swivel
bracket and the stern bracket.
Be sure to tilt the outboard motor down
slowly.
ENOW00056-A
When tilting up outboard motor with fuel
joint for over a few minutes, be sure to dis-
connect fuel hose, or fuel may leak, poten-
tially catching fire.
ENOW00057-0
Do not tilt up outboard motor while engine
operates, or no cooling water may be fed,
leading to engine seizure due to overheat-
ing.
ENON00921-0
Note
Before tilting the outboard motor up, after
stopping the motor leave it in the running
position for about a minute to allow water to
drain from inside the engine.
ENOM00062-0
Manual Tilt type
Tilt up
Push the reverse lock lever down until it
stops. (This is the tilt up position.) Now, tilt
the outboard motor all the way up until it is
locked in place.
8. Tilt up and down
WARNING
To Next Page
