INSTALLATION22
5
ENOM00840-0
ENOW00850-0

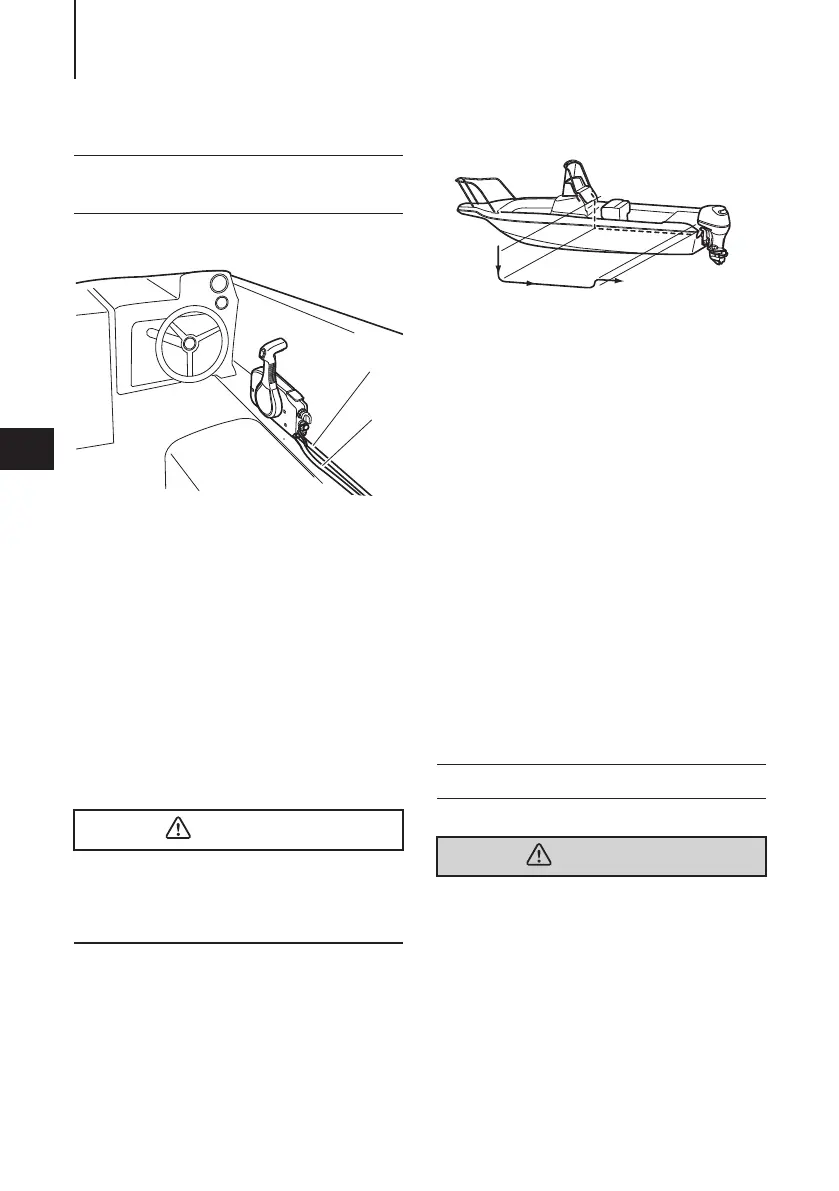

Remote control box location
1. Shift cable
2. Throttle cable
3. Cable harness B
Install the remote control box in a posi-
tion where it is easy to reach and operate
the controls.
Make sure there are no obstacles that
can interfere with the operation of the
remote control cable.
ENOW00850-0
Remote control cable length
ENOW00100-A
Be careful not to loop the remote control
cables to a diameter of 406 mm (16 inches)
or less. Otherwise, it affects the service life
of the cable.
Measure the distance from the remote
control box to the outboard motor where
the remote control cable should be
routed.
Prepare a cable that is 300-450mm (11.8-
17.7in) longer than the measured dis-
tance.
Temporarily pull the cable along the
intended cable route to check its length
is sufficient.
Connect the remote control cable to the
engine, then run the cable to the remote
control box, making sure it is not sharply
bent, too taut and free from obstructions
that could interfere with steering.
ENOM00029-A
ENOW00012-0
Battery electrolyte contains sulfuric acid
and thus is hazardous, causing a burn if it
comes in contact with your skin, or poison-
ous if swallowed.
Keep battery and electrolyte away from
reach of children
When handling the battery, be sure to:
z Read all warnings shown on the battery
case
z Prevent electrolyte from coming in con-
tact with any part of your body. Contact
3. Remote control device
installation (option)
CAUTION
4. Battery installation
WARNING
ENOF00842-0
To Next Page
