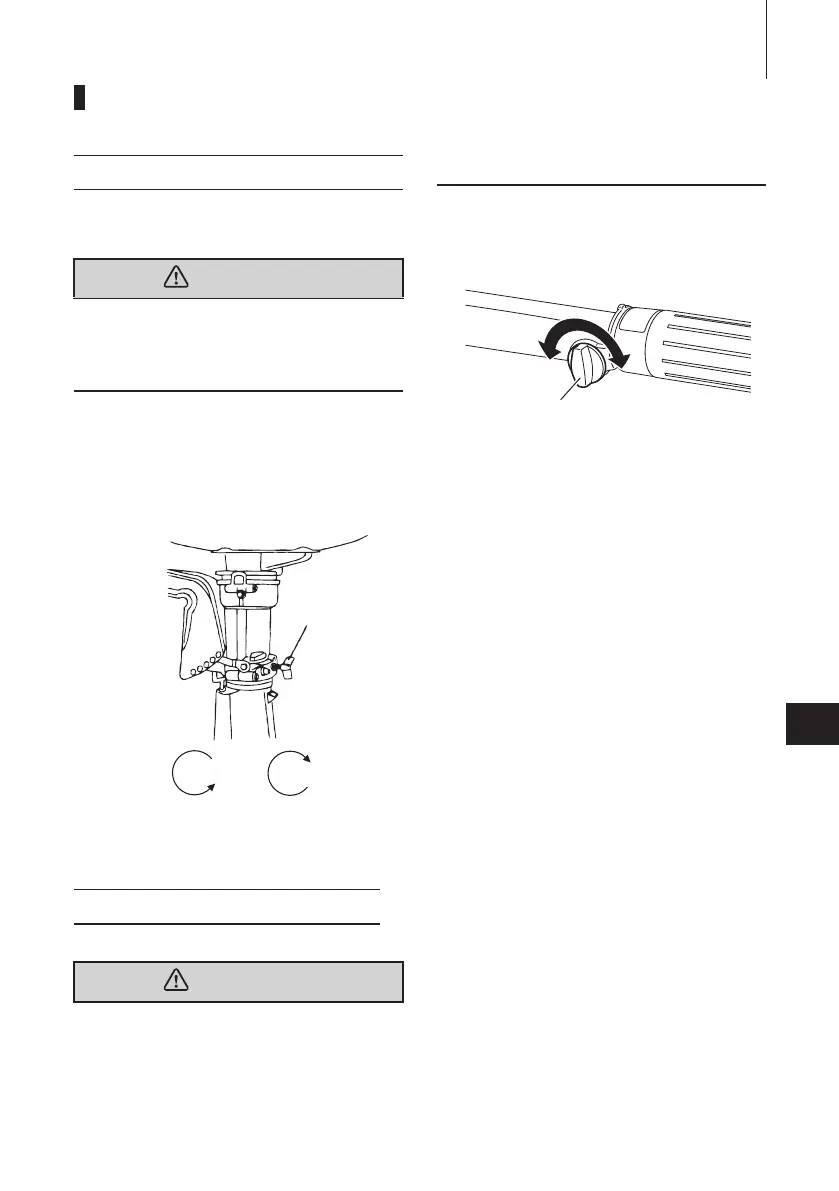

ADJUSTMENT
ENOM00073-0
Tiller handle type
ENOW00074-A
Do not overtighten the steering friction lever
it could result in difficulty of movement
resulting in the loss of control causing an
accident and could lead to severe injury.
Adjust this lever to achieve the desired
steering friction (drag) on the tiller han-
dle. Move lever towards (A) to tighten
friction and move lever towards (B) to
loosen friction.
1. Steering friction lever
2. Lighter
3. Heavier
EENOM00074-A
ENOW00074-B
Do not overtighten the throttle adjustment
screw or it could result in difficulty of move-
ment resulting in the loss of control causing
an accident and could lead to severe injury.
Friction adjustment of the throttle grip
can be made with the throttle adjustment
screw.
1. Heavier
2. Lighter
3. Throttle friction adjustment screw
1. Steering friction
WARNING
2. Throttle grip friction
WARNING
